Specifications
Description

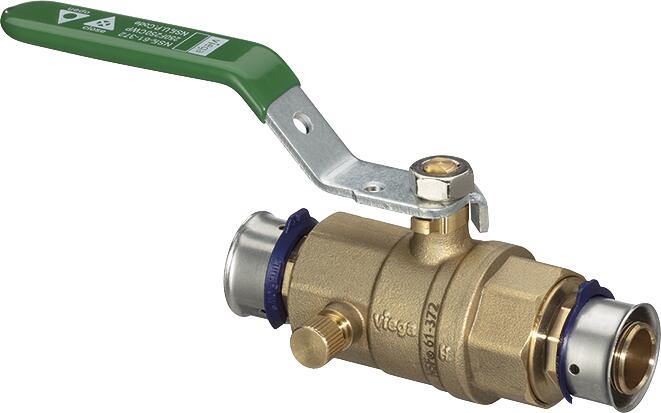

The Viega 87915 is a 3/4" zero-lead ball valve from Viega's PureFlow Press system with PEX Press x PEX Press ends for PEX tubing. It features a brass body. Rated to 0°F to 250°F. This model is certified lead-free for potable-water installations.
Features
- Zero Lead
- For potable water installations
- Brass
- Press connection
- Full port, with drain port
- Components EPDM sealing element, non-lockable metal handle, stainless steel ball
Common Questions
- What pipe and press tool does this valve need?
- It installs with a Viega PureFlow press jaw or ring, on PEX tubing.
- Which sealing element is in the press ends?
- The press connections seal with EPDM sealing elements, which Viega rates from 0°F to 250°F.
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
Specifications
- Type: Ball Valve
- Size: 3/4"
- Connection: PEX
- Body Material: Brass
- Application: Domestic Water
- Country of Origin: China
- MPN: 87915
- Temperature: 0°F to 250°F
- Lead-Free: Yes
- Press Profile: Viega PureFlow
- Sealing Element: EPDM
- For Use On: PEX
- End Connections: PEX Press x PEX Press
- Ball Material: Stainless Steel
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 87915 | China |
Dimensions
| Size Nominal | 3/4" | End Connection | PEX |
Details
| Series | PureFlow | Device Type | Ball Valve |
| Lead Free | Yes | Body Material | Brass |
| Application | Domestic Water | Port Style | Full |
| Max Temp °F | 250.0 °F | Min Temp °F | 0.0 °F |
| Ball Material | Stainless Steel | Work material | PEX |
| End combination | PEX Press x PEX Press | — | — |
