Specifications
Description

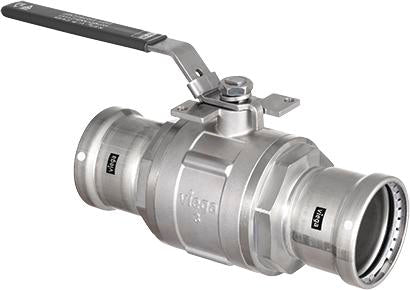

The Viega 86815 is a 4" ball valve from Viega's MegaPress 316 system with Press x Press ends for stainless steel pipe (IPS sizes). It features a stainless steel 316 body. Rated to 0°F to 250°F.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 stainless steel pipe
- Stainless steel 316
- Press connection
- Full port
- Components EPDM sealing elements, lockable metal handle, stainless steel ball and stem
Common Questions
- What pipe and press tool does this valve need?
- It installs with a MegaPress XL press jaw or ring, on stainless steel pipe (IPS sizes).
- Which sealing element is in the press ends?
- The press connections seal with EPDM sealing elements, which Viega rates from 0°F to 250°F.
Specifications
- Type: Ball Valve
- Size: 4"
- Connection: Press
- Body Material: Stainless steel 316
- Country of Origin: China
- MPN: 86815
- Temperature: 0°F to 250°F
- Press Profile: MegaPress XL
- Size Basis: IPS
- Sealing Element: EPDM
- For Use On: Stainless Steel
- End Connections: Press x Press
- Ball Material: Stainless Steel
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 86815 | China |
Dimensions
| Size Nominal | 4" | End Connection | Press |
Details
| Series | MegaPress 316 | Device Type | Ball Valve |
| Body Material | Stainless steel 316 | Port Style | Full |
| Max Temp °F | 250.0 °F | Min Temp °F | 0.0 °F |
| Ball Material | Stainless Steel | Work material | Stainless Steel |
| End combination | Press x Press | — | — |
