Specifications
Description

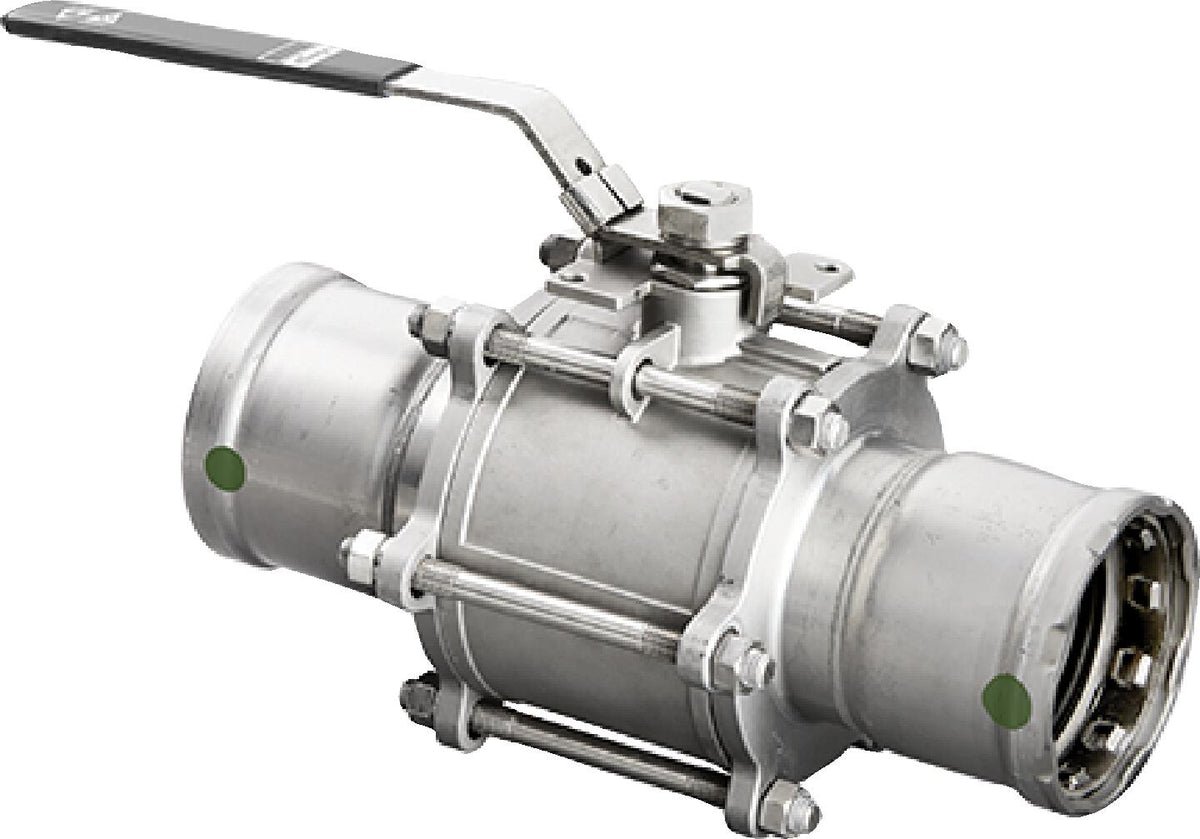

The Viega 86665 is a 2-1/2" 3-piece ball valve from Viega's MegaPress 316 system with Press x Press ends for stainless steel pipe (IPS sizes). It features a 316 stainless steel body. Rated to 0°F to 250°F.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 stainless steel pipe, inline repairable maintenance
- 316 stainless steel
- Press connections
- Components EPDM sealing elements, 304 locking handle, stainless steel ball, ISO5211 mounting plate
Common Questions
- What pipe and press tool does this valve need?
- It installs with a MegaPress XL press jaw or ring, on stainless steel pipe (IPS sizes).
- Which sealing element is in the press ends?
- The press connections seal with EPDM sealing elements, which Viega rates from 0°F to 250°F.
- Why choose a 3-piece ball valve?
- The center section can be removed for service without cutting the press ends out of the line.
Specifications
- Type: Ball Valve
- Size: 2-1/2"
- Connection: Press
- Body Material: 316 stainless steel
- Country of Origin: China
- MPN: 86665
- Temperature: 0°F to 250°F
- Press Profile: MegaPress XL
- Size Basis: IPS
- Sealing Element: EPDM
- For Use On: Stainless Steel
- End Connections: Press x Press
- Valve Construction: 3-Piece
- Ball Material: Stainless Steel
- Actuator Mounting: ISO 5211
Product Information
| SKU | Country of Origin |
|---|---|
| 86665 | China |
Dimensions
| Size Nominal | 2-1/2" | End Connection | Press |
Details
| Series | MegaPress 316 | Device Type | Ball Valve |
| Body Material | 316 stainless steel | Max Temp °F | 250.0 °F |
| Min Temp °F | 0.0 °F | Body Construction | 3-Piece |
| Ball Material | Stainless Steel | Actuator Mount | ISO 5211 |
| Work material | Stainless Steel | End combination | Press x Press |
Compare with similar products
| Port Style | — | — | — | — | Full
| Full
|
| Body Construction | 3-Piece
| 3-Piece
| 3-Piece
| 3-Piece
| 3-Piece
| 3-Piece
|
| Ball Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Actuator Mount | ISO 5211
| ISO 5211
| ISO 5211
| ISO 5211
| ISO 5211
| ISO 5211
|
| Series | MegaPress 316
| MegaPress 316
| MegaPress FKM
| MegaPress FKM
| ProPress
| ProPress
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Device Type | Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
|
| Size Nominal | 2-1/2"
| 4"
| 3"
| 2-1/2"
| 2"
| 1-1/2"
|
| Lead Free | — | — | — | — | Yes | Yes |
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | 316 stainless steel
| 316 stainless steel
| 316 stainless steel valve/Carbon steel press ends
| 316 stainless steel valve/Carbon steel press ends
| Silicium bronze, stainless steel 316
| Silicium bronze, stainless steel 316
|
| Max Temp °F | 250.0 °F | 250.0 °F | 284.0 °F | 284.0 °F | 250.0 °F | 250.0 °F |
| Min Temp °F | 0.0 °F | 0.0 °F | 14.0 °F | 14.0 °F | 0.0 °F | 0.0 °F |
