Specifications
Description

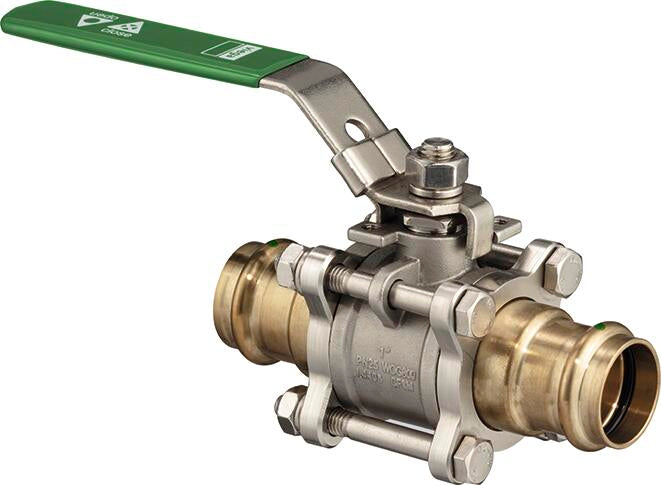

The Viega 87295 is a 1-1/2" zero-lead 3-piece ball valve from Viega's ProPress system with Press x Press ends for copper tube (CTS sizes). It features a silicium bronze, stainless steel 316 body. Rated to 0°F to 250°F. This model is certified lead-free for potable-water installations.
Features
- Smart Connect Technology, Zero Lead
- For inline repairable maintenance
- Not suitable for fuel gas application
- stainless steel body, silicon bronze press ends
- Press connection
- Full port
- Components EPDM sealing element, stainless steel ball, 304 locking handle, ISO5211 mounting plate
Common Questions
- What pipe and press tool does this valve need?
- It installs with a ProPress press jaw or ring, on copper tube (CTS sizes).
- Which sealing element is in the press ends?
- The press connections seal with EPDM sealing elements, which Viega rates from 0°F to 250°F.
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
- Why choose a 3-piece ball valve?
- The center section can be removed for service without cutting the press ends out of the line.
Specifications
- Type: Ball Valve
- Size: 1-1/2"
- Connection: Press
- Body Material: Silicium bronze, stainless steel 316
- Country of Origin: China
- MPN: 87295
- Temperature: 0°F to 250°F
- Lead-Free: Yes
- Press Profile: ProPress
- Size Basis: CTS
- Sealing Element: EPDM
- For Use On: Copper
- End Connections: Press x Press
- Valve Construction: 3-Piece
- Ball Material: Stainless Steel
- Actuator Mounting: ISO 5211
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 87295 | China |
Dimensions
| Size Nominal | 1-1/2" | End Connection | Press |
Details
| Series | ProPress | Device Type | Ball Valve |
| Lead Free | Yes | Body Material | Silicium bronze, stainless steel 316 |
| Port Style | Full | Max Temp °F | 250.0 °F |
| Min Temp °F | 0.0 °F | Body Construction | 3-Piece |
| Ball Material | Stainless Steel | Actuator Mount | ISO 5211 |
| Work material | Copper | End combination | Press x Press |
Compare with similar products
| Port Style | Full
| — | — | — | Full
| Full
|
| Body Construction | 3-Piece
| 3-Piece
| 3-Piece
| 3-Piece
| 3-Piece
| 3-Piece
|
| Ball Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Actuator Mount | ISO 5211
| ISO 5211
| ISO 5211
| ISO 5211
| ISO 5211
| ISO 5211
|
| Series | ProPress
| MegaPress 316
| MegaPress FKM
| MegaPress FKM
| ProPress
| ProPress
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Device Type | Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
|
| Size Nominal | 1-1/2"
| 4"
| 3"
| 2-1/2"
| 2"
| 1"
|
| Lead Free | Yes | — | — | — | Yes | Yes |
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Silicium bronze, stainless steel 316
| 316 stainless steel
| 316 stainless steel valve/Carbon steel press ends
| 316 stainless steel valve/Carbon steel press ends
| Silicium bronze, stainless steel 316
| Silicium bronze, stainless steel 316
|
| Max Temp °F | 250.0 °F | 250.0 °F | 284.0 °F | 284.0 °F | 250.0 °F | 250.0 °F |
| Min Temp °F | 0.0 °F | 0.0 °F | 14.0 °F | 14.0 °F | 0.0 °F | 0.0 °F |
