Specifications
Description

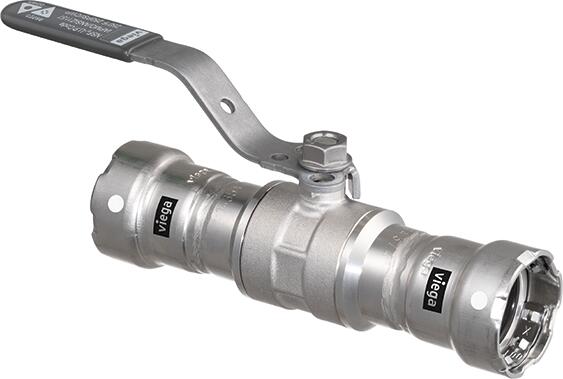

The Viega 28965 is a 1-1/2" ball valve from Viega's MegaPress FKM system for steel pipe (IPS sizes). It features a carbon steel body. Rated to 14°F to 284°F.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Not suitable for fuel gas application
- Carbon steel
- Full port
- Components Stainless steel ball, FKM sealing elements, lockable metal handle
Common Questions
- What pipe and press tool does this valve need?
- It installs with a MegaPress press jaw or ring, on steel pipe (IPS sizes).
- Which sealing element is in the press ends?
- The press connections seal with FKM sealing elements, which Viega rates from 14°F to 284°F.
Specifications
- Type: Ball Valve
- Size: 1-1/2"
- Connection: Press
- Body Material: Carbon steel
- Country of Origin: China
- MPN: 28965
- Temperature: 14°F to 284°F
- Press Profile: MegaPress
- Size Basis: IPS
- Sealing Element: FKM
- For Use On: Steel
- Ball Material: Stainless Steel
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 28965 | China |
Dimensions
| Size Nominal | 1-1/2" | End Connection | Press |
Details
| Series | MegaPress FKM | Device Type | Ball Valve |
| Body Material | Carbon steel | Port Style | Full |
| Max Temp °F | 284.0 °F | Min Temp °F | 14.0 °F |
| Ball Material | Stainless Steel | Work material | Steel |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| Full
|
| Ball Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Series | MegaPress FKM
| ProPress
| ProPress
| ProPress
| ProPress
| ProPress
|
| Country Of Origin | China
| China
| China
| Germany
| Germany
| China
|
| Device Type | Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
|
| Size Nominal | 1-1/2"
| 2"
| 1-1/2"
| 2"
| 1-1/2"
| 3/4"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | Press
| — | — | Press
| Press
| Press
|
| Body Material | Carbon steel
| Silicium bronze
| Silicium bronze
| Silicium bronze
| Silicium bronze
| Silicium bronze, brass
|
| Application | — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 284.0 °F | — | — | 250.0 °F | 250.0 °F | 250.0 °F |
| Min Temp °F | 14.0 °F | — | — | 0.0 °F | 0.0 °F | 0.0 °F |
