Specifications
Description

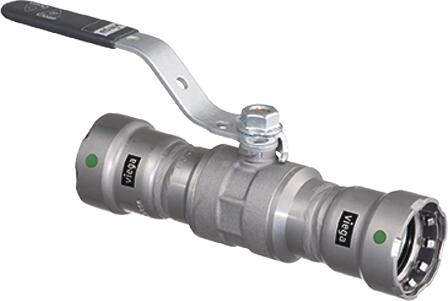

The Viega 28930 is a 1-1/4" ball valve from Viega's MegaPress system for steel pipe (IPS sizes). It features a carbon steel body. Rated to 0°F to 250°F.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Not suitable for fuel gas application
- Carbon steel
- Full port
- Components Stainless steel ball, EPDM sealing elements, lockable metal handle
Common Questions
- What pipe and press tool does this valve need?
- It installs with a MegaPress press jaw or ring, on steel pipe (IPS sizes).
- Which sealing element is in the press ends?
- The press connections seal with EPDM sealing elements, which Viega rates from 0°F to 250°F.
Specifications
- Type: Ball Valve
- Size: 1-1/4"
- Connection: Press
- Body Material: Carbon steel
- Country of Origin: China
- MPN: 28930
- Temperature: 0°F to 250°F
- Press Profile: MegaPress
- Size Basis: IPS
- Sealing Element: EPDM
- For Use On: Steel
- Ball Material: Stainless Steel
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 28930 | China |
Dimensions
| Size Nominal | 1-1/4" | End Connection | Press |
Details
| Series | MegaPress | Device Type | Ball Valve |
| Body Material | Carbon steel | Port Style | Full |
| Max Temp °F | 250.0 °F | Min Temp °F | 0.0 °F |
| Ball Material | Stainless Steel | Work material | Steel |
