Specifications
Description

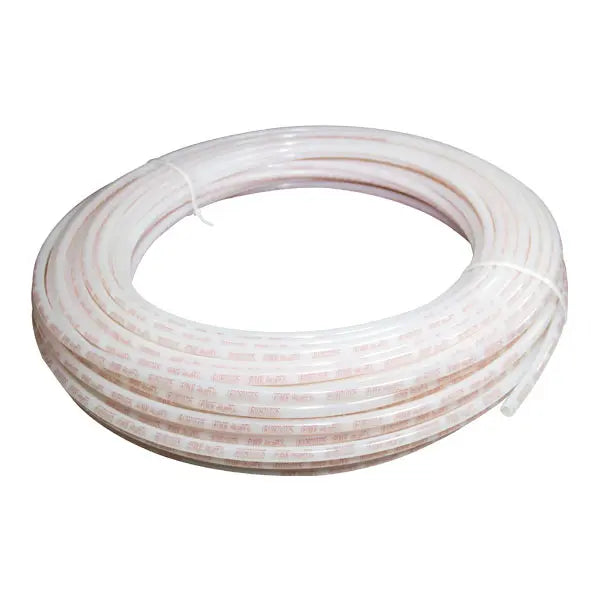

Uponor AquaPEX Red is 1/2" CTS PEX-a tubing (SDR 9), sold as one 300 ft coil, 0.625" OD x 0.475" ID. Use Uponor AquaPEX Red pipe for hot domestic potable-water distribution. Note: This pipe is not approved for use in Uponor AquaSAFE residential fire sprinkler systems. It features a PEX body. Rated to up to 200°F.
Common Questions
- Is it approved for drinking water?
- Yes. Uponor lists it to NSF/ANSI/CAN 61 with a potable-water (pw) listing.
- What pressure and temperature is it rated for?
- Uponor rates it at 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F.
Specifications
- Size: 1/2"
- Body Material: PEX
- Application: Domestic Water
- MPN: F2060500
- Temperature: up to 200°F
- Certifications: ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, ASTM F876, ASTM F877
- Product Role: Tubing Coil
- Color: Red
- Length: 300 ft
- Max Working Pressure (PSI): 160
- Pressure / Temperature Rating: 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| UNP12.300R | 673372150378 | Download |
Dimensions
| Size Nominal | 1/2" | — | — |
Details
| Series | AquaPEX | Body Material | PEX |
| Application | Domestic Water | Max Temp °F | 200.0 °F |
| Length | 3600.0 in | Max temp f note | 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F |
| Operating pressure max psi | 160.0 PSI | — | — |
Certifications & Standards
| ASTM F1960 | ASTM F2023 |
| CSA-B214 | CSA-B137.5 |
| NSF-14 | NSF-61 |
| ASTM F876 | ASTM F877 |
Compare with similar products
| Series | AquaPEX
| AquaPEX
| AquaPEX
| AquaPEX
| AquaPEX
| AquaPEX
|
| Spec Sheet | ||||||
| Size Nominal | 1/2"
| 1/2"
| 3/4"
| 1/2"
| 3/4"
| 1/2"
|
| Body Material | PEX
| PEX
| PEX
| PEX
| PEX
| PEX
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 200.0 °F | 200.0 °F | 200.0 °F | 200.0 °F | 200.0 °F | 200.0 °F |
| Certifications | ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, ASTM F876, ASTM F877
| ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, ASTM F876, ASTM F877
| ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, UL-1821, ASTM F876, ASTM F877
| ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, ASTM F876, ASTM F877
| ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, ASTM F876, ASTM F877
| ASTM F1960, ASTM F876, ASTM F2023, ASTM F877, CSA-B137.5, CSA-B214, NSF-61, NSF-14
|
