Specifications
Description

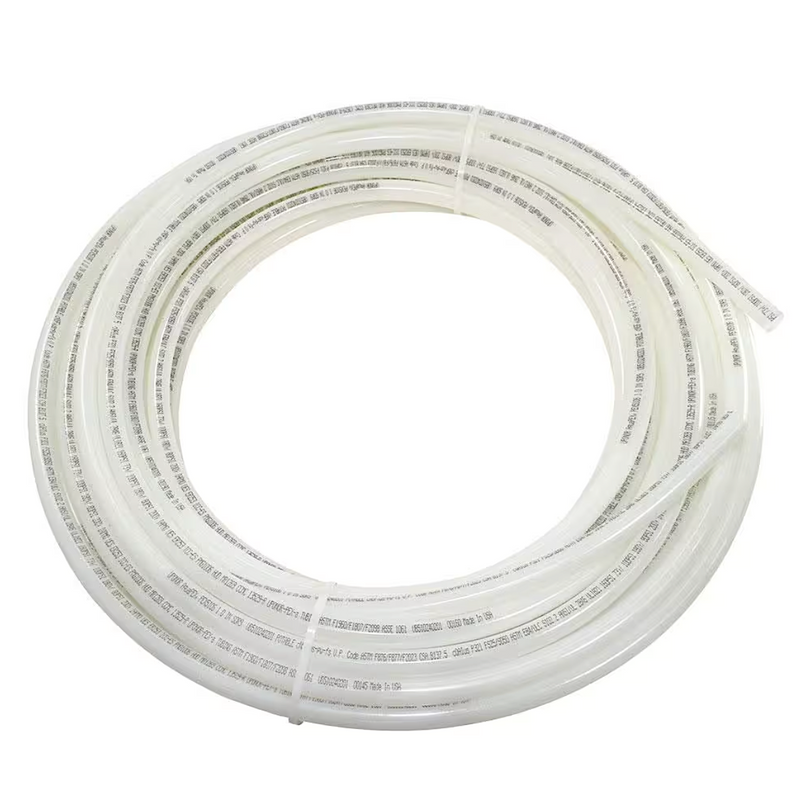

Uponor AquaPEX White is 1/2" CTS PEX-a tubing (SDR 9), sold as one 100 ft coil, 0.625" OD x 0.475" ID. Use Uponor AquaPEX® white pipe in domestic hot, cold, and hot-water recirculation systems as well as AquaSAFE™ residential fire safety systems. The pipe is available in sizes from ¼" to 3" in various coil lengths. It is also suitable for use in hydronic heating and/or cooling applications where the system contains no ferrous corrodible components or where any ferrous components are isolated from the pipe. For use in residential fire safety systems, refer to Uponor AquaPEX white coils for residential fire sprinkler systems . It features a PEX body. Rated to up to 200°F.
Common Questions
- Is it approved for drinking water?
- Yes. Uponor lists it to NSF/ANSI/CAN 61 with a potable-water (pw) listing.
- What pressure and temperature is it rated for?
- Uponor rates it at 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F.
Specifications
- Size: 1/2"
- Body Material: PEX
- Application: Domestic Water
- MPN: F1040500
- Temperature: up to 200°F
- Certifications: ASTM F1960, ASTM F876, ASTM F2023, ASTM F877, CSA-B137.5, CSA-B214, NSF-61, NSF-14
- Product Role: Tubing Coil
- Color: White
- Length: 100 ft
- Max Working Pressure (PSI): 160
- Pressure / Temperature Rating: 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| UNP12.100W | 673372122382 | Download |
Dimensions
| Size Nominal | 1/2" | — | — |
Details
| Series | AquaPEX | Body Material | PEX |
| Application | Domestic Water | Max Temp °F | 200.0 °F |
| Length | 1200.0 in | Max temp f note | 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F |
| Operating pressure max psi | 160.0 PSI | — | — |
Certifications & Standards
| ASTM F1960 | ASTM F876 |
| ASTM F2023 | ASTM F877 |
| CSA-B137.5 | CSA-B214 |
| NSF-61 | NSF-14 |
Compare with similar products
| Series | AquaPEX
| AquaPEX
| AquaPEX
| AquaPEX
| AquaPEX
| AquaPEX
|
| Spec Sheet | ||||||
| Size Nominal | 1/2"
| 3/4"
| 1/2"
| 1-1/2"
| 1-1/4"
| 1"
|
| Body Material | PEX
| PEX
| PEX
| PEX
| PEX
| PEX
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 200.0 °F | 200.0 °F | 200.0 °F | 200.0 °F | 200.0 °F | 200.0 °F |
| Certifications | ASTM F1960, ASTM F876, ASTM F2023, ASTM F877, CSA-B137.5, CSA-B214, NSF-61, NSF-14
| ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, ASTM F876, ASTM F877
| ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, ASTM F876, ASTM F877
| ASTM F1960, ASTM F876, ASTM F2023, ASTM F877, CSA-B137.5, CSA-B214, NSF-61, NSF-14
| ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, UL-1821, ASTM F876, ASTM F877
| ASTM F1960, ASTM F2023, CSA-B214, CSA-B137.5, NSF-14, NSF-61, UL-1821, ASTM F876, ASTM F877
|
