Description

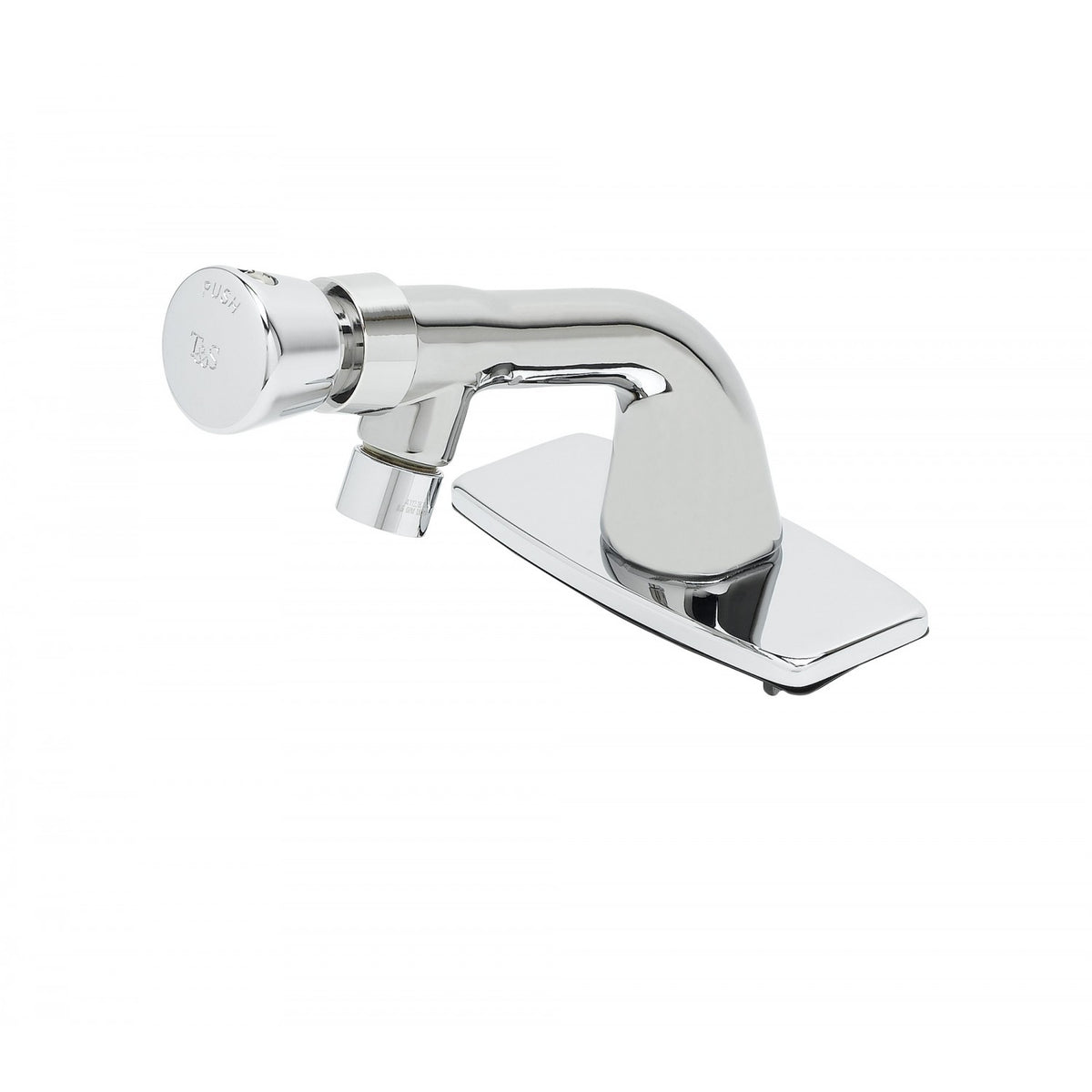

The T&S Brass B-0805-VR-VF05 is a single-hole deck-mount metering faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- Single hole, single temperature deck mount faucet w/ polished chrome plated brass body
- 0.5 GPM non-aerated spray device, Series 7 (B-0199-07-N05)
- Metering cartridge
- Adjustable metering cycle, 10 to 30 seconds
- Blank push button cap w/ vandal resistant screw
- 1/2” NPSM male inlet with coupling nut
- 6” chrome deck plate with 1" locking studs on 4" centers
- Deck Gasket & Mounting Hardware
- Material: Polished chrome plated brass body and deck plate, chrome plated metal push button
Common Questions
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 1/2"
- Connection: NPSM
- Connection Gender: Male
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0805-VR-VF05
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: Single-Hole
- Faucet Holes: 1
- Flow Rate (GPM @ 60 psi): 0.5
- Outlet: Spray (Non-Aerating)
- Cartridge: Metering
- Handle Style: Push Button
- Number of Handles: 1
- Vandal Resistant: Yes
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0805-VR-VF05 | 671262767101 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
| Connection Gender | Male | — | — |
Details
| Series | B-0805 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Coating | Polished Chrome |
| Flow rate gpm | 0.5 GPM | Handle style | Push Button |
| Hole count | 1 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Operating pressure min psi | 20 PSI |
| Vandal resistant | Yes | Cartridge type | Metering |
| Centers | Single-Hole | Handle count | 1 |
| Outlet type | Spray (Non-Aerating) | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
