Specifications
Description

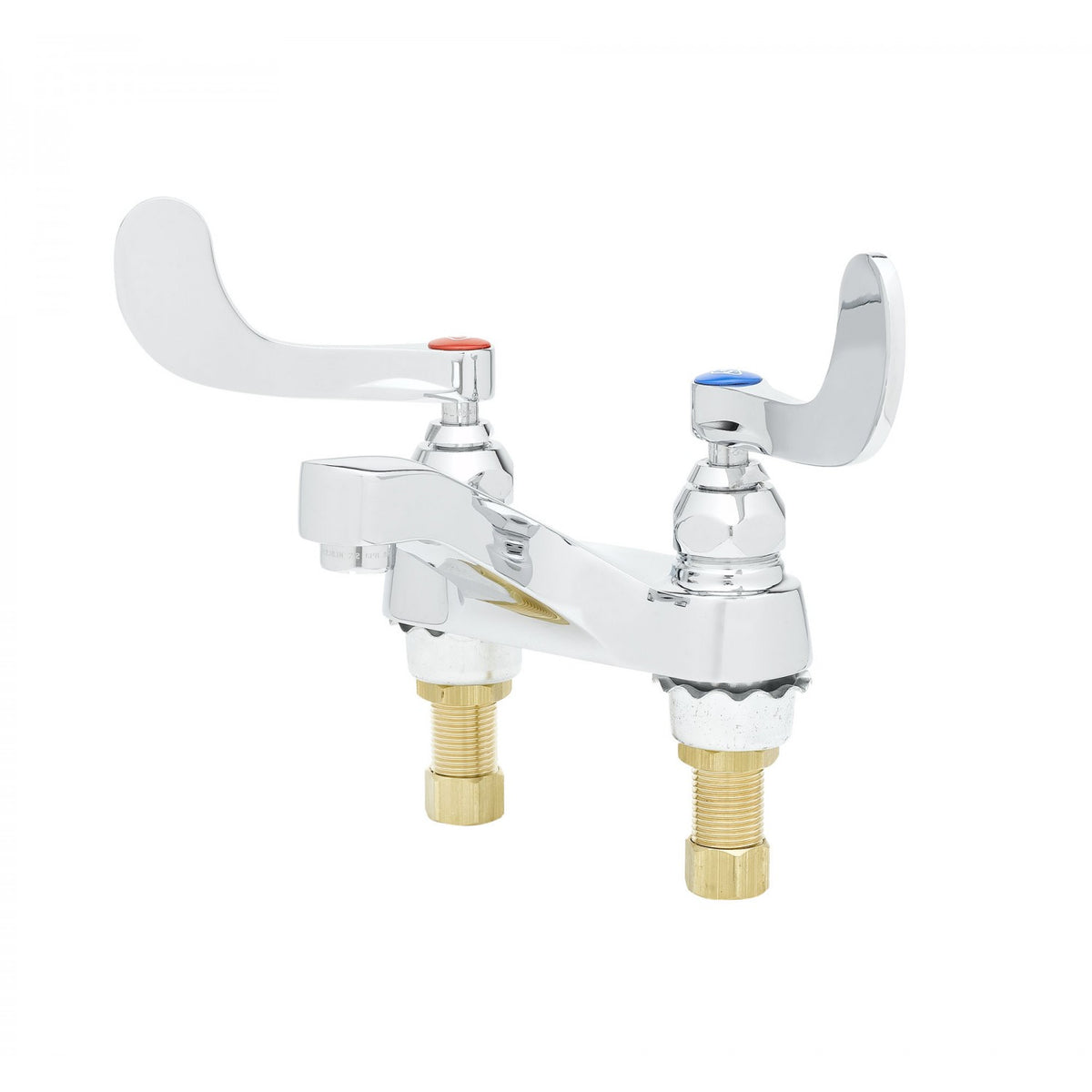

The T&S Brass B-0890 is a 4" deck-mount lavatory faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- 4" centerset deck mount mixing faucet w/ polished chrome plated brass cast body and spout
- 2.2 GPM aerator, Series 3 (B-0199-03)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4" wrist action handles with color coded indexes
- 1/2" NPSM male inlets with coupling nuts
- Material: Polished chrome plated brass cast body & spout and chrome plated metal handles
Common Questions
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 1/2"
- Connection: NPSM
- Connection Gender: Male
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0890
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: 4"
- Spout Type: Cast
- Flow Rate (GPM @ 60 psi): 2.2
- Outlet: Aerator
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Wristblade
- Handle Length (in): 4
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0890 | 671262007863 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
| Connection Gender | Male | — | — |
Details
| Series | B-0890 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Flow rate gpm | 2.2 GPM |
| Handle style | Wristblade | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Operating pressure min psi | 20 PSI |
| Cartridge type | Quarter-Turn Compression | Centers | 4" |
| Handle length in | 4.0 | Outlet type | Aerator |
| Spout type | Cast | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
