Specifications
Description

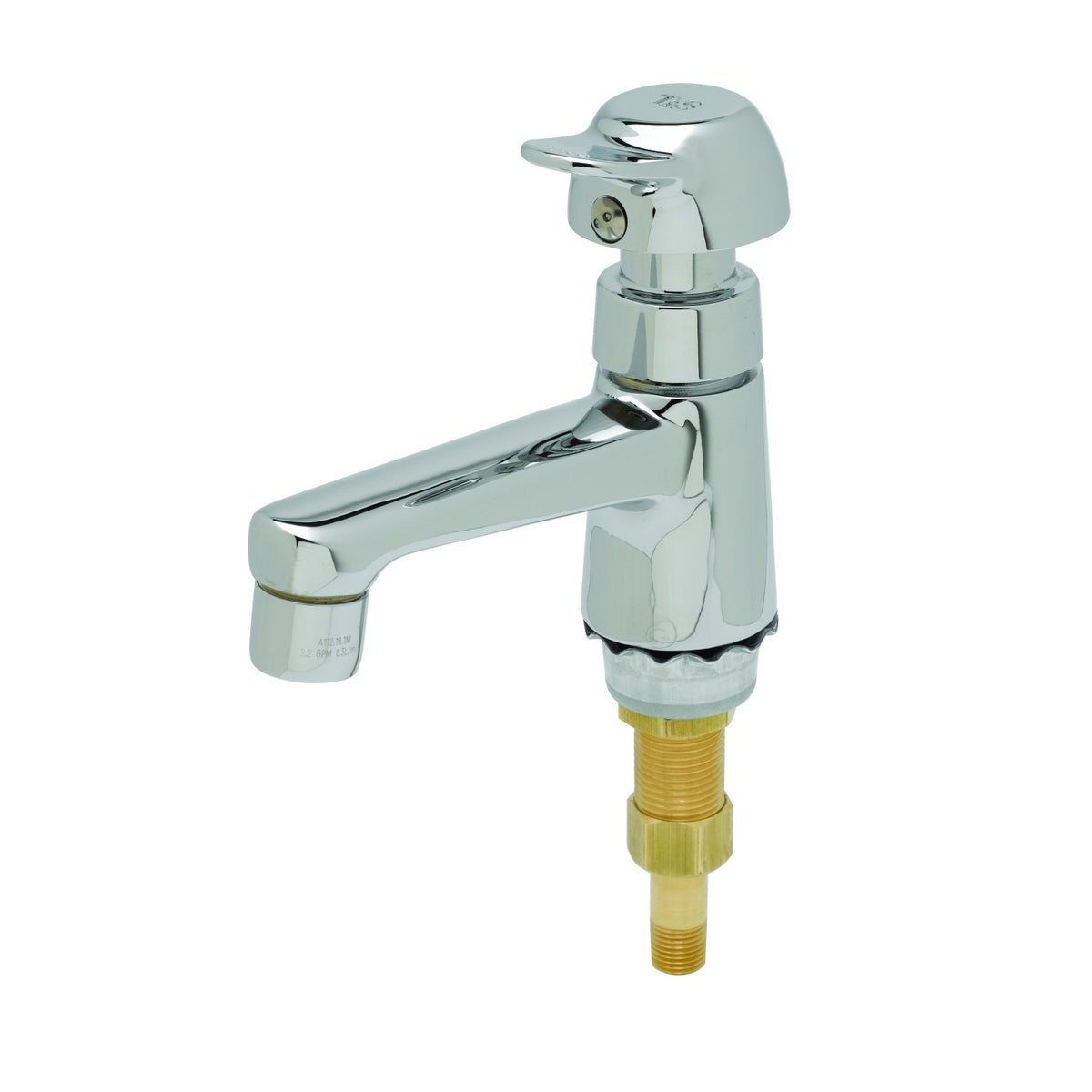

The T&S Brass B-0712-PA is a single-hole deck-mount sill faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- Single hole, single temperature deck mount faucet w/ polished chrome plated brass body
- 2.2 GPM aerator, Series 3 (B-0199-03)
- Metering cartridge
- Adjustable metering cycle, 10 to 30 seconds
- Blank pivot action handle w/ vandal resistant screw
- 1/2” NPSM male inlet
- Tailpiece and nut for 1/4” NPT connection
- Material: Polished chrome plated brass body and chrome plated pivot action handle
Common Questions
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 1/2"
- Connection: NPSM
- Connection Gender: Male
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0712-PA
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: Single-Hole
- Faucet Holes: 1
- Flow Rate (GPM @ 60 psi): 2.2
- Outlet: Aerator
- Cartridge: Metering
- Number of Handles: 1
- Vandal Resistant: Yes
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0712-PA | 671262683050 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
| Connection Gender | Male | — | — |
Details
| Series | B-0712 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Coating | Polished Chrome |
| Flow rate gpm | 2.2 GPM | Hole count | 1 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Operating pressure min psi | 20 PSI | Vandal resistant | Yes |
| Cartridge type | Metering | Centers | Single-Hole |
| Handle count | 1 | Outlet type | Aerator |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
Compare with similar products
| Series | B-0712
| B-0865
| B-0890
| B-0890
| B-0890
| B-0892
|
| Warranty | One Year (Limited)
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Inlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| NPSM
| NPSM
| NPSM
| NPSM
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
| Connection Gender | Male
| Male
| Male
| Male
| Male
| Male
|
