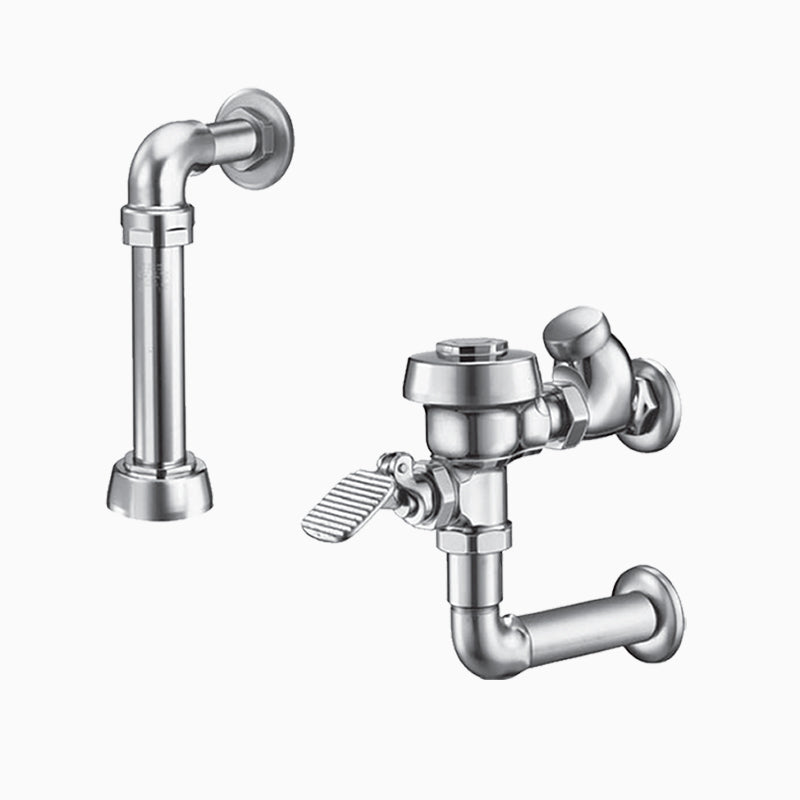

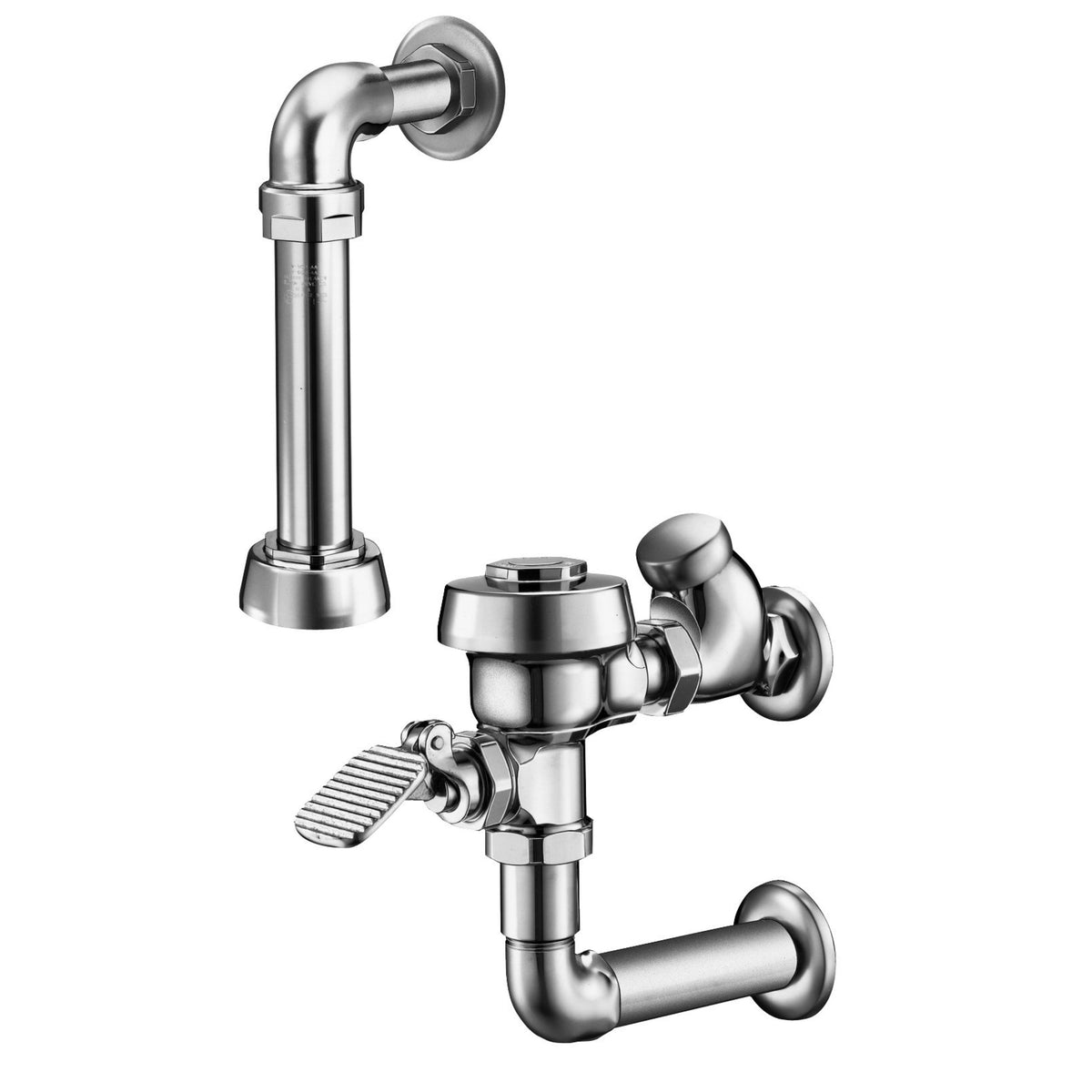

The Sloan ROYAL 310-1.6-CP is a manual diaphragm-type flush valve for a service sink. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Sloan ROYAL 310 foot pedal flushometer with CID technology for flush accuracy and dezincification-resistant brass construction.
Base configuration: no option suffixes on this model number (ROYAL 310-1.6-CP).
Features
- 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
- Varying flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by non-hold-open foot pedal (not ADA compliant)
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- MPN: ROYAL 310-1.6-CP
- Certifications: Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Service Sink
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 10"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | ROYAL 310 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | PERMEX Synthetic Rubber Diaphragm |
| Operation | Manual | Fixture Served | Service Sink |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 1.6 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 10" |
| Spud connection | Top Spud | — | — |
Certifications & Standards
| Buy American Act | IAPMO |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Service Sink
| Urinal
| Urinal
| Urinal
| Water Closet
| Water Closet
|
| Series | ROYAL 310
| REGAL 186
| GEM-2 180
| SLOAN 186
| WES 120
| WES 115
|
| Country Of Origin | — | USA
| USA
| USA
| USA
| USA
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Inlet Size | 1"
| 3/4"
| 1"
| 3/4"
| 1"
| 1"
|
| Outlet Size | 1-1/2"
| 3/4"
| 1-1/4"
| 3/4"
| 1-1/2"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| — | — | High-Chloramine-Resistant PERMEX Diaphragm
| PERMEX Synthetic Rubber Diaphragm
| PERMEX Synthetic Rubber Diaphragm
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | — | XL Sweat Solder Adapter Kit (XL), W/1", STOP
| XL Sweat Solder Adapter Kit (XL)
| — | 1.6/1.1 gpf
| 1.6/1.1 gpf
|
