Description

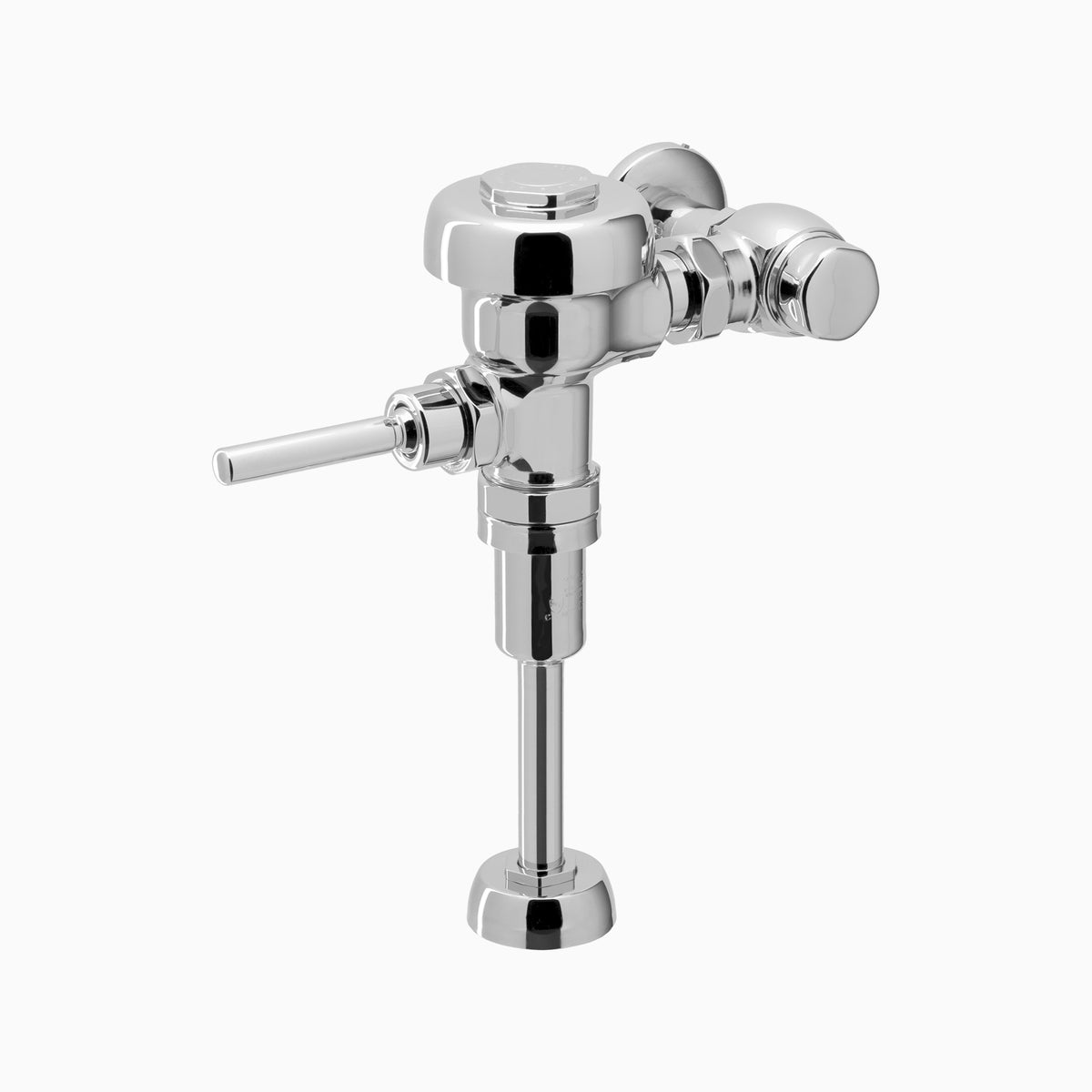

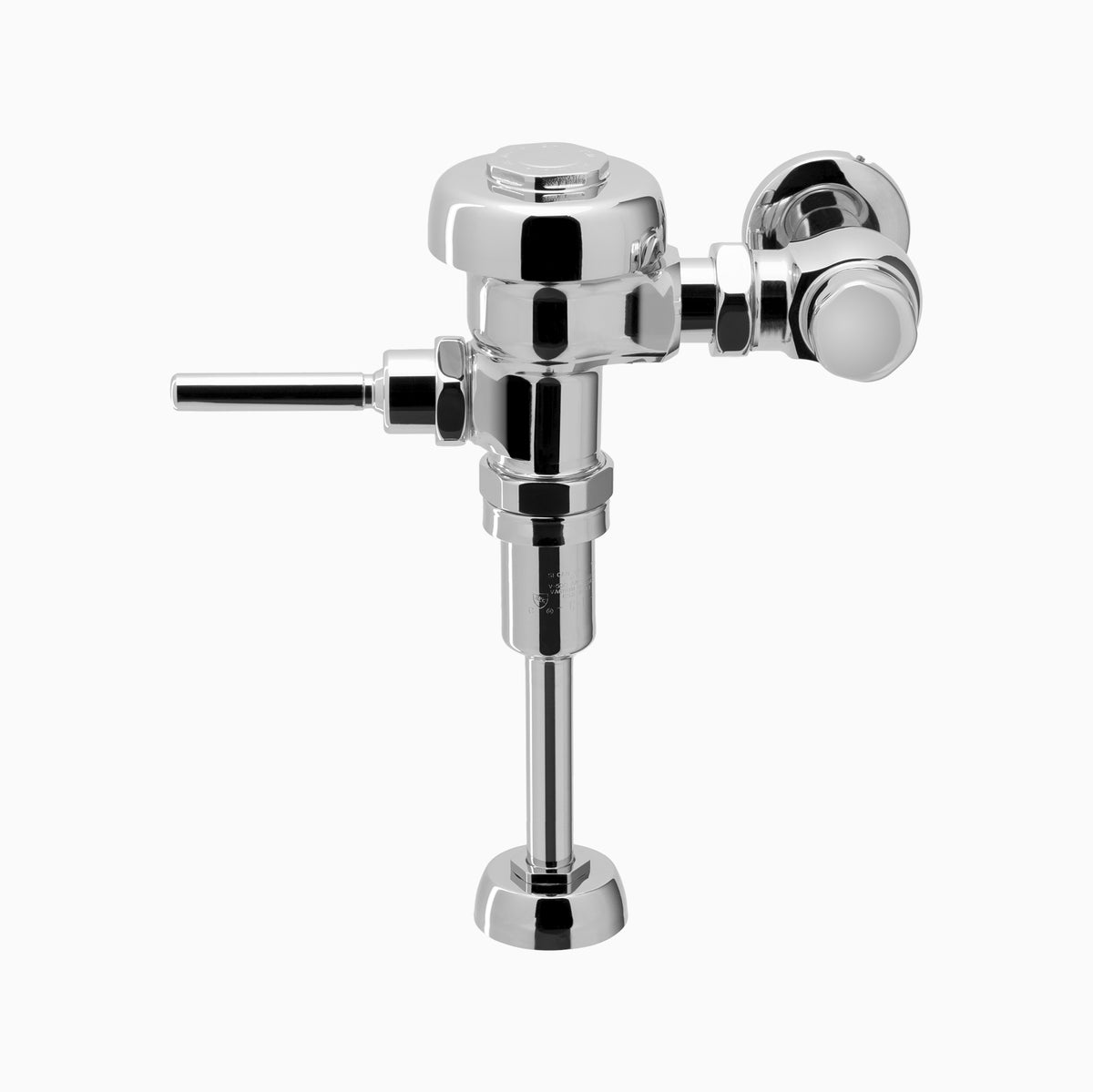

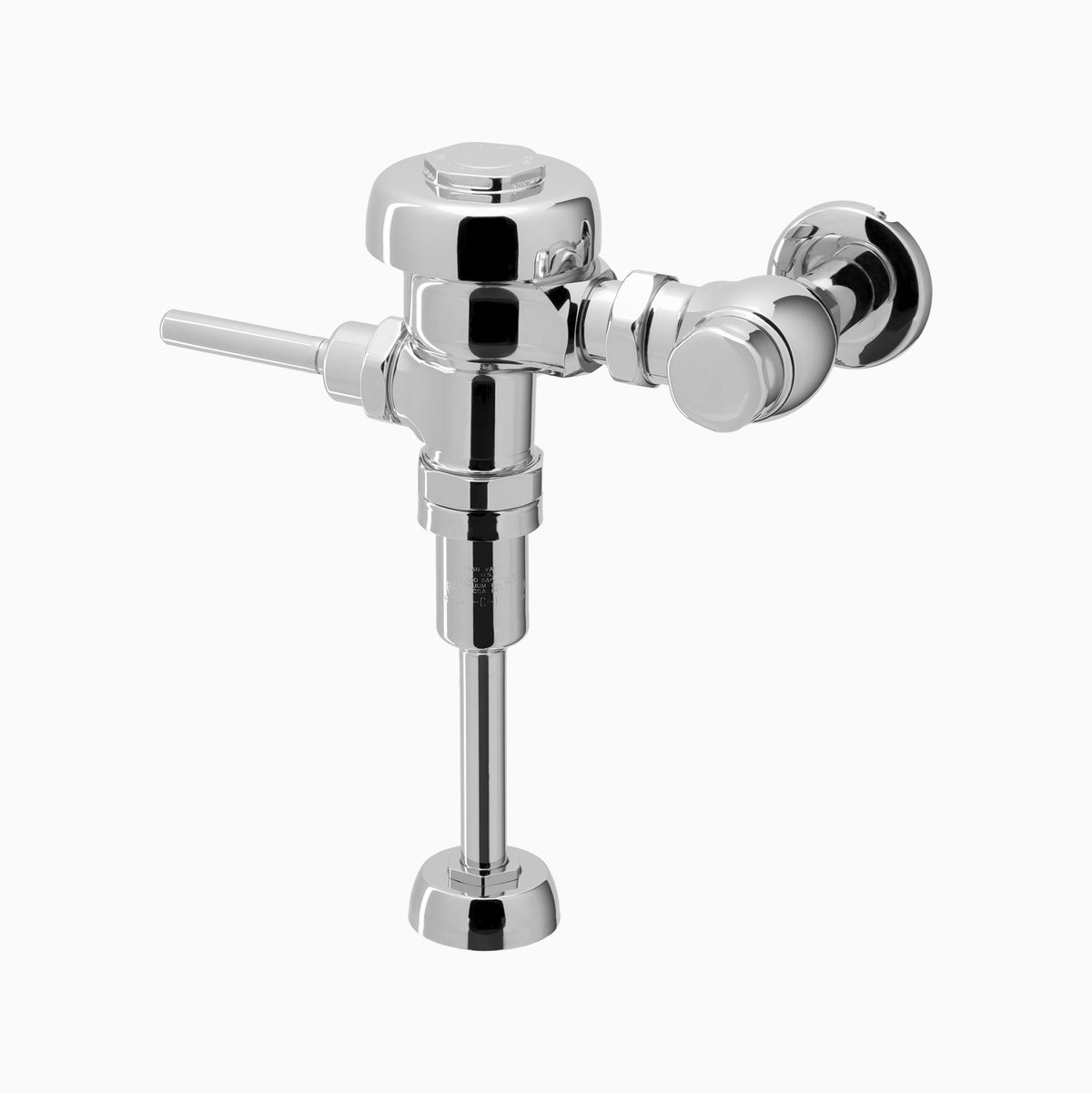

The SLOAN 186-1.5-CP is a manual diaphragm-type flush valve for a urinal. It delivers 1.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Sloan 186 exposed manual urinal flushometer available in mutliple flush volumes, CID technology, ADA compliant handle, and PERMEX diaphragm.
Base configuration: no option suffixes on this model number (SLOAN 186-1.5-CP).
Features
- 1.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
- Flush volumes start as low as 0.125 gpf/0.5 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- Country of Origin: USA
- MPN: SLOAN 186-1.5-CP
- Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 1.5
- Dual Flush: No
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | SLOAN 186 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | High-Chloramine-Resistant PERMEX Diaphragm |
| Operation | Manual | Fixture Served | Urinal |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 1.5 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 11.5" |
| Spud connection | Top Spud | Vandal resistant | Yes |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | ASSE-1037 |
Compare with similar products
| Fixture Served | Urinal
| Urinal
| Urinal
| Water Closet
| Water Closet
| Water Closet
|
| Series | SLOAN 186
| REGAL 186
| GEM-2 180
| WES 120
| WES 115
| WES 113
|
| Country Of Origin | USA
| USA
| USA
| USA
| USA
| USA
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Inlet Size | 3/4"
| 3/4"
| 1"
| 1"
| 1"
| 1"
|
| Outlet Size | 3/4"
| 3/4"
| 1-1/4"
| 1-1/2"
| 1-1/2"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| — | — | PERMEX Synthetic Rubber Diaphragm
| PERMEX Synthetic Rubber Diaphragm
| PERMEX Synthetic Rubber Diaphragm
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | — | XL Sweat Solder Adapter Kit (XL), W/1", STOP
| XL Sweat Solder Adapter Kit (XL)
| 1.6/1.1 gpf
| 1.6/1.1 gpf
| 1.6/1.1 gpf
|
