Description

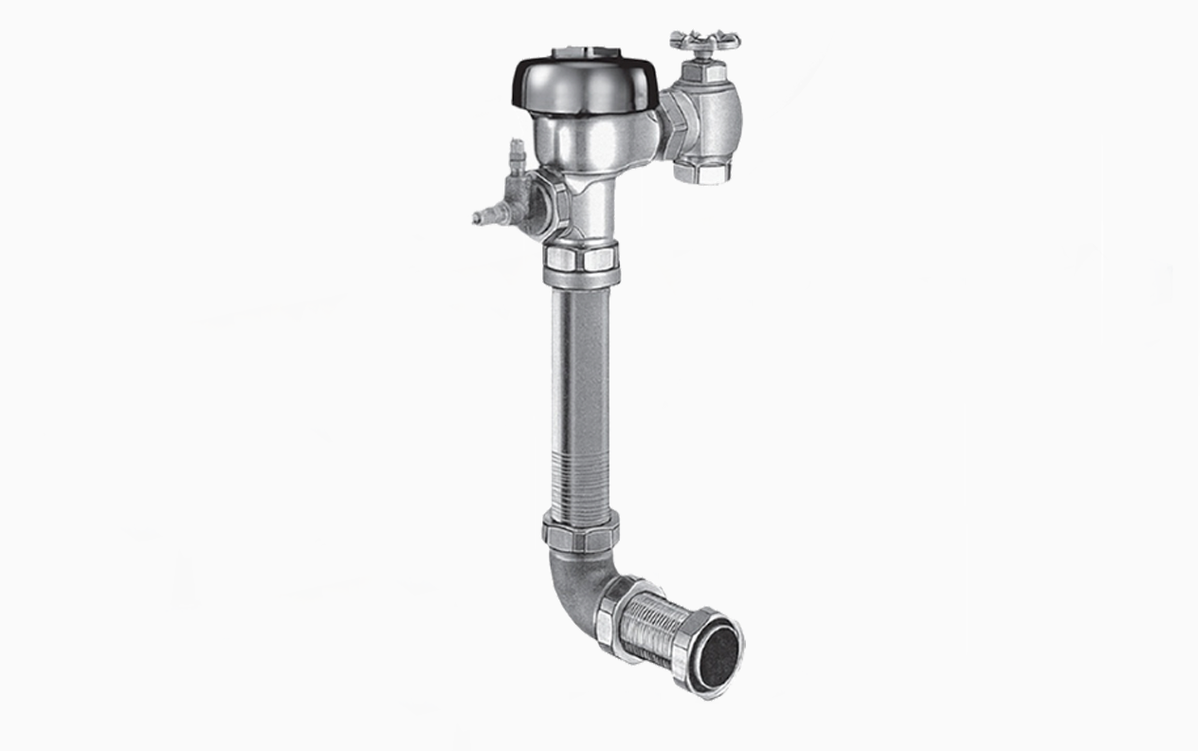

The Sloan Regal 9603-1.6 is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a concealed body. It features a high-chloramine-resistant permex diaphragm seat.
Sloan REGAL 9603 concealed manual flushometer built for rough environments, with PERMEX chloramine-resistant internals and flush volumes as low as 1.28 gpf.
Options on this configuration: XL Sweat Solder Adapter Kit (XL); MODIFIED; ACORN. Sloan model number: Regal 9603-1.6. Sloan's own price-list description: REGAL 9603-1.6 XL MODIFIED ACORN.
Features
- Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
- Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
- Choose from Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
- Choose from Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
- Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- Vandal-proof, push button operation with ADA-compliant fixture wall or panel-mount actuator options on select models
- Non-hold-open feature keeps fixture from surpassing intended water consumption
- Adjustable tailpiece accommodates various installations
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- MPN: Regal 9603-1.6
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Volume per Flush (gal): 1.6
- Vandal Resistant: Yes
Details
| Series | REGAL 9603 | Device Type | Flushometer |
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm | Operation | Manual |
| Options | XL Sweat Solder Adapter Kit (XL), MODIFIED, ACORN | Fixture Served | Water Closet |
| Body style | Concealed | Cycle volume gal | 1.6 gal |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
| Water Closet
| Water Closet
| Urinal
| Water Closet
|
| Series | REGAL 9603
| SLOAN 112
| REGAL BPW 1000
| REGAL 950
| REGAL 186
| REGAL BPW 1000
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
| — | — | — | — |
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
|
| Options | XL Sweat Solder Adapter Kit (XL), MODIFIED, ACORN
| No Control Stop (XD)
| 2" Offset (OFST), XL Sweat Solder Adapter Kit (XL), F190, &, 10"A
| Australia (AUS), Whitworth Thread (WWT), W/A145A, L/F22
| XL Sweat Solder Adapter Kit (XL), W/15", V500AA
| 2" Offset (OFST), XL Sweat Solder Adapter Kit (XL), F190
|
