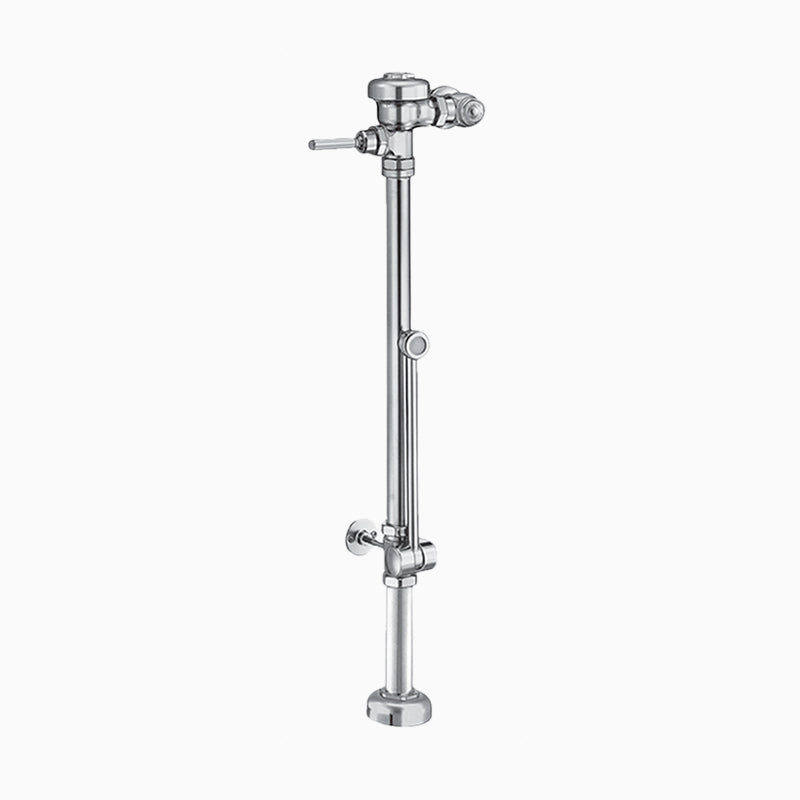

Sloan Regal BPW 1000-1.28 Exposed Manual Flushometer, 1.28 gpf, & 10"A

The Sloan Regal BPW 1000-1.28 is a manual diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with an exposed body.

Sloan REGAL BPW 1000 exposed manual bedpan washer flushometer. ASSE 1037 compliant with semi-red brass construction. ADA and BAA compliant.

Options on this configuration: 2" Offset (OFST); XL Sweat Solder Adapter Kit (XL); F190; &; 10"A. Sloan model number: Regal BPW 1000-1.28. Sloan's own price-list description: REGAL BPW 1000-1.28 XL F190 2”OFS & 10”A.

Features

• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Regal BPW 1000-1.28
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Volume per Flush (gal): 1.28
