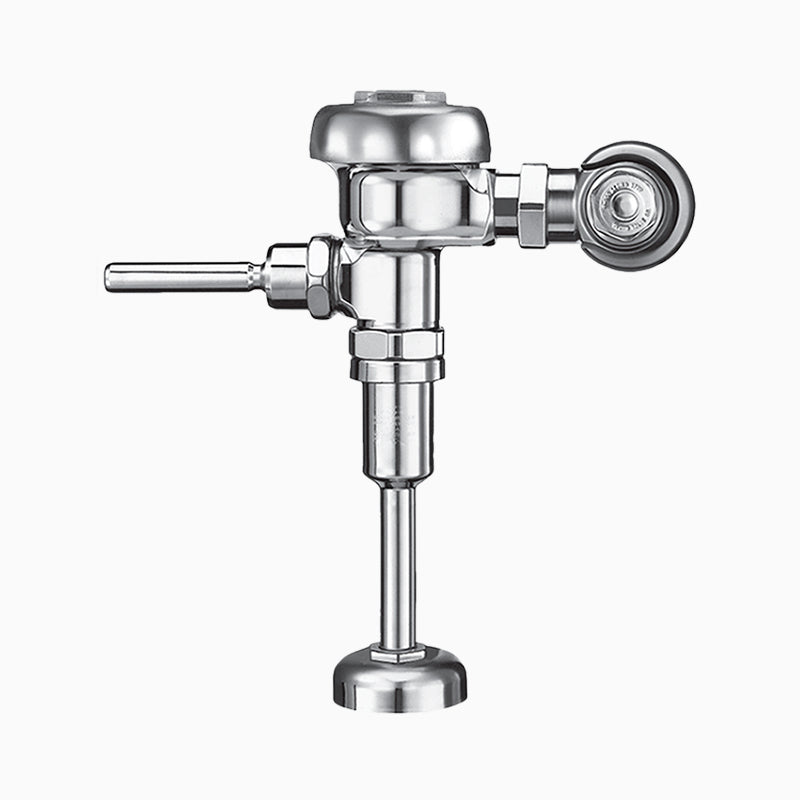

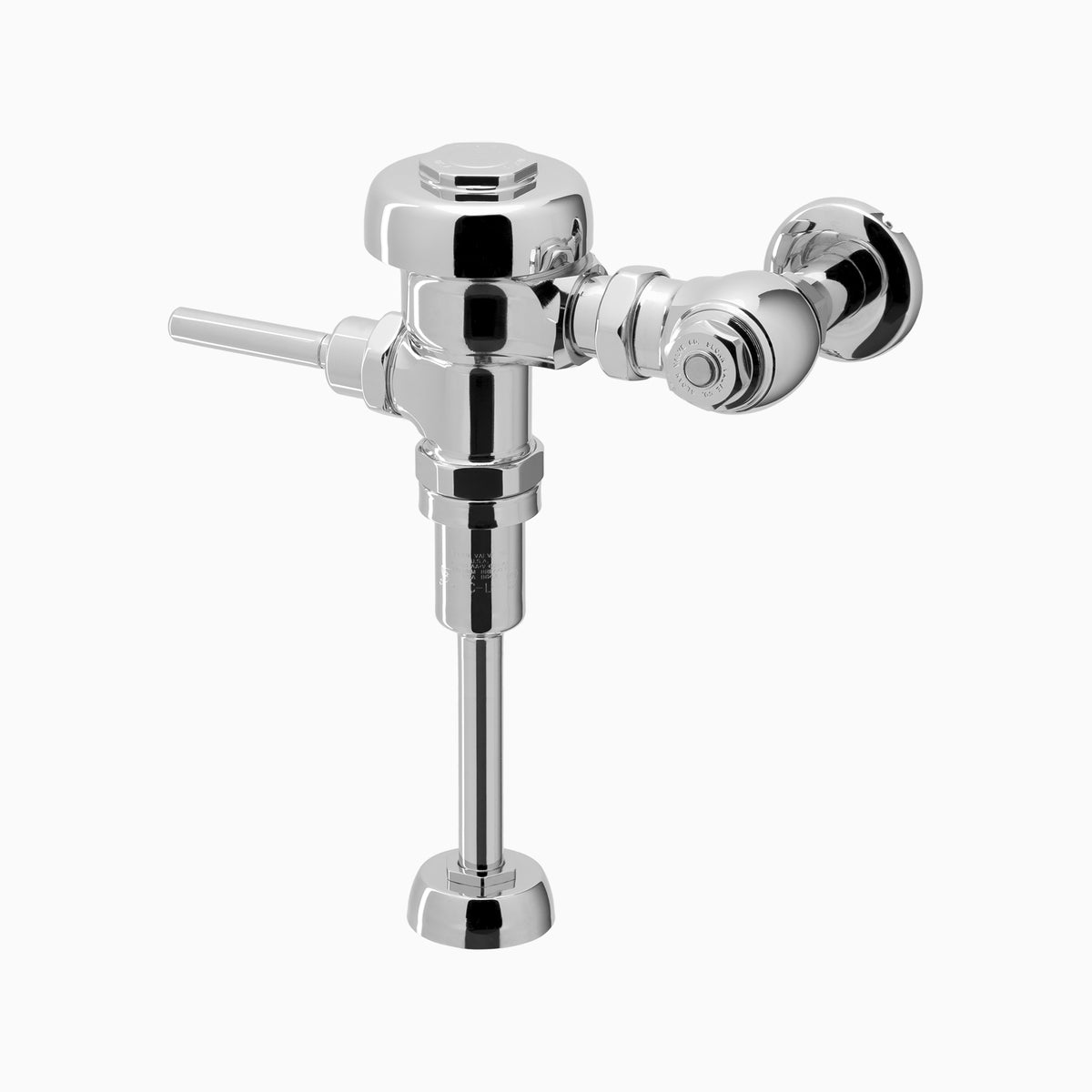

The Sloan Regal 186-0.125 is a manual diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with an exposed body.
Sloan REGAL 186 exposed manual urinal flushometer available in multiple flush volumes, ADA-compliant handle, and dezincification-resistant brass castings.
Options on this configuration: XL Sweat Solder Adapter Kit (XL); W/15"; V500AA. Sloan model number: Regal 186-0.125. Sloan's own price-list description: REGAL 186-0.125 XL W/15" V500AA.
Features
- Flush volumes start as low as 0.5 gpf/1.9 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: Regal 186-0.125
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 0.125
Details
| Series | REGAL 186 | Device Type | Flushometer |
| Operation | Manual | Options | XL Sweat Solder Adapter Kit (XL), W/15", V500AA |
| Fixture Served | Urinal | Body style | Exposed |
| Cycle volume gal | 0.125 gal | — | — |
Certifications & Standards
| ASSE-1037 | — |
