Description

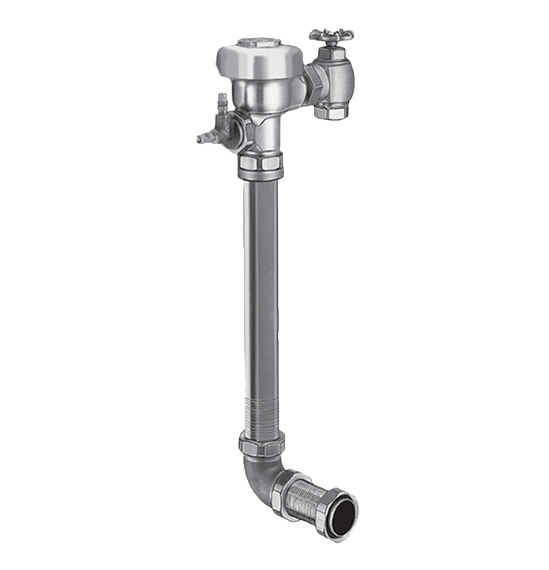

The Sloan Regal 952-1.6 is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a concealed body.
Sloan REGAL 952 concealed hydraulic flushometer with remotely positioned push-button actuators, available in multiple flush volumes, and ADA compliance.
Options on this configuration: XL Sweat Solder Adapter Kit (XL); ACORN; W/V500AA; 3-3/4. Sloan model number: Regal 952-1.6. Sloan's own price-list description: REGAL 952-1.6 XL ACORN W/V500AA 3-3/4.
Features
- Various types of push-button flush actuators, which can be remotely positioned
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open
- Integrity of the product is maintained with control stop plug
- Made from rough brass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: Regal 952-1.6
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Volume per Flush (gal): 1.6
Details
| Series | REGAL 952 | Device Type | Flushometer |
| Operation | Manual | Options | XL Sweat Solder Adapter Kit (XL), ACORN, W/V500AA, 3-3/4 |
| Fixture Served | Water Closet | Body style | Concealed |
| Cycle volume gal | 1.6 gal | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
| Water Closet
| Water Closet
| Urinal
| Water Closet
|
| Series | REGAL 952
| SLOAN 112
| REGAL BPW 1000
| REGAL 950
| REGAL 186
| REGAL BPW 1000
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
|
| Options | XL Sweat Solder Adapter Kit (XL), ACORN, W/V500AA, 3-3/4
| No Control Stop (XD)
| 2" Offset (OFST), XL Sweat Solder Adapter Kit (XL), F190, &, 10"A
| Australia (AUS), Whitworth Thread (WWT), W/A145A, L/F22
| XL Sweat Solder Adapter Kit (XL), W/15", V500AA
| 2" Offset (OFST), XL Sweat Solder Adapter Kit (XL), F190
|
