Description

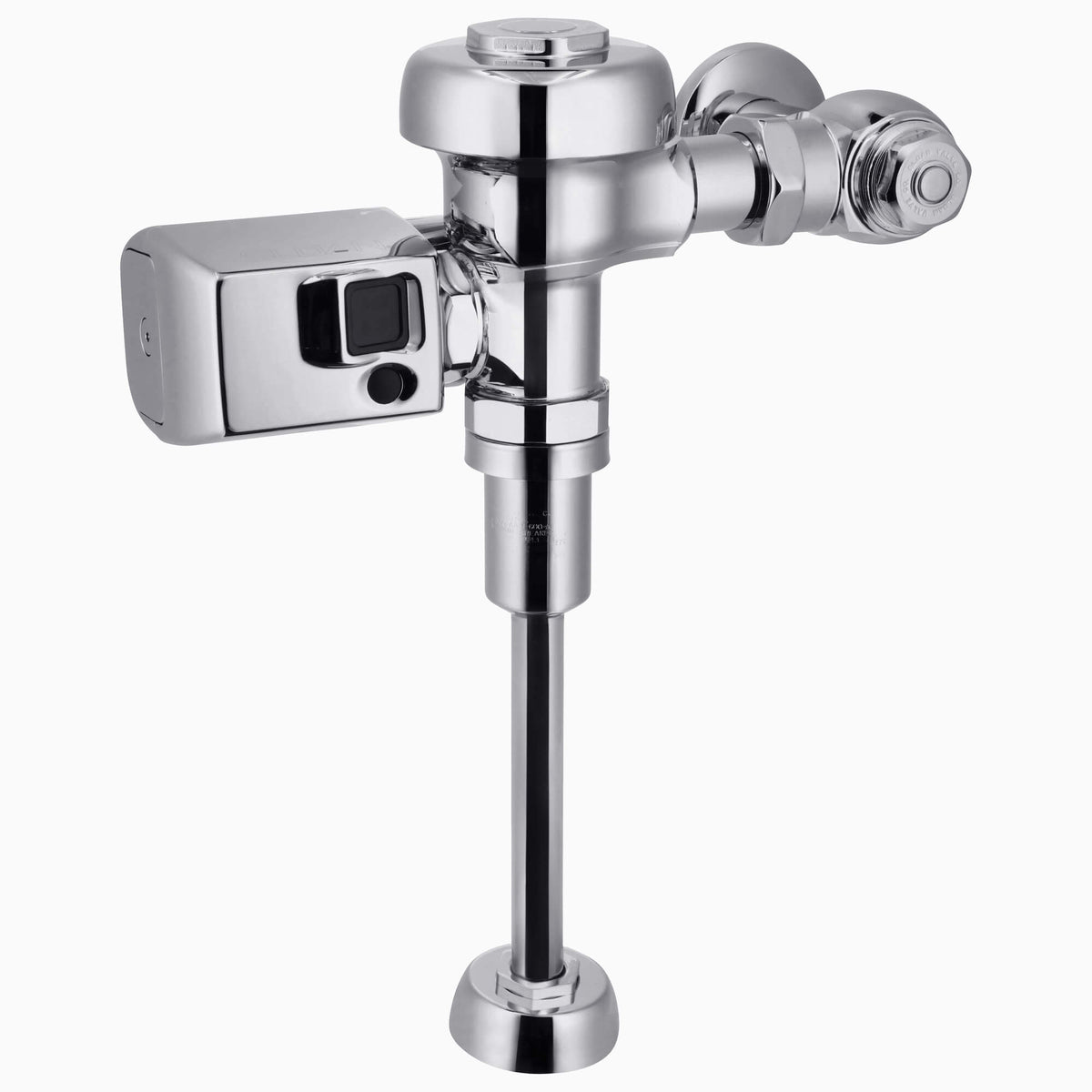

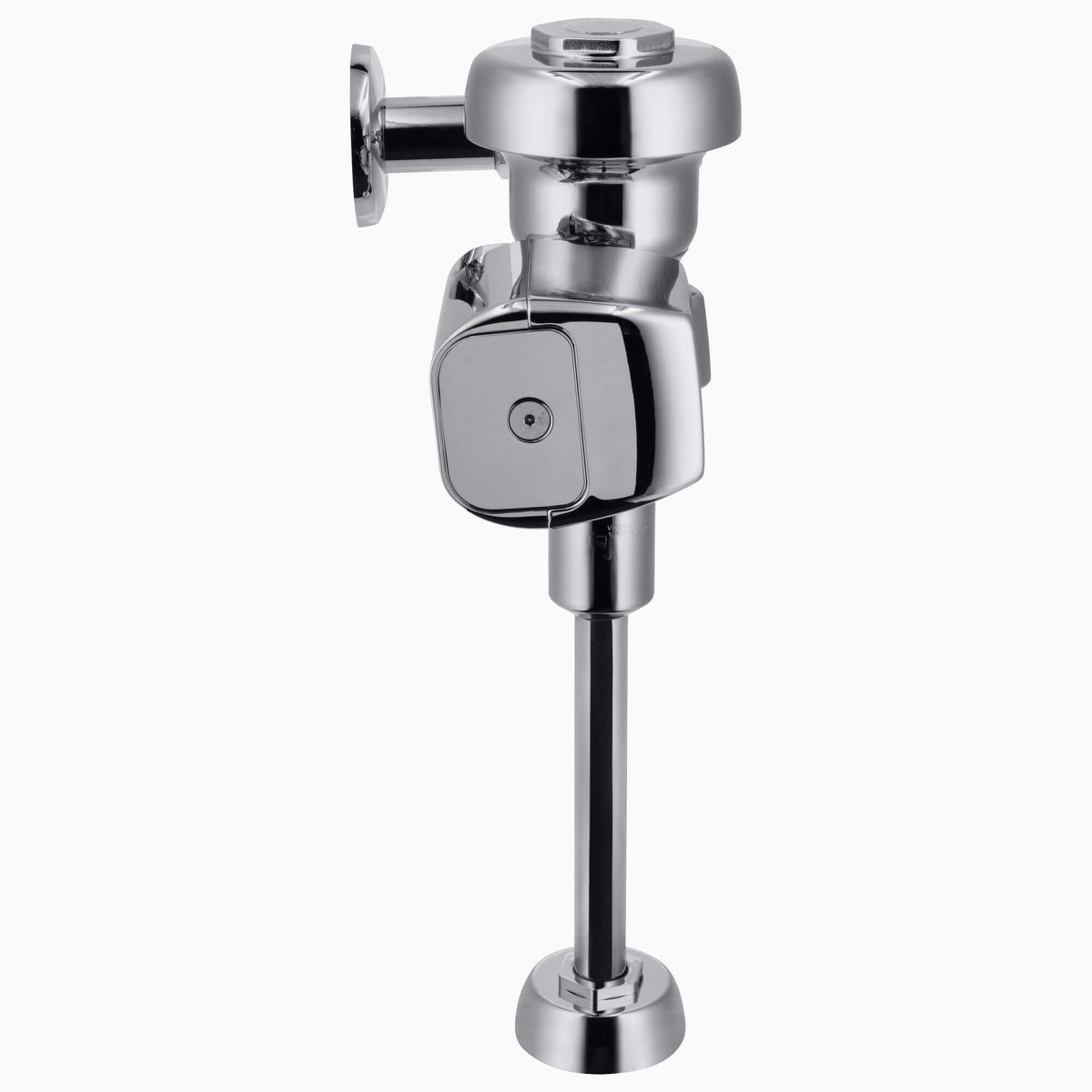

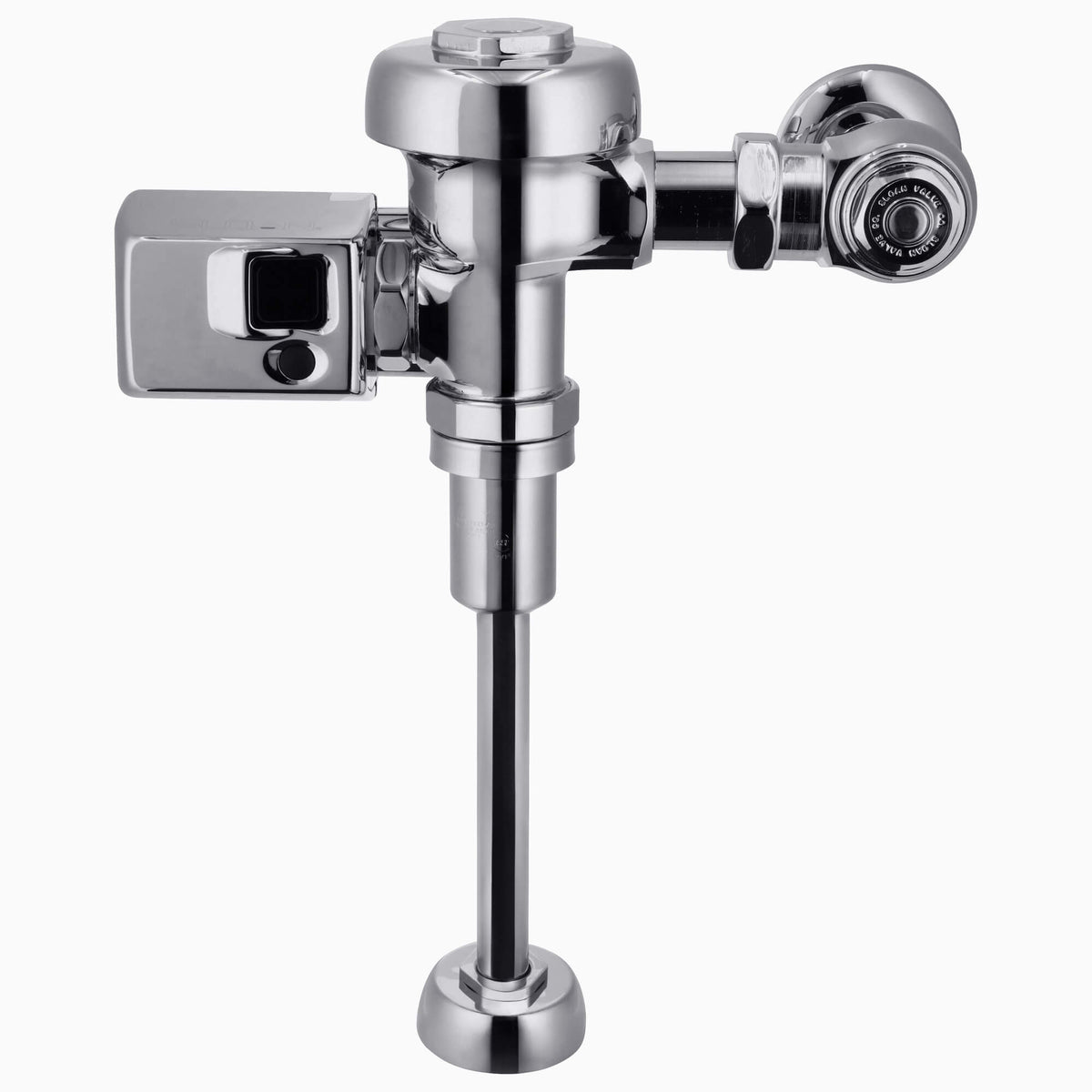

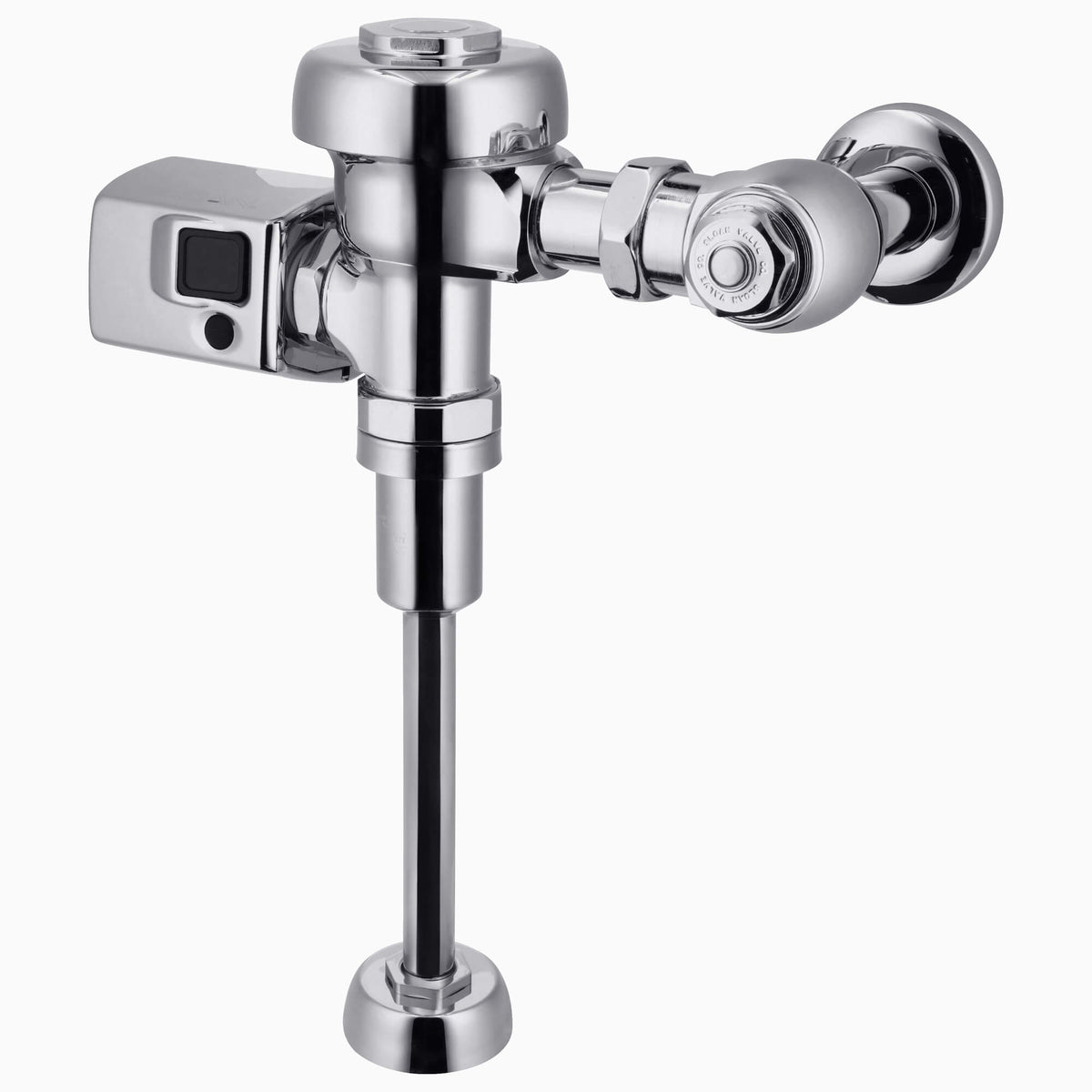

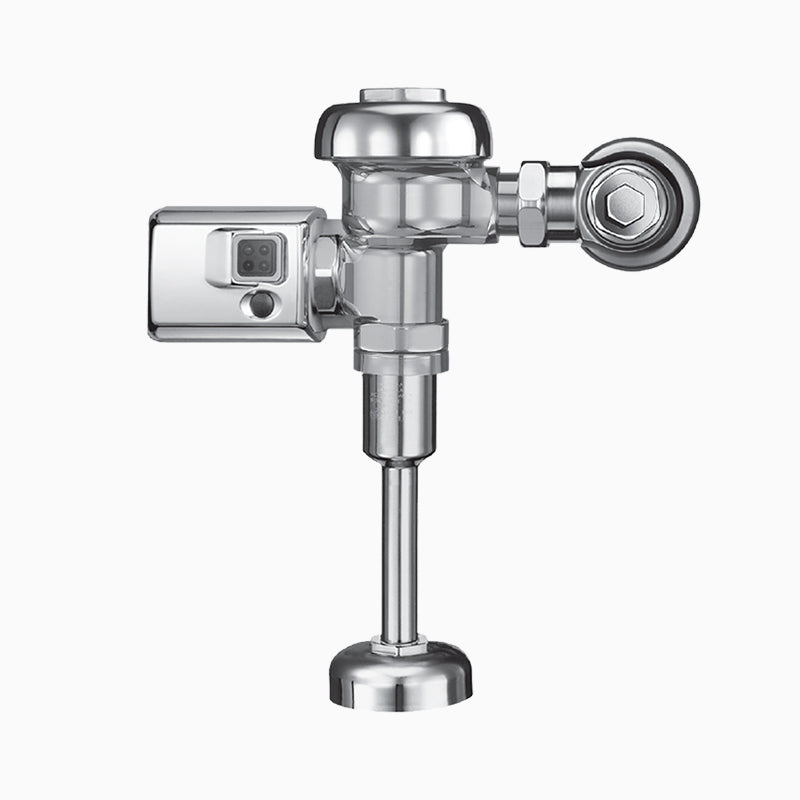

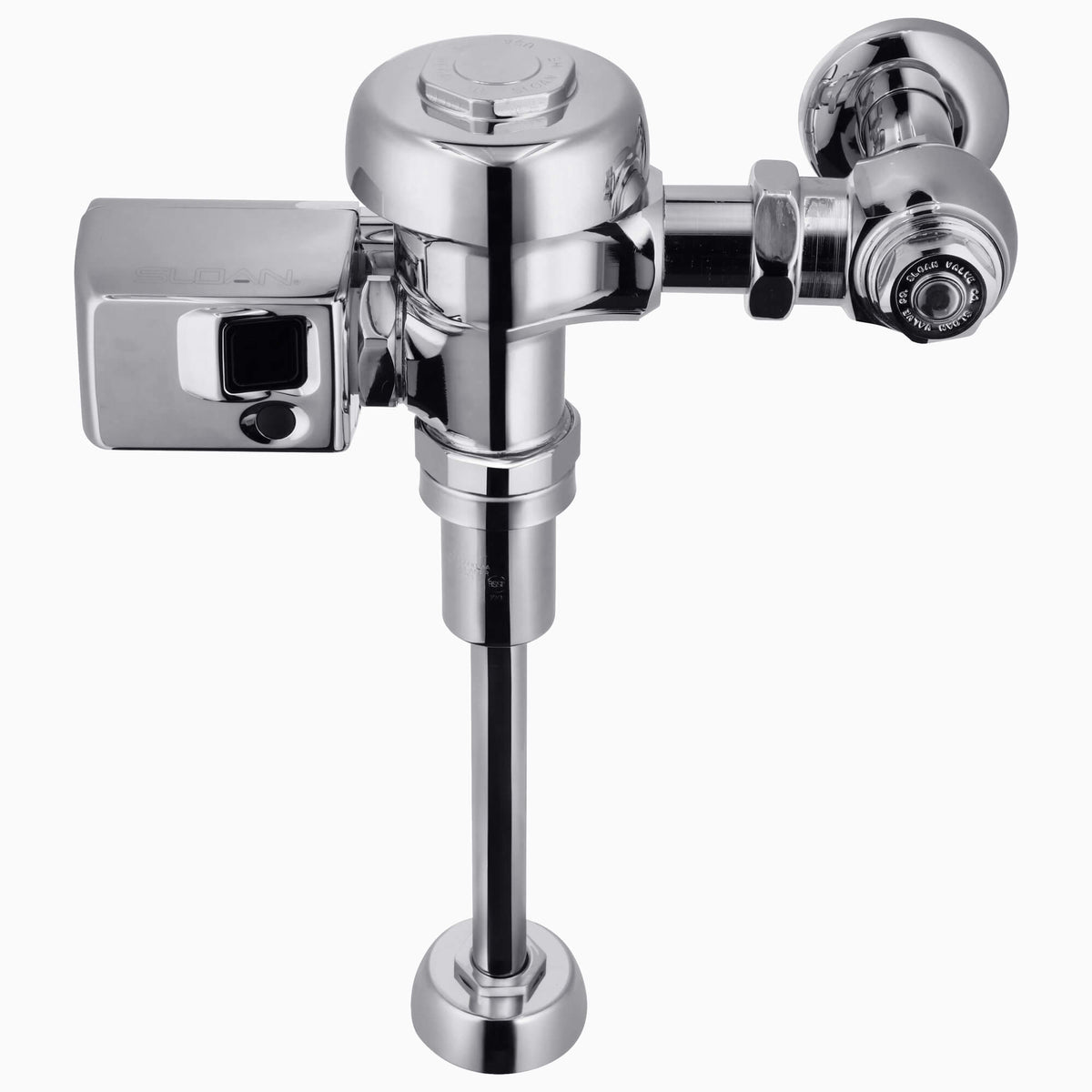

The Sloan REGAL 186 SMO-1.0-XL-CP is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
Achieve ultra-low flush volumes starting at 0.5 gpf with the REGAL 186 SMO flushometer. ADA-compliant, water-conserving design for commercial urinals.
Options on this configuration: XL Sweat Solder Adapter Kit (XL); M. Sloan model number: REGAL 186 SMO-1.0-XL-CP. Sloan's own price-list description: REGAL 186-1 XL SMO M.
Features
- 1.0 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, 0.75" Flush Connection, Fixture Connection Top Spud, Single Flush, 0.75" Inlet, 3/4" Control Stop, Electrical Override, Battery, Infrared
- Flush volumes start as low as 0.5 gpf/1.9 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: REGAL 186 SMO-1.0-XL-CP
- Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 1.0
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: DC (Battery)
- Sensor Type: Infrared
- Override Type: Electrical Override
- Sensing Range (in): 22"-42"
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | REGAL 186 SMO | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | XL Sweat Solder Adapter Kit (XL), M | Fixture Served | Urinal |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 1.0 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 11.5" |
| Spud connection | Top Spud | Override type | Electrical Override |
| Power source | DC (Battery) | Sensing range in | 22"-42" |
| Sensor type | Infrared | — | — |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | ASSE-1037 |
Compare with similar products
| Fixture Served | Urinal
| Urinal
| Urinal
| Water Closet
| Water Closet
| Urinal
|
| Series | REGAL 186 SMO
| SLOAN 8186
| REGAL 186 SMO
| REGAL 111 SMO
| REGAL 111 ESS
| REGAL 186 SFSM
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Inlet Size | 3/4"
| 3/4"
| — | 1"
| 1"
| — |
| Outlet Size | 3/4"
| 3/4"
| — | 1-1/2"
| 1-1/2"
| — |
| Body Material | Semi-Red Brass
| Semi-Red Brass
| — | Semi-Red Brass
| Semi-Red Brass
| — |
| Operation | Sensor
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
| ASSE-1037
| ADA, Buy American Act, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, UL, ASSE-1037
| ASSE-1037
|
| Options | XL Sweat Solder Adapter Kit (XL), M
| — | XL Sweat Solder Adapter Kit (XL), M
| XL Sweat Solder Adapter Kit (XL), M
| Trap Primer Outlet Tube (TP), XL Sweat Solder Adapter Kit (XL), Hardwired (HW)
| XL Sweat Solder Adapter Kit (XL), W/15", VB
|
