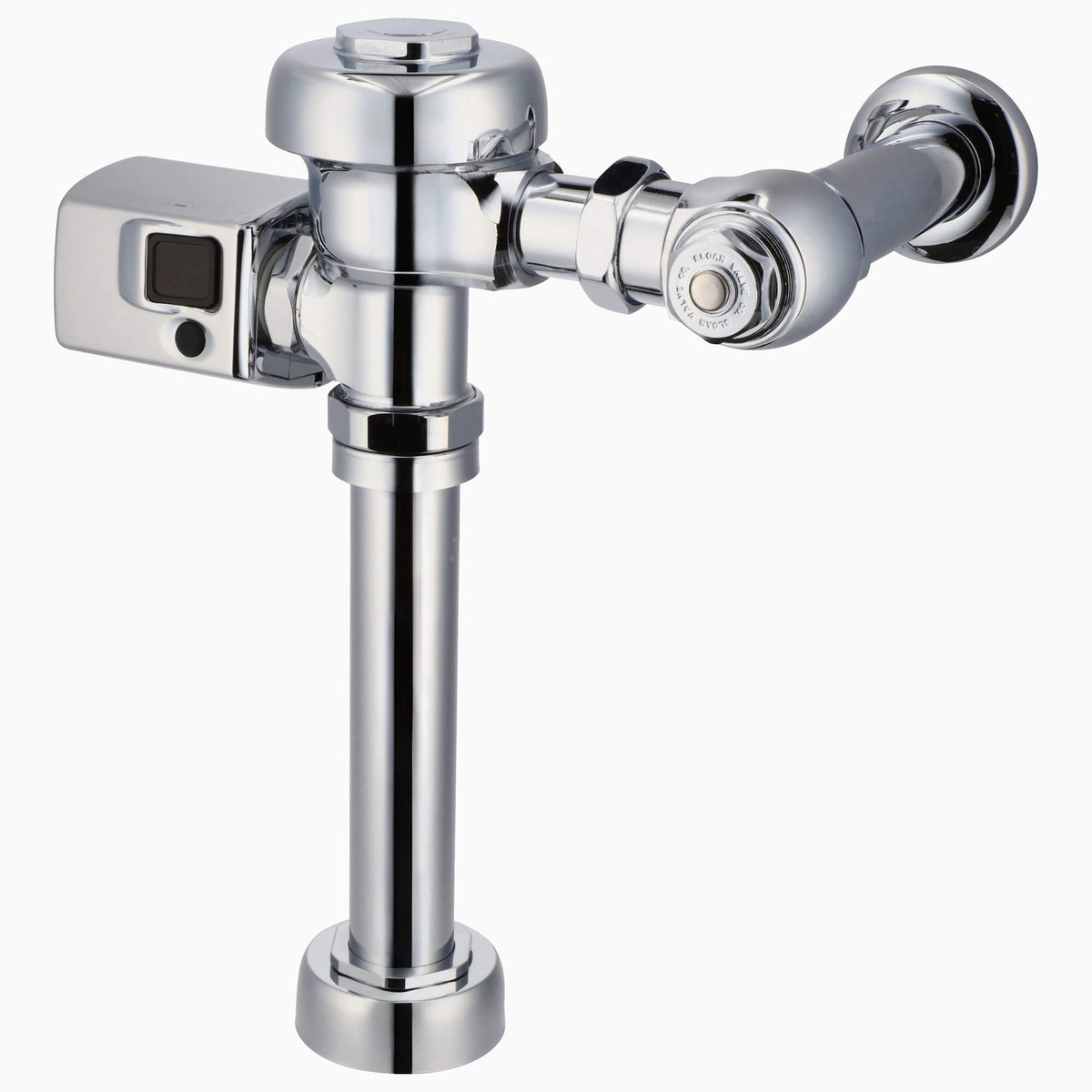

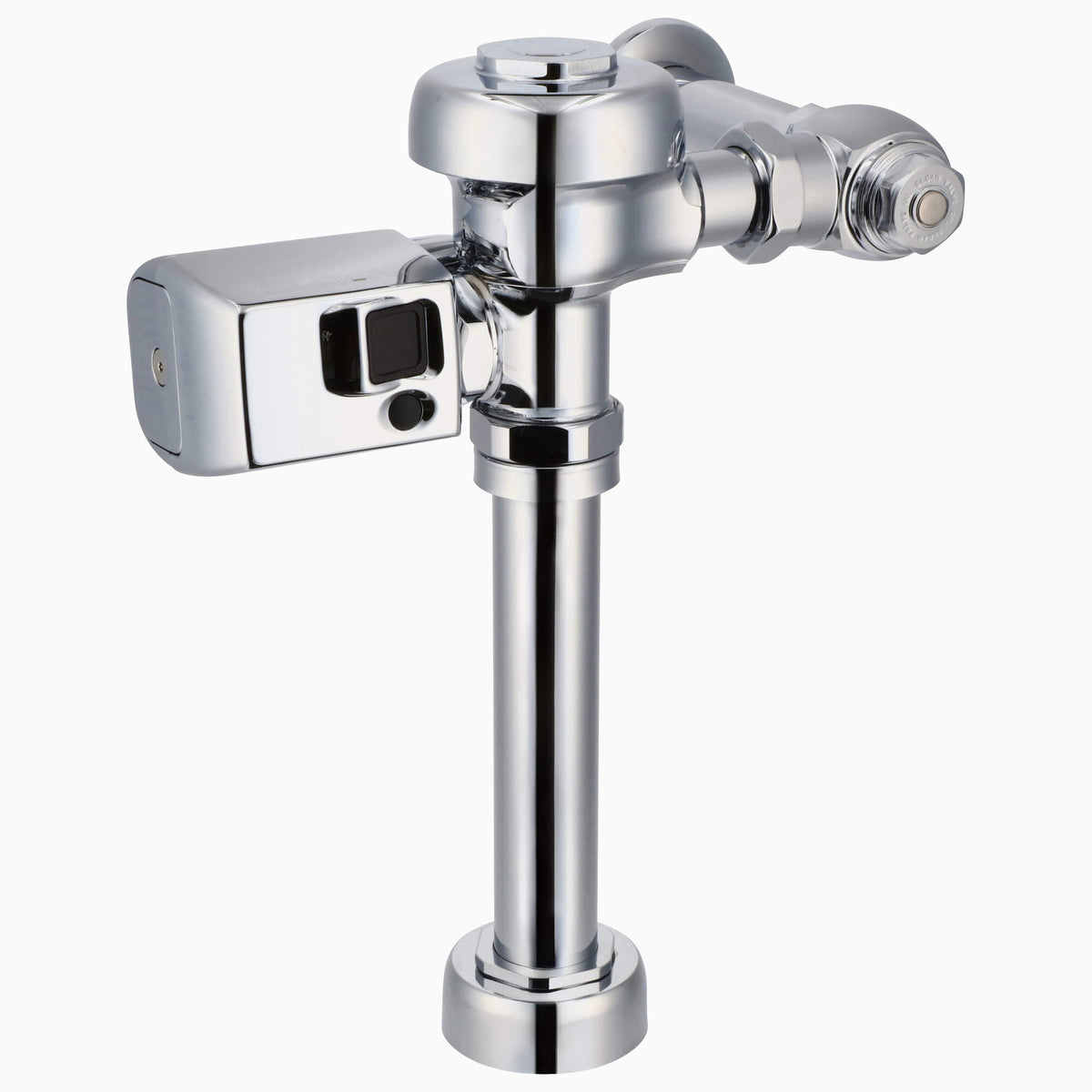

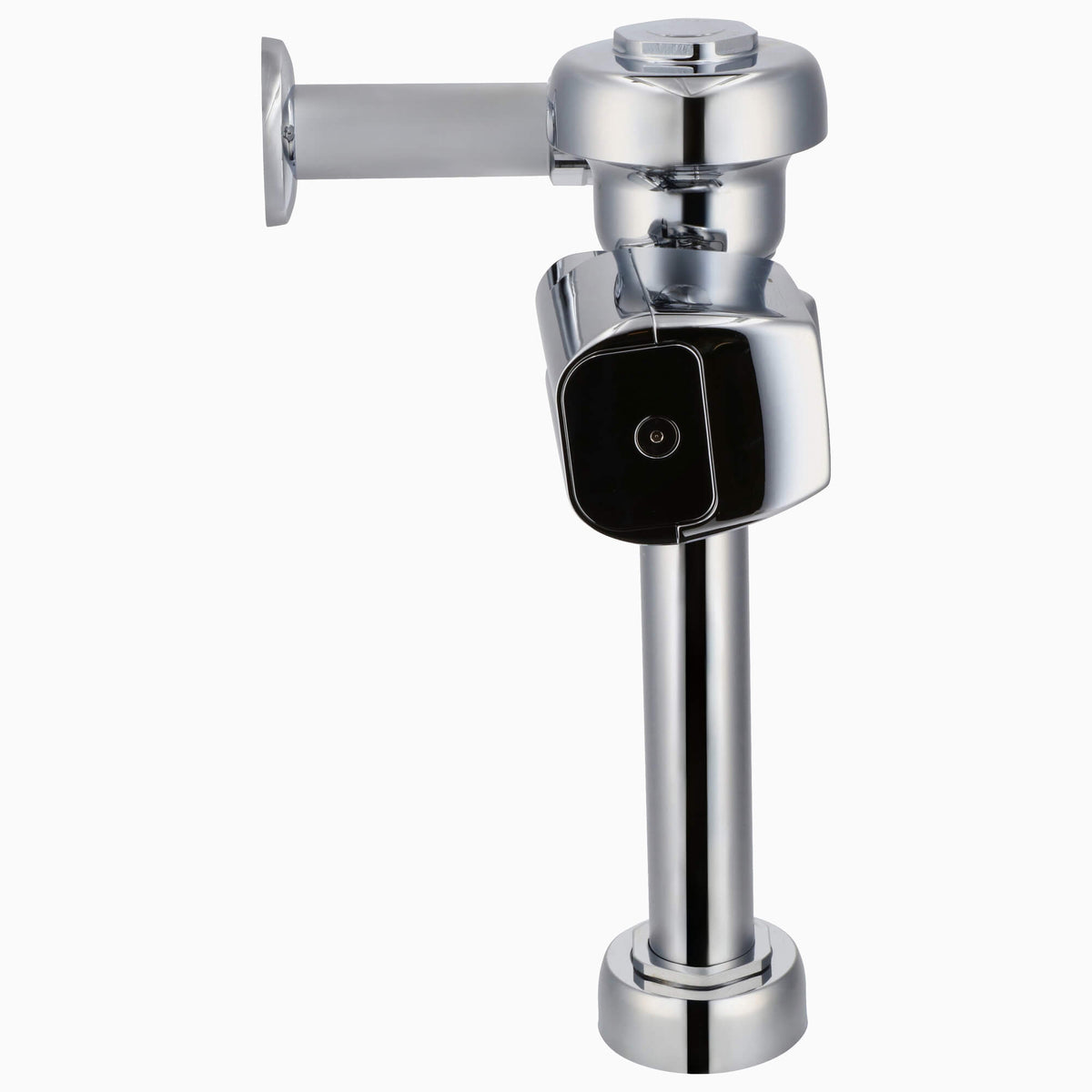

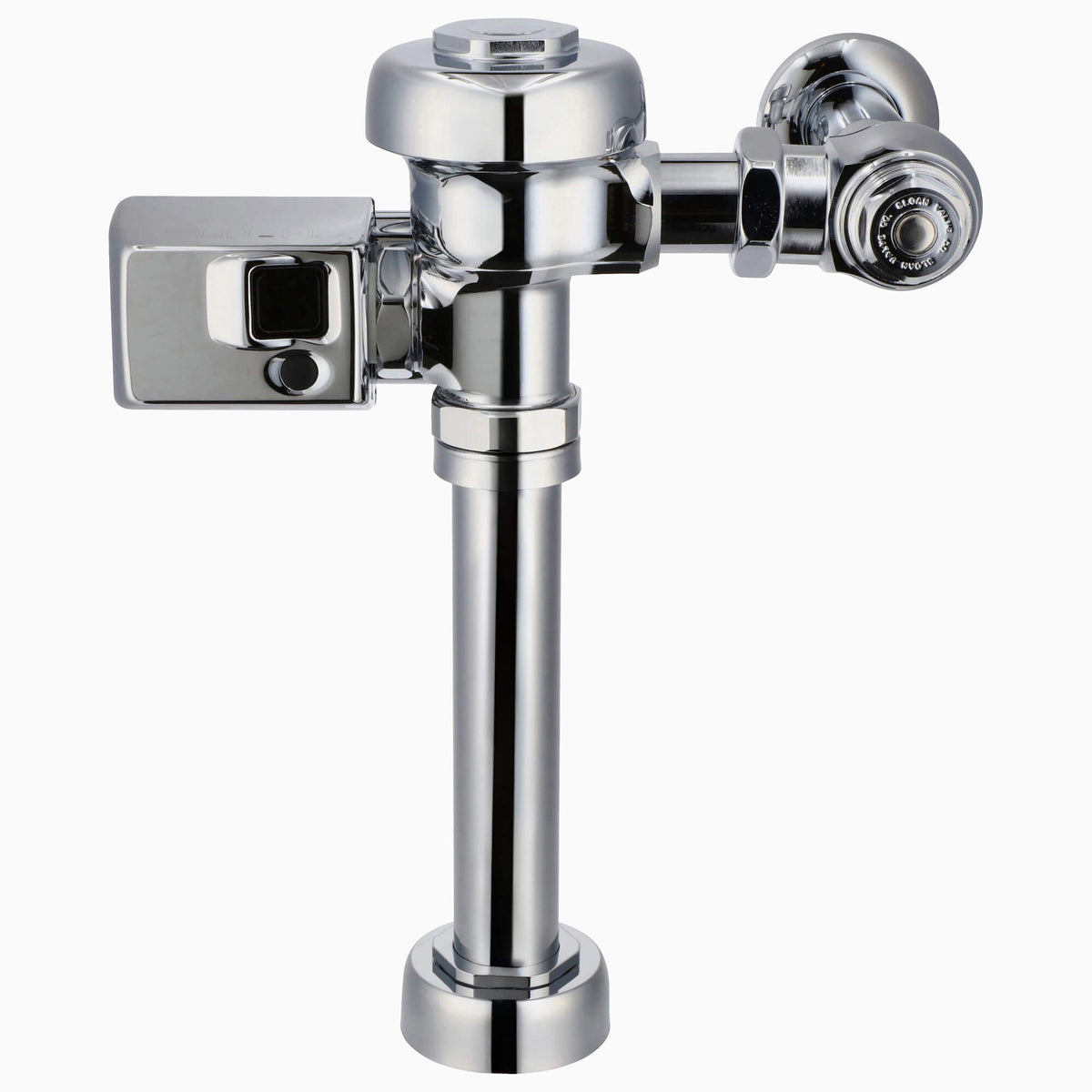

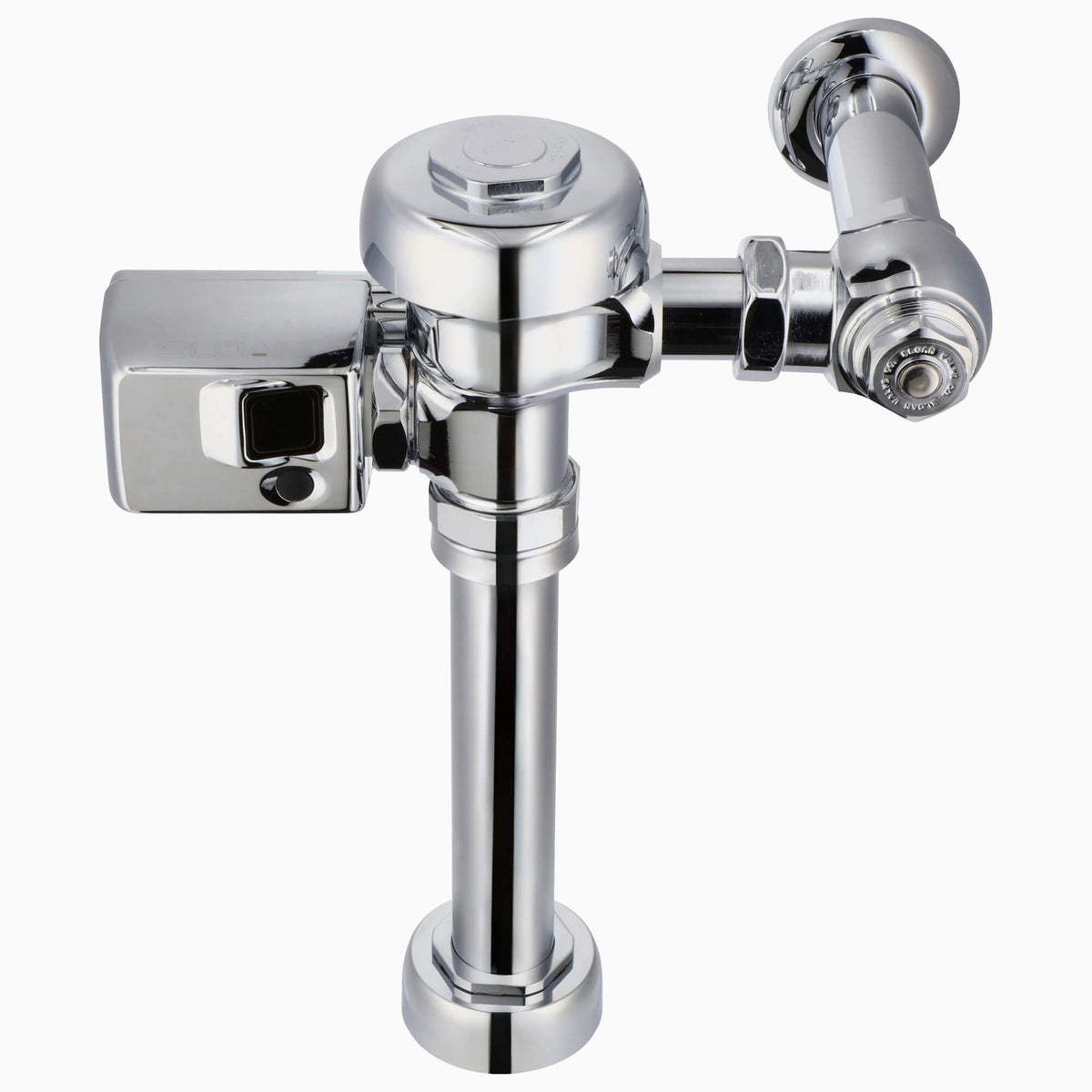

Sloan Regal 111 SMO Exposed Battery-Powered Sensor Water Closet Flushometer (1.28 GPF)

The Sloan REGAL 111 SMO-1.28-XL-CP is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

Achieve precise water efficiency with REGAL 111 SMO flushometer. ADA-compliant, vandal-resistant, and ASSE 1037 certified for commercial use. Explore our low-consumption options now.

Options on this configuration: XL Sweat Solder Adapter Kit (XL); M. Sloan model number: REGAL 111 SMO-1.28-XL-CP. Sloan's own price-list description: REGAL 111-1.28 XL SMO M.

Features

• 1.28 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Battery, Infrared
• Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece accommodates different height requirements
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: REGAL 111 SMO-1.28-XL-CP
• Certifications: ADA, Buy American Act, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Polished Chrome
• Vandal Resistant: Yes
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Sensor Type: Infrared
• Override Type: Electrical Override
• Sensing Range (in): 22"-42"
