Sloan Regal 186-0.5 Exposed Manual Flushometer, 0.5 gpf, 1-1/4" Flush Connection, with 1" Stop Option AND H534AS

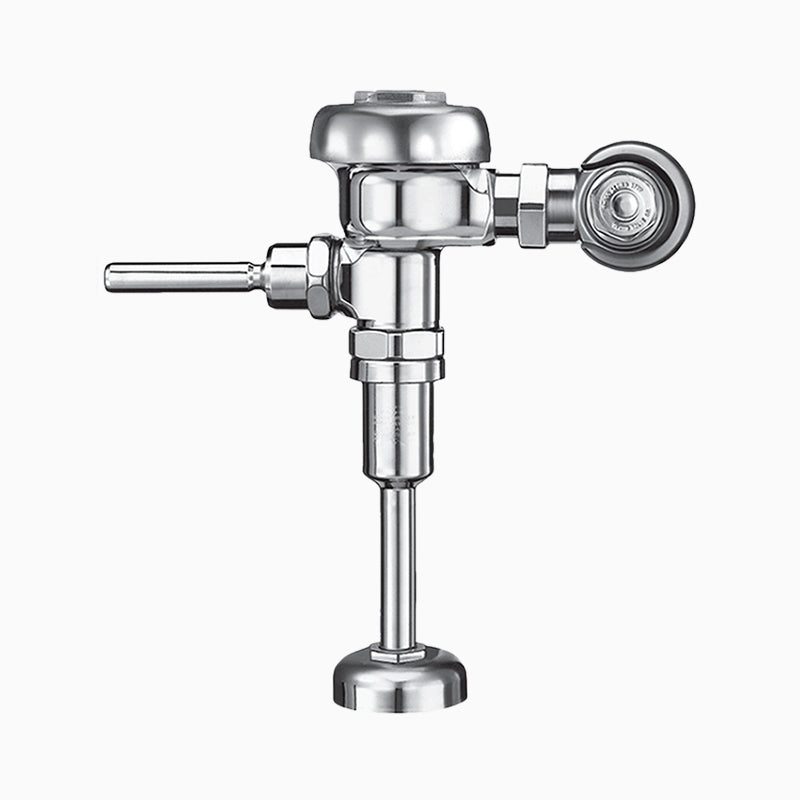

The Sloan Regal 186-0.5 is a manual diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with an exposed body.

Sloan REGAL 186 exposed manual urinal flushometer available in multiple flush volumes, ADA-compliant handle, and dezincification-resistant brass castings.

Options on this configuration: 1-1/4" Flush Connection (U); XL Sweat Solder Adapter Kit (XL); W/1"; STOP; AND; H534AS. Sloan model number: Regal 186-0.5. Sloan's own price-list description: REGAL 186-0.5 U XL W/1" STOP AND H534AS.

Features

• Flush volumes start as low as 0.5 gpf/1.9 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
• Integrity of the product is maintained with control stop plug
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Regal 186-0.5
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 0.5
