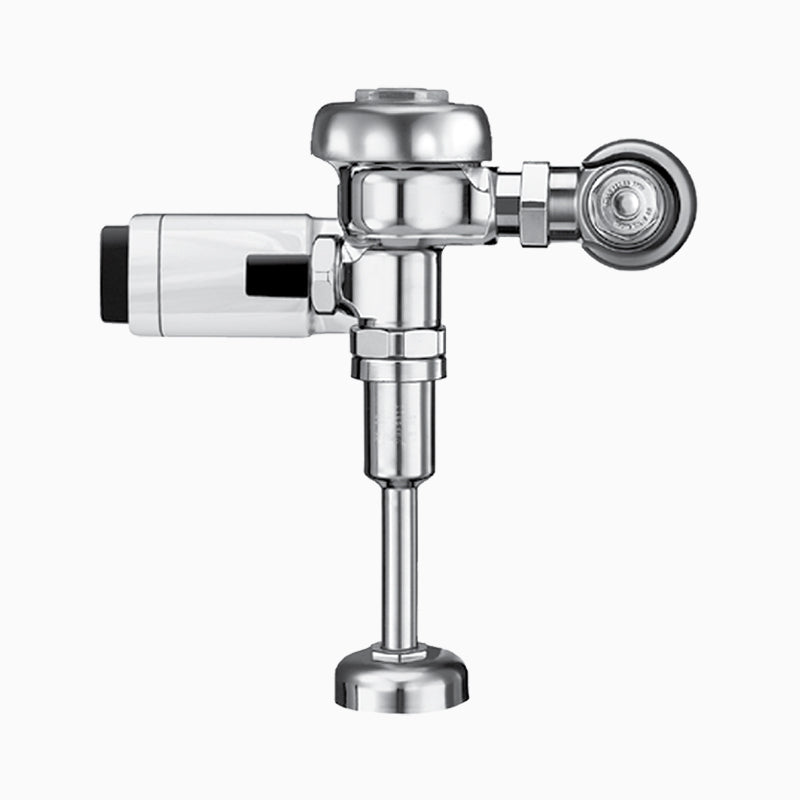

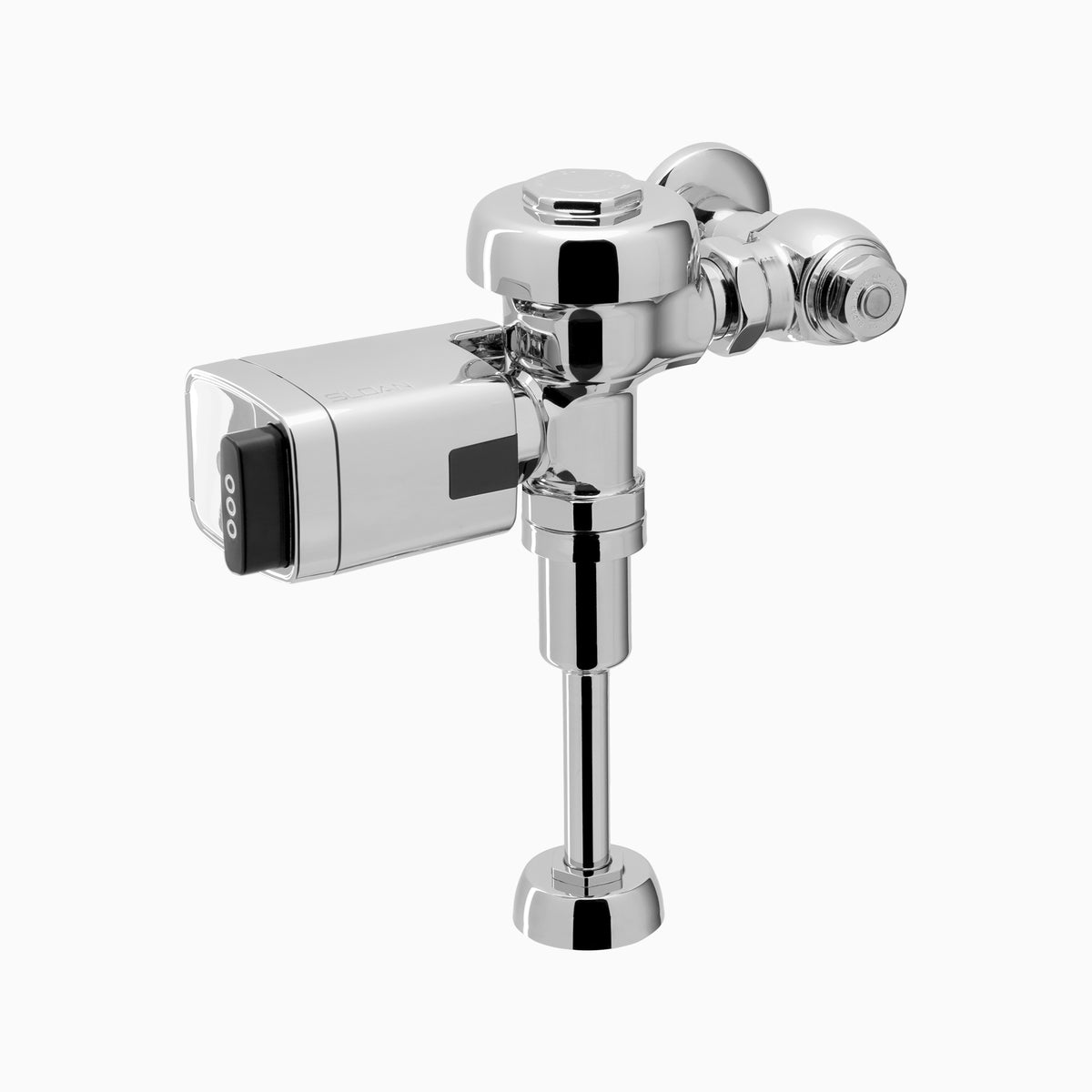

The Sloan REGAL 186 SFSM-0.5-XL-CP-TMO is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.
Flush volumes as low as 0.5 gpf with Regal 186 SFSM flushometer. ADA-compliant handle prevents excess water use. Built for commercial durability.
Options on this configuration: XL Sweat Solder Adapter Kit (XL); True Mechanical Override (TMO). Sloan model number: REGAL 186 SFSM-0.5-XL-CP-TMO.
Features
- 0.5 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, 0.75" Flush Connection, Fixture Connection Top Spud, Single Flush, 0.75" Inlet, 3/4" Control Stop, True Mechanical Override, Battery, Infrared
- Flush volumes start as low as 0.5 gpf/1.9 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required. It has a true mechanical override, so it still flushes by hand if power is lost.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: REGAL 186 SFSM-0.5-XL-CP-TMO
- Certifications: ADA, Buy American Act, CALGreen, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 0.5
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: DC (Battery)
- Sensor Type: Infrared
- Override Type: True Mechanical Override
- Sensing Range (in): 15"-30"
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | REGAL 186 SFSM | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | XL Sweat Solder Adapter Kit (XL), True Mechanical Override (TMO) | Fixture Served | Urinal |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 0.5 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 11.5" |
| Spud connection | Top Spud | Override type | True Mechanical Override |
| Power source | DC (Battery) | Sensing range in | 15"-30" |
| Sensor type | Infrared | — | — |
Certifications & Standards
| ADA | Buy American Act |
| CALGreen | IAPMO |
| WaterSense | ASSE-1037 |
