Description

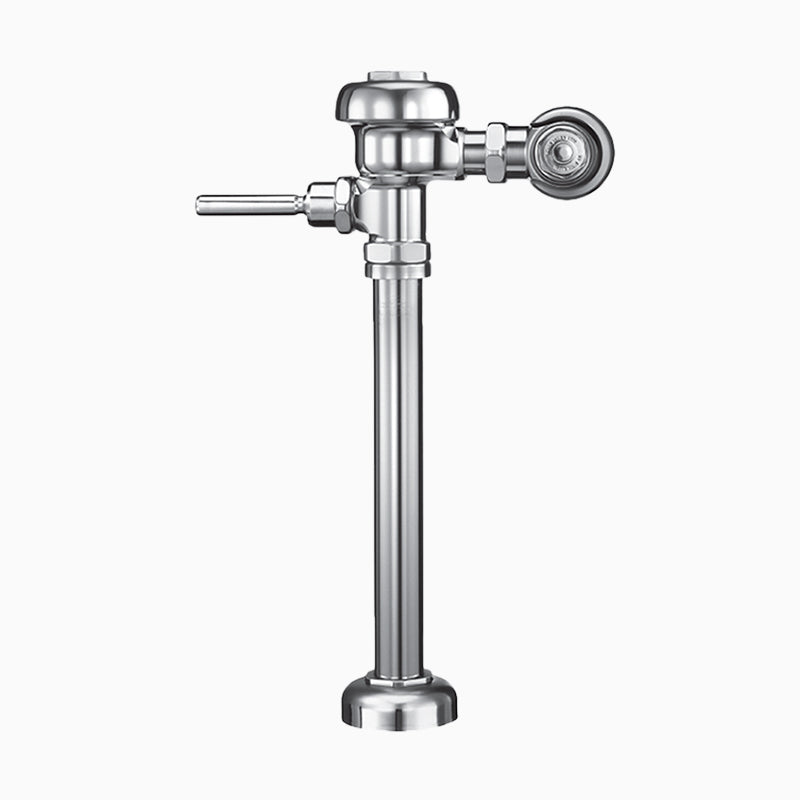

The Sloan Regal 117 is a manual diaphragm-type flush valve for a service sink.
Sloan REGAL 117 exposed manual service sink flushometer. 6.5 gpf, dezincification-resistant brass castings, ASSE 1037 compliant. ADA and BAA compliant.
Options on this configuration: Front of Valve Handle (H); Less Vacuum Breaker (order separately) (XYV); Less Flush Connection (L/FC); XL Sweat Solder Adapter Kit (XL); W/SPUD; FLANGE. Sloan's own price-list description: REGAL 117 XL H XYV L/FC W/SPUD FLANGE.
Features
- Standard flush volume is 6.5 gpf /24.6 Lpf
- Flushometers may be ordered with a handle at the front or a push-button actuator
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: Regal 117
- Certifications: ASSE-1037
- Fixture Served: Service Sink
- Body Style: Exposed
- Backflow Device: None (Order Separately)
Details
| Series | REGAL 117 | Device Type | Flushometer |
| Operation | Manual | Options | Front of Valve Handle (H), Less Vacuum Breaker (order separately) (XYV), Less Flush Connection (L/FC), XL Sweat Solder Adapter Kit (XL), W/SPUD, FLANGE |
| Fixture Served | Service Sink | Backflow device | None (Order Separately) |
| Body style | Exposed | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Service Sink
| Water Closet
| Water Closet
| Water Closet
| Urinal
| Water Closet
|
| Series | REGAL 117
| SLOAN 112
| REGAL BPW 1000
| REGAL 950
| REGAL 186
| REGAL BPW 1000
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
|
| Options | Front of Valve Handle (H), Less Vacuum Breaker (order separately) (XYV), Less Flush Connection (L/FC), XL Sweat Solder Adapter Kit (XL), W/SPUD, FLANGE
| No Control Stop (XD)
| 2" Offset (OFST), XL Sweat Solder Adapter Kit (XL), F190, &, 10"A
| Australia (AUS), Whitworth Thread (WWT), W/A145A, L/F22
| XL Sweat Solder Adapter Kit (XL), W/15", V500AA
| 2" Offset (OFST), XL Sweat Solder Adapter Kit (XL), F190
|
