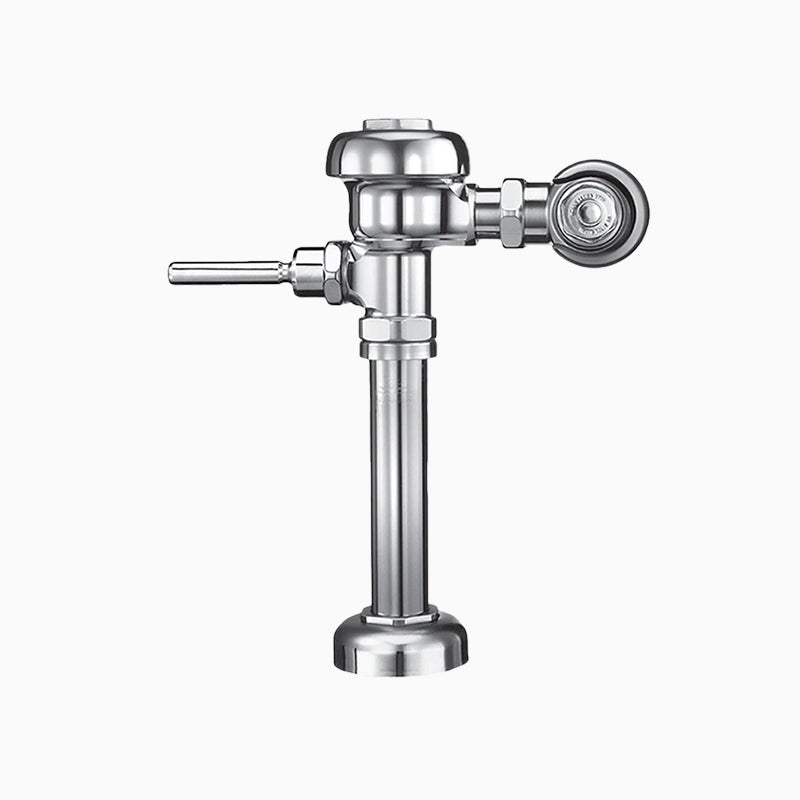

Sloan Regal 110-2.4 Exposed Manual Flushometer, 2.4 gpf

The Sloan Regal 110-2.4 is a manual diaphragm-type flush valve for a water closet. It delivers 2.4 gallons per flush, with an exposed body.

Sloan REGAL 110 exposed manual flushometer, ADA-compliant non-hold-open handle, and dezincification-resistant brass construction. Made in the USA.

Options on this configuration: XL Sweat Solder Adapter Kit (XL); W/H534AS. Sloan model number: Regal 110-2.4. Sloan's own price-list description: REGAL 110-2.4 XL W/H534AS.

Features

• Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Integrity of the product is maintained with control stop plug
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 2.4 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Operation: Manual
• MPN: Regal 110-2.4
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Volume per Flush (gal): 2.4
