Sloan Regal 152 ESS Concealed Hardwired Sensor Water Closet Flushometer (1.6 GPF)

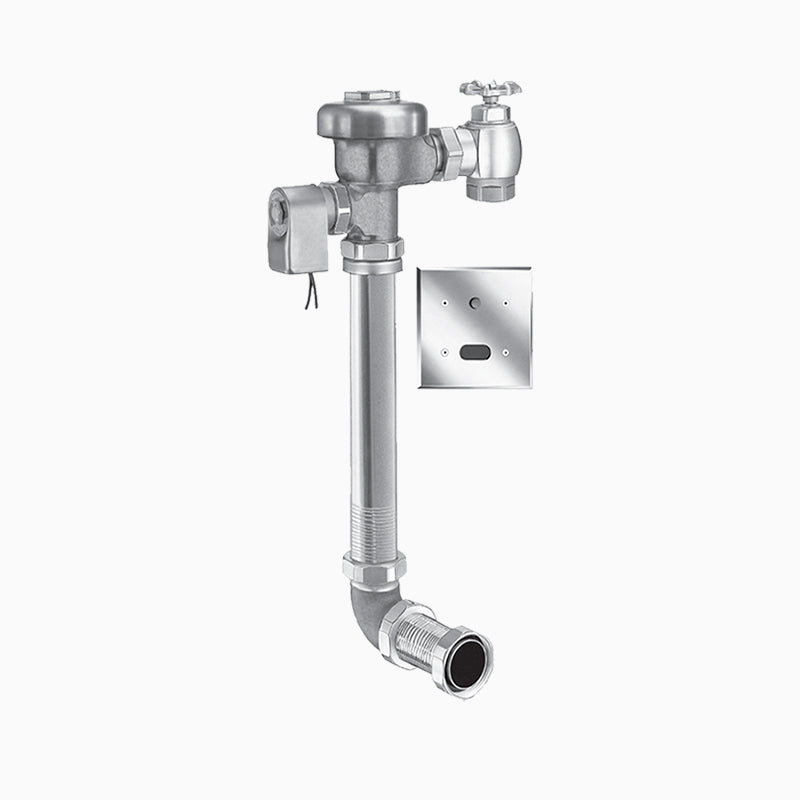

The Sloan REGAL 152 ESS-1.6-XL-RB-HW-24V is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body.

Concealed sensor flushometer for commercial water closets. ASTM-compliant brass components. Meets ASSE 1037 standards. Engineered for reliability in high-traffic facilities.

Options on this configuration: 2"-10-3/4" L Dimension (LDIM); XL Sweat Solder Adapter Kit (XL); 24V Power (24V); Hardwired (HW). Sloan model number: REGAL 152 ESS-1.6-XL-RB-HW-24V.

Features

• 1.6 gpf, XL Sweat Solder Adapter Kit, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 2"-10.75" L Dimension, Electrical Override, Hardwired, Sensor-Operated, 24V
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a rear spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: REGAL 152 ESS-1.6-XL-RB-HW-24V
• Certifications: ADA, Buy American Act, IAPMO, UL, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• Spud Connection: Rear Spud
• Rough-In (in): 14.5"
• L Dimension (in): 2"-10-3/4"
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: Hardwired AC
• Power Supply Detail: 24V
• Override Type: Electrical Override
• Sensing Range (in): 22"-42"
