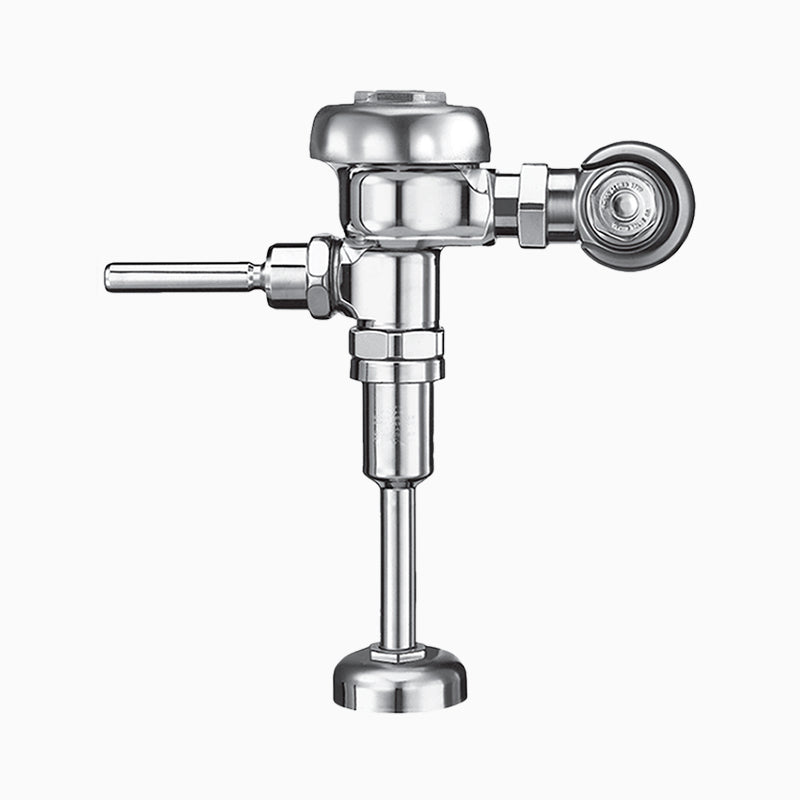

The Sloan Regal 186-0.5 is a manual diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with an exposed body.
Sloan REGAL 186 exposed manual urinal flushometer available in multiple flush volumes, ADA-compliant handle, and dezincification-resistant brass castings.
Options on this configuration: XL Sweat Solder Adapter Kit (XL); W/H536AS. Sloan model number: Regal 186-0.5. Sloan's own price-list description: REGAL 186-0.5 XL W/H536AS.
Features
- Flush volumes start as low as 0.5 gpf/1.9 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Operation: Manual
- MPN: Regal 186-0.5
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 0.5
Details
| Series | REGAL 186 | Device Type | Flushometer |
| Operation | Manual | Options | XL Sweat Solder Adapter Kit (XL), W/H536AS |
| Fixture Served | Urinal | Body style | Exposed |
| Cycle volume gal | 0.5 gal | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
| Water Closet
| Water Closet
| Urinal
| Water Closet
|
| Series | REGAL 186
| SLOAN 112
| REGAL BPW 1000
| REGAL 950
| REGAL 186
| REGAL BPW 1000
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
| ASSE-1037
|
| Options | XL Sweat Solder Adapter Kit (XL), W/H536AS
| No Control Stop (XD)
| 2" Offset (OFST), XL Sweat Solder Adapter Kit (XL), F190, &, 10"A
| Australia (AUS), Whitworth Thread (WWT), W/A145A, L/F22
| XL Sweat Solder Adapter Kit (XL), W/15", V500AA
| 2" Offset (OFST), XL Sweat Solder Adapter Kit (XL), F190
|
