Description

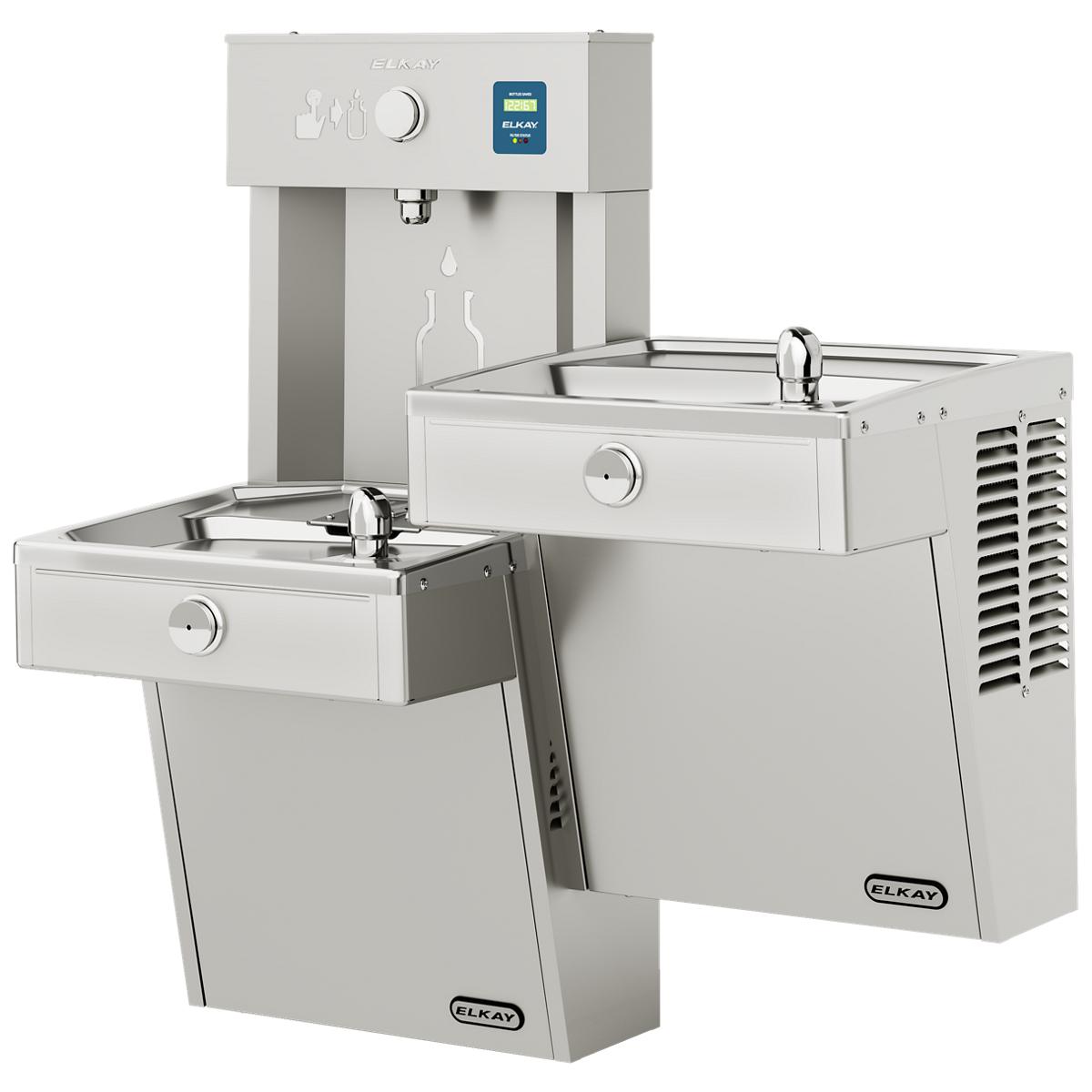

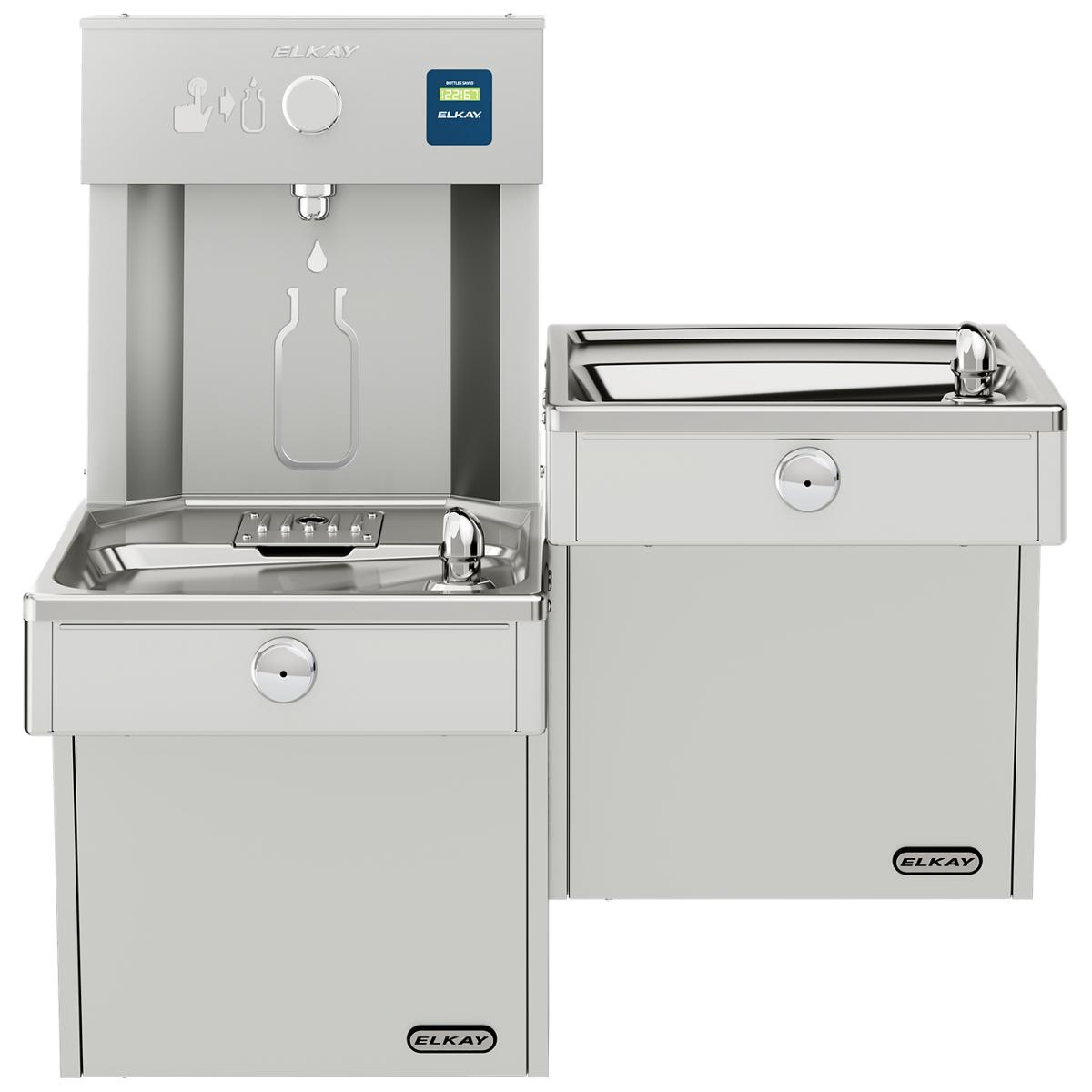

The Elkay VRCTLRDDWSK is a non-filtered bi-level bottle filling station, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation with automatic 20-second shut-off timer on bottle filler.
Features
- Ideal for heavy-use installations such as educational and indoor recreational facilities.
- Vandal-resistant, push-button activation for both the bottle filler and the water cooler.
- Fill rate is 1.5 GPM.
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.

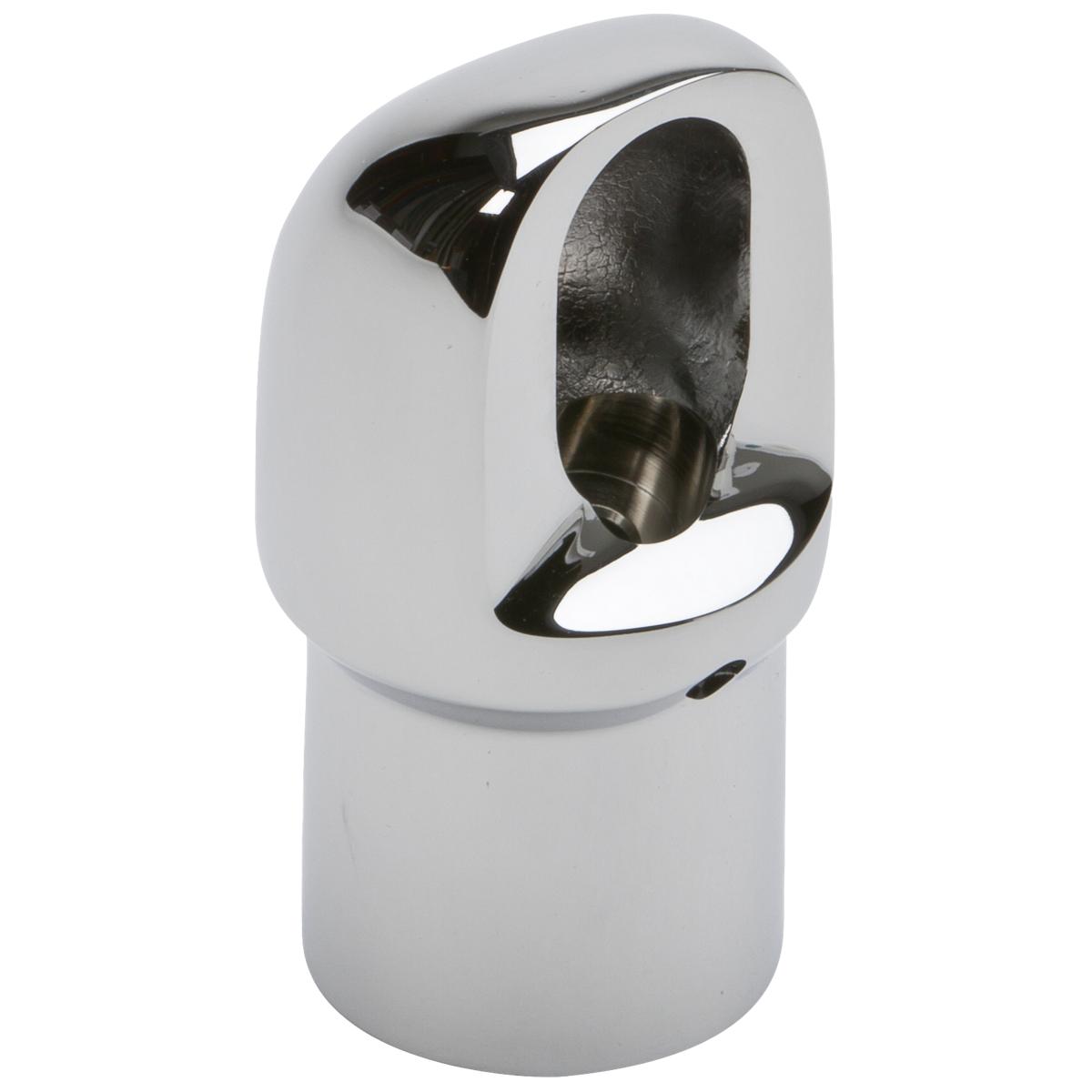

- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Rated for indoor/outdoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- Is this refrigerated?
- No, this unit dispenses ambient-temperature water only.
- What electrical supply does it need?
- 115V/60Hz, 15W.
- How does this mount?
- Wall-Mount installation.
Specifications
- Type: ezH2O Vandal-Resistant Bottle Filling Station & Bi-Level Reverse Cooler Non-Filtered Non-Refrigerated Stainless
- Body Material: Stainless Steel
- Operation: Push Button
- Country of Origin: United States
- MPN: VRCTLRDDWSK
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Refrigerated: No
- Filtered: No
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Vandal Resistant
- Electrical Requirement: 115V/60Hz
- Rated Watts: 15
- Full Load Amps: 1.0
- Installation Location: Indoor/Outdoor
- Overall Length (in): 36.125
- Overall Width (in): 18.625
- Overall Height (in): 38.8125
- Vandal Resistant: Yes
Product Information
Details
| Series | VRCTLRDDWSK | Device Type | ezH2O Vandal-Resistant Bottle Filling Station & Bi-Level Reverse Cooler Non-Filtered Non-Refrigerated Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Push Button | Baa | USA |
| Electrical requirement | 115V/60Hz | Full load amps | 1.0 |
| Installation location | Indoor/Outdoor | Overall height in | 38.8125 in |
| Overall length in | 36.125 in | Overall width in | 18.625 in |
| Rated watts | 15 | Vandal resistant | Yes |
| Bilevel | Yes | Bubbler style | Vandal Resistant |
| Stations | 2 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | UL-399 |
| cUL | UL |
| ADA | — |
Compare with similar products
| Series | VRCTLRDDWSK
| LZSDWSVRSK
| LZSDWSVRLK
| LZS8WSVRLK
| LZSTL8WSVRSK
| LZSTL8WSVRLK
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | ezH2O Vandal-Resistant Bottle Filling Station & Bi-Level Reverse Cooler Non-Filtered Non-Refrigerated Stainless
| ezH2O Bottle Filling Station with Single ADA Vandal-Resistant Cooler Filtered Non-Refrigerated Stainless
| ezH2O Bottle Filling Station with Single ADA Vandal-Resistant Cooler Filtered Non-Refrigerated Light Gray
| ezH2O Bottle Filling Station with Single ADA Vandal-Resistant Cooler Filtered Refrigerated Light Gray
| ezH2O Bottle Filling Station & Versatile Bi-Level ADA Vandal-Resistant Cooler Filtered Refrigerated Stainless
| ezH2O Bottle Filling Station & Versatile Bi-Level ADA Vandal-Resistant Cooler Filtered Refrigerated Light Gray
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Stainless Steel
| Stainless Steel
| — | — | Stainless Steel
| — |
| Operation | Push Button
| Sensor + Pushbar
| Sensor + Pushbar
| Sensor + Pushbar
| Sensor + Pushbar
| Sensor + Pushbar
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
|
