Elkay Pro Filtration VR Bottle Filling Station & Bi-Level ADA Cooler Non- Ref SS Total PFAS** + Sediment Prefilter LVRCTLDWSPRO-FLP4-FSR5

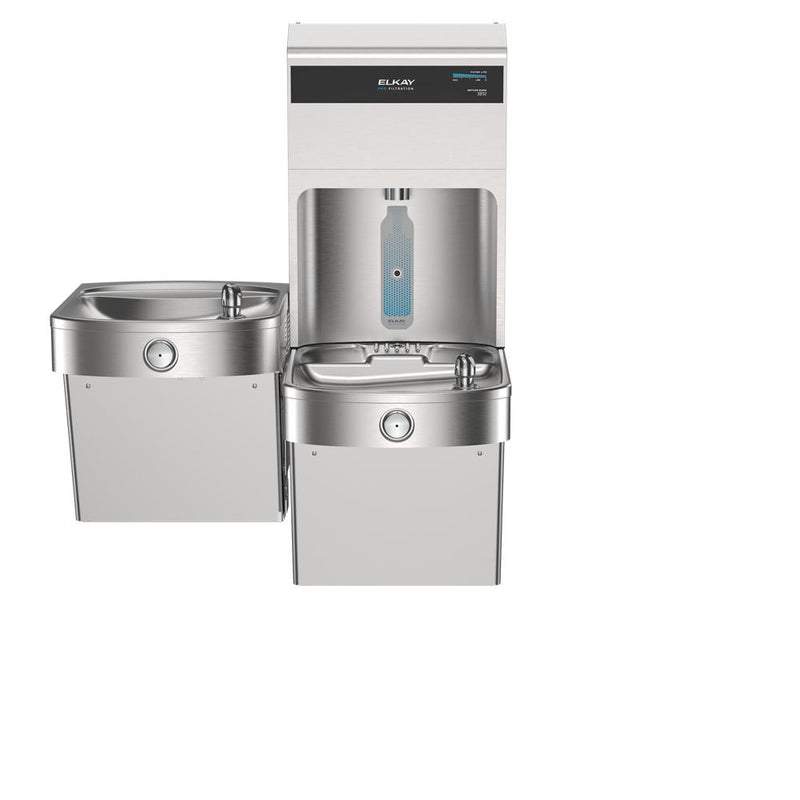

The Elkay LVRCTLDWSPRO-FLP4-FSR5 is a filtered bi-level bottle filling station, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.

Elkay Pro Filtration™ VR Bottle Filling Station & Bi-Level ADA Cooler Non- Ref SS Total PFAS** + Sediment Prefilter. Features shall include Alcove Light, Automatic Filter Flush, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Pro Filtration System, Real Drain, Stainless Steel Alcove, Top Mount Quick Filter Change, Visual Filter Monitor, Cloud Connected Device, Vandal Resistant, Stage 1 Sediment Prefilter, Two Stage Filtration, Tempered Glass Display Cover, Total PFAS + Lead Filter. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Features

• Certified Filtration: Certified by IAPMO R&T to NSF/ANSI 42, 53 and
• Top-Access Filter Replacement: Change filters in seconds from the
• High Capacity Filtration: Delivers filter life capacity that exceeds
• Smart Connected: Remotely track filter status, anticipate maintenance,
• Automated Filter Startup: Recognizes new filters, automatically resets
• Interactive Display: Blue LCD display shows remaining filter capacity
• Advanced filtration designed to reduce Total PFAS***, featuring a

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

Is this refrigerated?

No, this unit dispenses ambient-temperature water only.

What electrical supply does it need?

115V/60Hz, 6W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Elkay Pro Filtration™ VR Bottle Filling Station & Bi-Level ADA
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: LVRCTLDWSPRO-FLP4-FSR5
• Certifications: ADA, NSF-372, NSF-42, NSF-53, UL-399, UL
• Lead-Free: Yes
• Refrigerated: No
• Filtered: Yes
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Vandal Resistant
• Electrical Requirement: 115V/60Hz
• Rated Watts: 6
• Installation Location: Indoor
• Overall Length (in): 36.75
• Overall Width (in): 19.0
• Overall Height (in): 46.875
