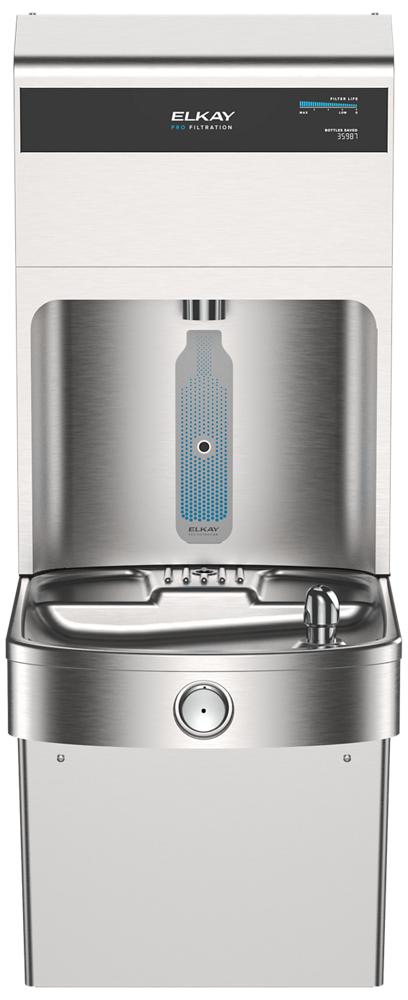

Elkay Pro Filtration VR Bottle Filling Station & Single ADA Cooler w/ Ultra Capacity Lead Filter - SS LVRC8WSPRO

The Elkay LVRC8WSPRO is a filtered bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

Elkay® Pro Filtration™ VR Bottle Filling Station & Single ADA Cooler w/ Ultra Capacity Lead Filter - SS. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Alcove Light, Automatic Filter Flush, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Pro Filtration System, Real Drain, Stainless Steel Alcove, Top Mount Quick Filter Change, Visual Filter Monitor, Cloud Connected Device, Vandal Resistant, Tempered Glass Display Cover. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s).

Features

• Compressor: Hermetically-sealed, reciprocating type, single phase.
• Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is
• Cooling Unit: Combination tube-tank type. Continuous copper tubing
• Refrigerant Control: Refrigerant R-134a is controlled by
• Temperature Control: Easily accessible enclosed adjustable thermostat
• Certified Filtration: Certified by IAPMO R&T to NSF/ANSI 42, 53 and 401 to reduce lead, microplastics, cysts, asbestos, turbidity, particulate class 1,
• Top-Access Filter Replacement: Change filters in seconds from the top- minimizing maintenance time and system disruption
• High Capacity Filtration: Delivers filter life capacity that exceeds industry standards - extending uptime and reducing filter changeouts
• Vandal-Resistant Stainless Steel Design: Durable construction engineered for high-traffic environments with a sleek, modern aesthetic
• Smart Connected: Remotely track filter status, anticipate maintenance, flush the unit, and monitor bottles saved for sustainability insights
• Interactive Display: Blue LCD display shows remaining filter capacity and 20oz bottles saved - helping teams stay ahead of maintenance and avoid
• 10,000-gallon ultra filter capacity helps extend uptime and reduce maintenance frequency— ideal for high-traffic environments

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Is this ADA compliant?

Yes, this model meets ADA / ICC A117.1 accessibility requirements.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Elkay® Pro Filtration™ VR Bottle Filling Station & Single ADA
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: LVRC8WSPRO
• Certifications: ADA, NSF-372, NSF-42, UL-399, UL
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: Yes
• Stations Served: 1
• Bi-Level: No
• Bubbler Style: Vandal Resistant
• Electrical Requirement: 115V/60Hz
• Installation Location: Indoor
• Overall Length (in): 18.375
• Overall Width (in): 19.0
• Overall Height (in): 46.875
