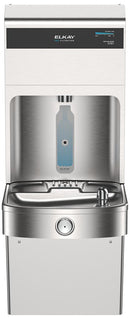

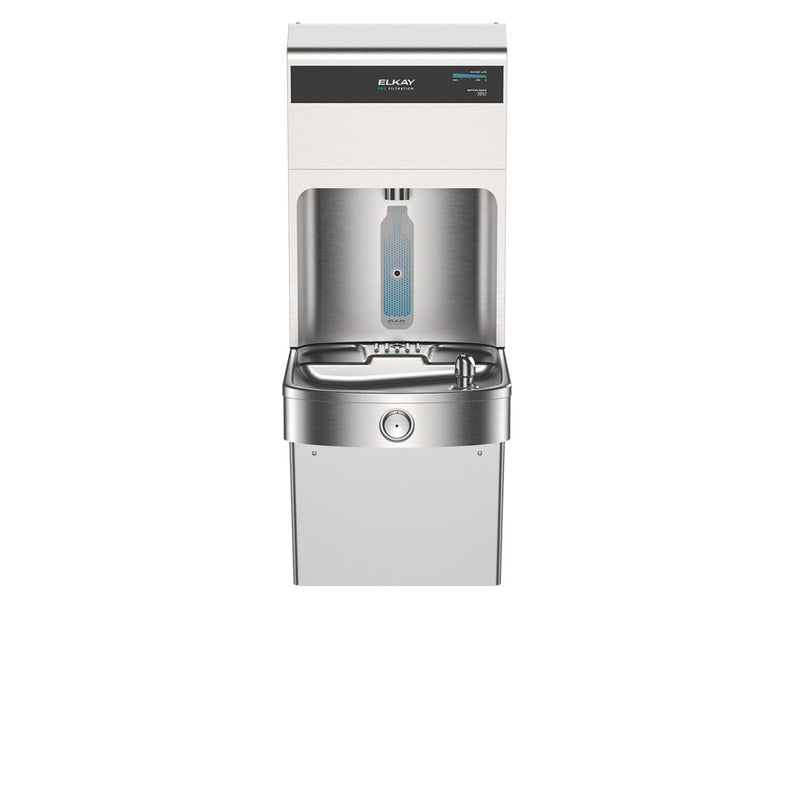

Elkay Pro Filtration VR Bottle Filling Station & Sgl. ADA Cooler, Filtered, 8.0 GPH LVRC8WSPRO-FLP4-FSR5

The Elkay LVRC8WSPRO-FLP4-FSR5 is a filtered bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

Elkay® Pro Filtration™ VR Bottle Filling Station & Sgl. ADA Cooler w/ Lead + Total PFAS** & Sediment Prefilter - SS. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Alcove Light, Automatic Filter Flush, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Pro Filtration System, Real Drain, Stainless Steel Alcove, Top Mount Quick Filter Change, Visual Filter Monitor, Cloud Connected Device, Vandal Resistant, Stage 1 Sediment Prefilter, Two Stage Filtration, Tempered Glass Display Cover, Total PFAS + Lead Filter. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Features

• Compressor: Hermetically-sealed, reciprocating type, single phase.
• Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is
• Cooling Unit: Combination tube-tank type. Continuous copper tubing
• Refrigerant Control: Refrigerant R-134a is controlled by
• Temperature Control: Easily accessible enclosed adjustable thermostat
• Certified Filtration: Certified by IAPMO R&T to NSF/ANSI 42, 53 and 401 to reduce lead, microplastics, cysts, asbestos, turbidity, particulate class 1,
• Top-Access Filter Replacement: Change filters in seconds from the top- minimizing maintenance time and system disruption
• High Capacity Filtration: Delivers filter life capacity that exceeds industry standards, with options up to 20,000 gallons- extending uptime and
• Smart Connected: Remotely track filter status, anticipate maintenance, flush the unit, and monitor bottles saved for sustainability insights
• Automated Filter Startup: Recognizes new filters, automatically resets status lights, and flushes the waterway- reducing installation time and labor
• Interactive Display: Blue LCD display shows remaining filter capacity and 20oz bottles saved - helping teams stay ahead of maintenance and avoid
• Advanced filtration designed to reduce Total PFAS***, featuring a 4,000-gallon capacity for targeted contaminant reduction. Stage 1 sediment

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Is this ADA compliant?

Yes, this model meets ADA / ICC A117.1 accessibility requirements.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 352W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Elkay® Pro Filtration™ VR Bottle Filling Station & Sgl. ADA Cooler
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: LVRC8WSPRO-FLP4-FSR5
• Certifications: ADA, NSF-372, NSF-42, NSF-53, UL-399, UL
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: Yes
• Stations Served: 1
• Bi-Level: No
• Bubbler Style: Vandal Resistant
• Electrical Requirement: 115V/60Hz
• Rated Watts: 352
• Installation Location: Indoor
• Overall Length (in): 18.375
• Overall Width (in): 19.0
• Overall Height (in): 46.875
