Description

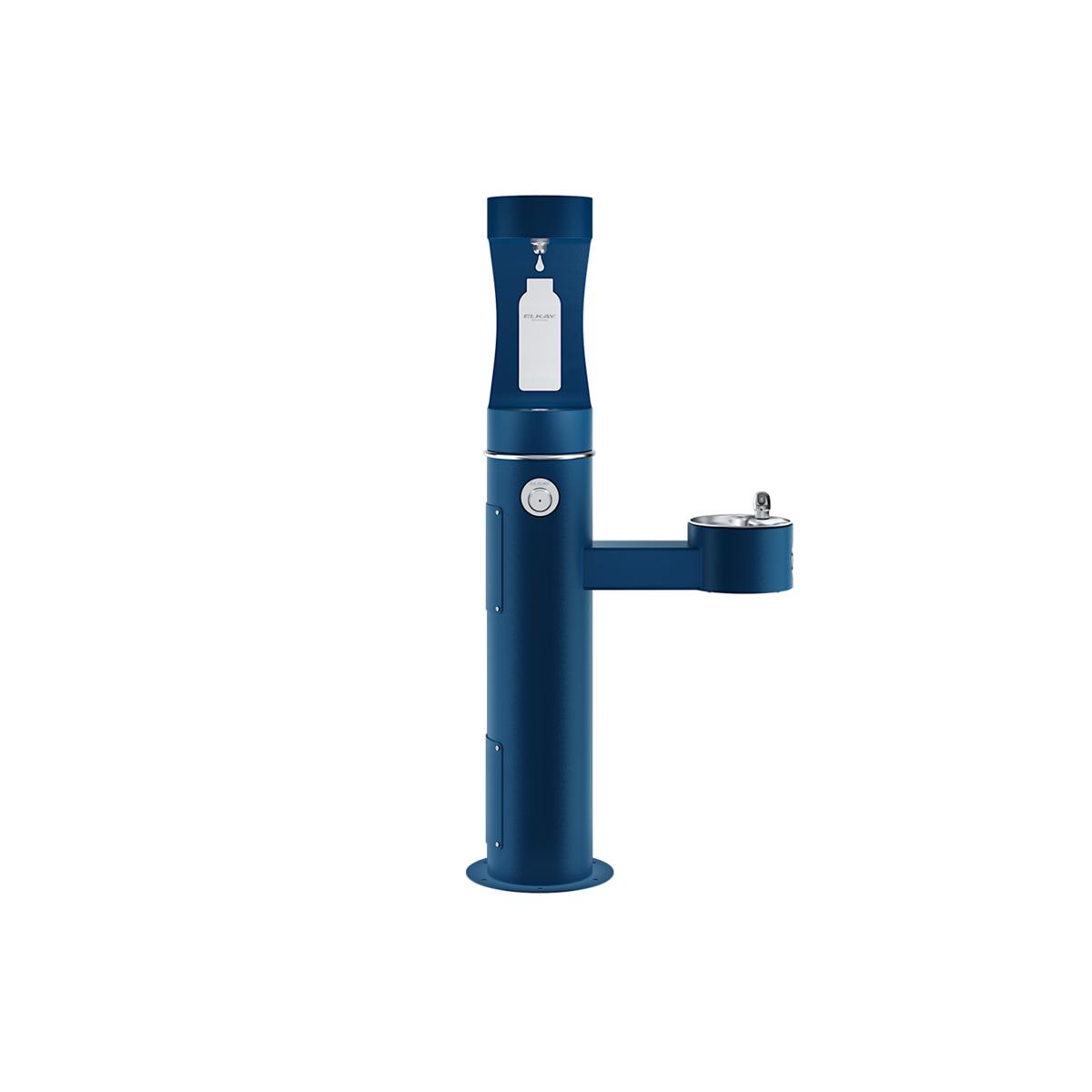

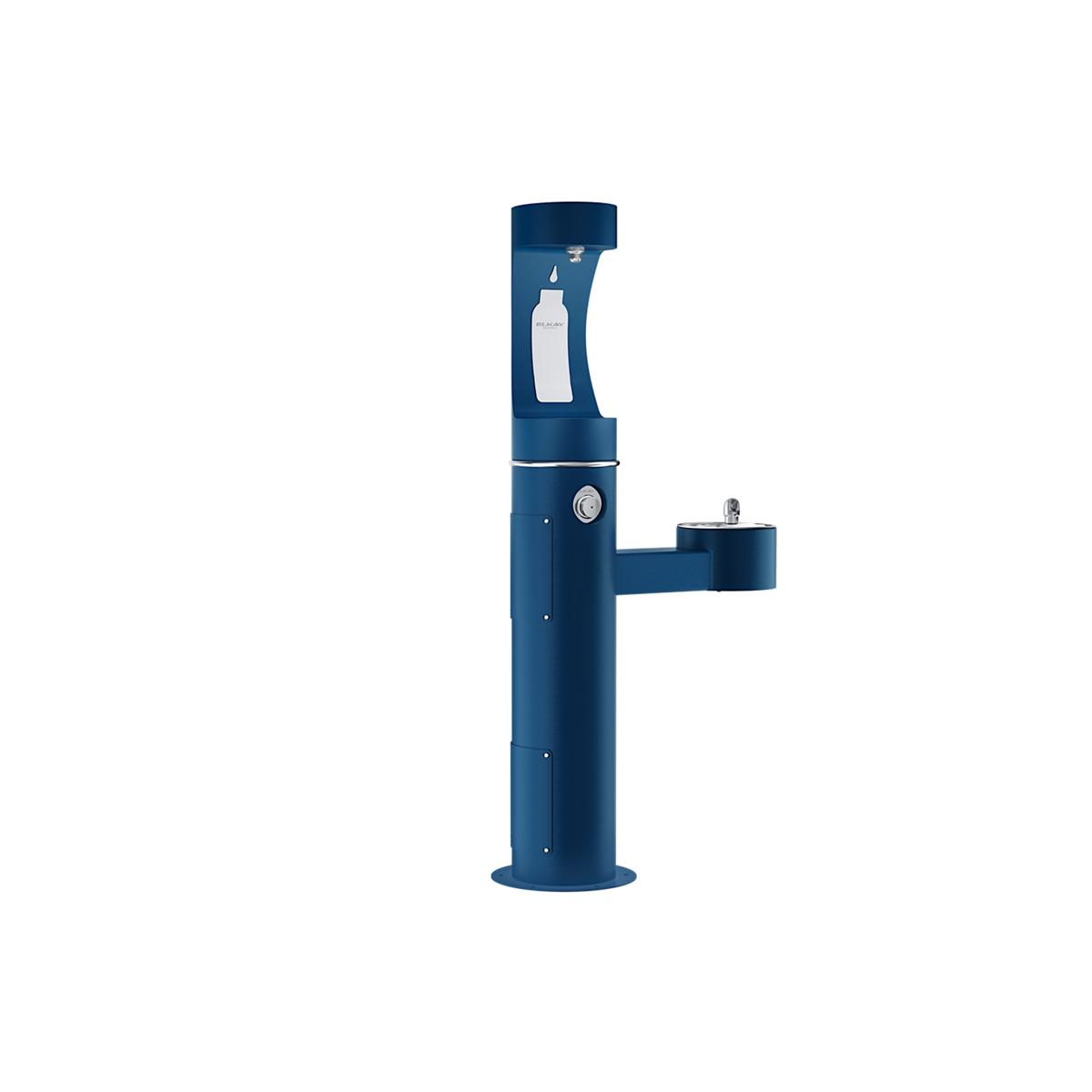

The Elkay LK4420BF1UBLU is a non-filtered bi-level bottle filling station, floor. This model is certified lead-free for potable-water installations.
Outdoor Bottle Filling Stations ideal for educational campuses and recreational areas. Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.
Features
- Corrosion-resistant base material provides the ultimate protection from the elements.
- Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Laminar flow provides clean fill with minimal splash.
- Freeze-resistant options available.
- Available in 12 stunning finishes.
- Ideal for outdoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- Is this refrigerated?
- No, this unit dispenses ambient-temperature water only.
- Does this need an electrician?
- No, it requires no electrical connection.
- How does this mount?
- Floor installation.
Specifications
- Type: Outdoor ezH2O Upper Bottle Filling Station Bi-Level Pedestal Non-Filtered Non-Refrigerated Blue
- Operation: Push Button
- Country of Origin: United States
- MPN: LK4420BF1UBLU
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
- Lead-Free: Yes
- Refrigerated: No
- Filtered: No
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Vandal Resistant
- Electrical Requirement: No Electrical Required
- Installation Location: Outdoor
- Overall Length (in): 14.0
- Overall Width (in): 31.0
- Overall Height (in): 64.0
- Vandal Resistant: Yes
Product Information
Details
| Series | LK4420BF1U | Device Type | Outdoor ezH2O Upper Bottle Filling Station Bi-Level Pedestal Non-Filtered Non-Refrigerated Blue |
| Lead Free | Yes | Operation | Push Button |
| Baa | USA | Electrical requirement | No Electrical Required |
| Installation location | Outdoor | Overall height in | 64.0 in |
| Overall length in | 14.0 in | Overall width in | 31.0 in |
| Vandal resistant | Yes | Bilevel | Yes |
| Bubbler style | Vandal Resistant | Stations | 2 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | ADA |
Compare with similar products
| Series | LK4420BF1U
| LK4430BF1M
| LK4430BF1L
| LK4420BF1U
| LK4420BF1UDB
| LK4420BF1UFRK
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Outdoor ezH2O Upper Bottle Filling Station Bi-Level Pedestal Non-Filtered Non-Refrigerated Blue
| Outdoor ezH2O Middle Bottle Filling Station Tri-Level Pedestal Non-Filtered Non-Refrigerated Evergreen
| Outdoor ezH2O Lower Bottle Filling Station Tri-Level Pedestal Non-Filtered Non-Refrigerated Evergreen
| Outdoor ezH2O Upper Bottle Filling Station Bi-Level Pedestal Non-Filtered Non-Refrigerated Evergreen
| Outdoor ezH2O Upper Bottle Filling Station Bi-Level Pedestal with Pet Station Non-Filtered Non-Refrigerated Evergreen
| Outdoor ezH2O Upper Bottle Filling Station Bi-Level Pedestal Non-Filtered Non-Refrigerated Freeze Resistant Evergreen
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Operation | Push Button
| Push Button
| Push Button
| Push Button
| Push Button
| Push Button
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
|
