Elkay FL10SP Replacement Filter Kit, 10,000 Gal

The Elkay FL10SP is a replacement kit, rated for 10,000 gallons. It is rated to 40°F to 100°F. This model is certified lead-free for potable-water installations.

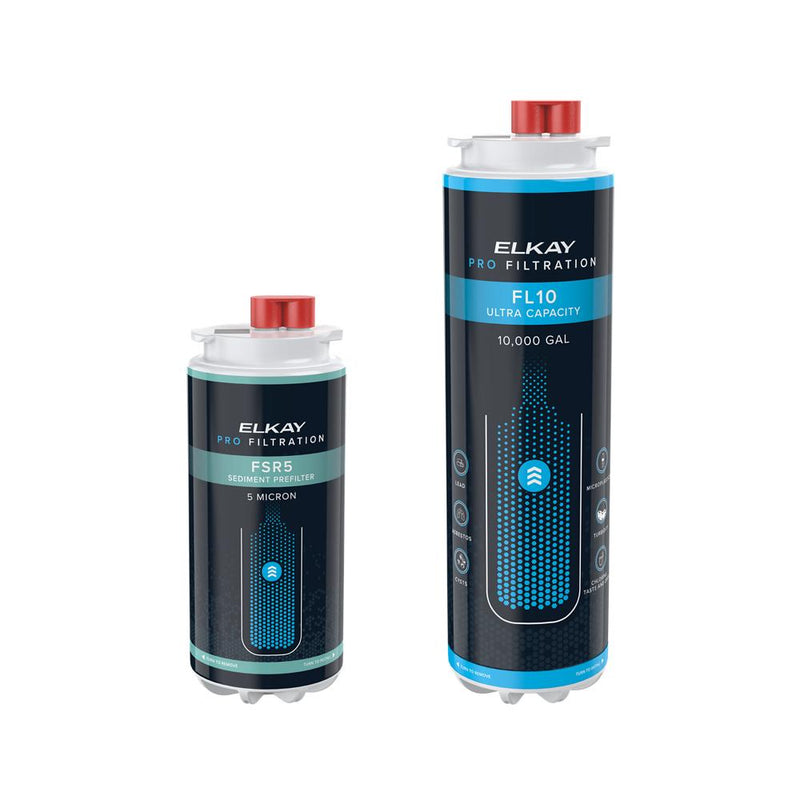

FSR5 + FL10 Dual Pack: Sediment Prefilter + 10,000-Gallon Filter for select Pro Filtration bottle fillers. Overall dimensions are 6-3/16" x 3-1/8" x 11-1/16". Dimensions: 6-3/16" x 3-1/8" x 11-1/16" Shipping Weight: 4 lbs. Flow Rate: 1.5 GPM (5.6 L/m) Capacity: 10000 gal. (37854 L) Temperature: 40-100°F (4-38°C) Initial Pressure Drop: 2-5 PSI (14-34 kPa) Maximum Pressure: 105 PSI (724 kPa) Minimum Pressure: 20 PSI (138 kPa) Water Inlet: 3/8" (9.5mm) O.D. tube Water Outlet: 1/4" (6.4mm) O.D. tube Special Note: Replacement filter exclusively for use in Elkay Pro Filtration Bottle Filling Stations • Two-Stage Filtration System: Sediment prefilter (FSR5) removes dirt, sand and particles first, protecting the main filter and extending its life. • Advanced Contaminant Reduction: FL10 filter is certified by IAPMO R&T to NSF/ANSI 42, 53 & 401 to reduce lead, microplastics, cysts, asbestos, turbidity, particulate class 1, chlorine taste & odor. NSF/ANSI/CAN 372 for lead free compliance. • Long-Lasting Performance: FL10 is rated to 10,000 gallons (up to one year after install) for fewer filter changes. Filter includes antiscalant to prevent scale buildup and reduce maintenance costs. FSR5 prefilter replacement is recommended every 6 months • Automatic Filter Flushing: Elkay Pro Filtration systems detect newly installed filters and automatically flush the system to make the filter ready for use within minutes of install. • Smart System Monitoring: LED status light and automatic filter recognition help you know when it's time to replace the FSR5 and FL10 • Cleaner Water Anywhere: Provides safer, cleaner, great- tasting water from high-traffic Pro Filtration bottle filling stations • Fast, Tool-Free Filter Changes: Both filters install directly at the top of Elkay Pro Filtration bottle filling stations for quick, mess-free replacements in seconds. • Trusted Quality: Backed by over 60 years of Elkay expertise in water delivery and filtration innovation. Included with Product: 10000 gallon replacement filter cartridge plus pre-sediment filter A Century of Tradition and Quality. For more than 100 years, Elkay has been making innovative products and providing exceptional customer care. We take pride in offering plumbing products that make life easier, inspire change and leave the world a better place. Product Compliance: NSF 401 NSF 372 (lead free) NSF 42 NSF 53

Features

• Two-Stage Filtration System: Sediment prefilter (FSR5)
• Advanced Contaminant Reduction: FL10 filter is certified by
• Long-Lasting Performance: FL10 is rated to 10,000 gallons
• Automatic Filter Flushing: Elkay Pro Filtration systems detect
• Smart System Monitoring: LED status light and automatic
• Cleaner Water Anywhere: Provides safer, cleaner, great-
• Fast, Tool-Free Filter Changes: Both filters install directly at
• Trusted Quality: Backed by over 60 years of Elkay expertise

Common Questions

What capacity is this filter?

Rated for 10,000 gallons before replacement is due.

Is this certified for lead reduction?

Yes, it carries NSF/ANSI 372 lead-free certification.

What flow rate does it support?

Rated service flow is 1.5 GPM.

Will this fit my existing filter housing?

Match on system role (Kit) and rated capacity first.

Specifications

• Inlet Size: 3/8"
• Outlet Size: 1/4"
• Connection: Compression
• MPN: FL10SP
• Temperature: 40°F to 100°F
• Certifications: NSF-372, NSF-42, NSF-401
• Lead-Free: Yes
• Filter Capacity (gal): 10000
• Filter Role: Kit
• Fill / Flow Rate (GPM): 1.5
• Min Operating Pressure (PSI): 20
• Max Operating Pressure (PSI): 105
• Overall Length (in): 6.1875
• Overall Width (in): 3.125
• Overall Height (in): 11.0625
