Elkay EWFPF5M Replacement Filter Kit

The Elkay EWFPF5M is a replacement kit. It is rated to 40°F to 100°F.

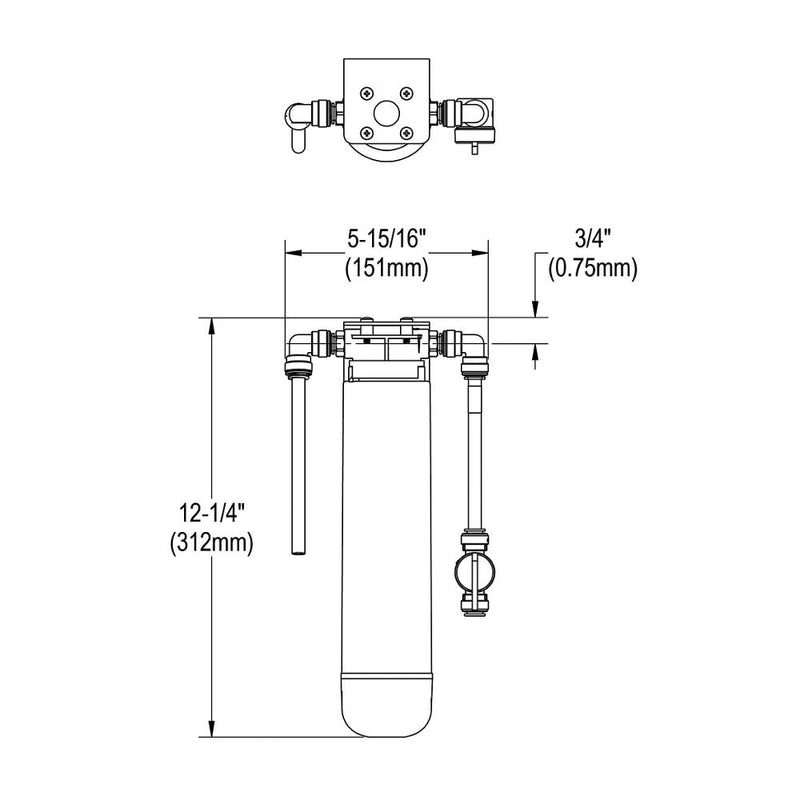

WaterSentry® 5-micron Sediment Pre-filter Filtration Kit. Overall dimensions are 6-3/8" x 4-7/8" x 14". Dimensions: 6-3/8" x 4-7/8" x 14" Shipping Weight: 2 lbs. Flow Rate: 1.5 GPM (5.6 L/m) Capacity: Temperature: 40-100°F (4-38°C) Initial Pressure Drop: 2-5 PSI (14-34 kPa) Maximum Pressure: 105 PSI (724 kPa) Minimum Pressure: 20 PSI (138 kPa) Water Inlet: 3/8" (9.5mm) O.D. tube Water Outlet: 1/4" (6.4mm) O.D. tube • Kit includes prefilter, mounting bracket, tubing and connections for installation • Prefilter reduces dirt, sand and other sediment from water, improving taste and appearance and extending the life of downstream filters • Prefilter is tested and certified to NSF/ANSI 42 and 372 for material safety and structural integrity • 75-gram average weight dirt holding capacity for sediment reduction • For best results, replace prefilter every six months or as needed, depending on water quality • Universal prefilter can be paired with any existing Elkay or non-Elkay water filter to create a two-stage filtration system, preventing clogging of the main filter and reducing particulates in the water • Encapsulated filter cartridge allows for clean and sanitary filter changes • Multi-layer structure helps prevent release of sediment; outer layer reduces large particulates, prolonging cartridge service life, and inner layer reduces smaller debris, ensuring filtration efficiency • Prefilter is installed outside the water delivery unit for quick and easy access A Century of Tradition and Quality. For more than 100 years, Elkay has been making innovative products and providing exceptional customer care. We take pride in offering plumbing products that make life easier, inspire change and leave the world a better place.

Features

• Kit includes prefilter, mounting bracket, tubing and
• Prefilter reduces dirt, sand and other sediment from water,
• Prefilter is tested and certified to NSF/ANSI 42 and 372 for
• 75-gram average weight dirt holding capacity for sediment
• For best results, replace prefilter every six months or as
• Universal prefilter can be paired with any existing Elkay or
• Encapsulated filter cartridge allows for clean and sanitary
• Multi-layer structure helps prevent release of sediment; outer
• Prefilter is installed outside the water delivery unit for quick

Common Questions

What flow rate does it support?

Rated service flow is 1.5 GPM.

Will this fit my existing filter housing?

Match on system role (Kit) and rated capacity first.

Specifications

• Inlet Size: 3/8"
• Outlet Size: 1/4"
• Connection: Compression
• MPN: EWFPF5M
• Temperature: 40°F to 100°F
• Certifications: NSF-42
• Filter Role: Kit
• Micron Rating: 5 micron
• Fill / Flow Rate (GPM): 1.5
• Min Operating Pressure (PSI): 20
• Max Operating Pressure (PSI): 105
• Overall Length (in): 6.375
• Overall Width (in): 4.875
• Overall Height (in): 14.0
