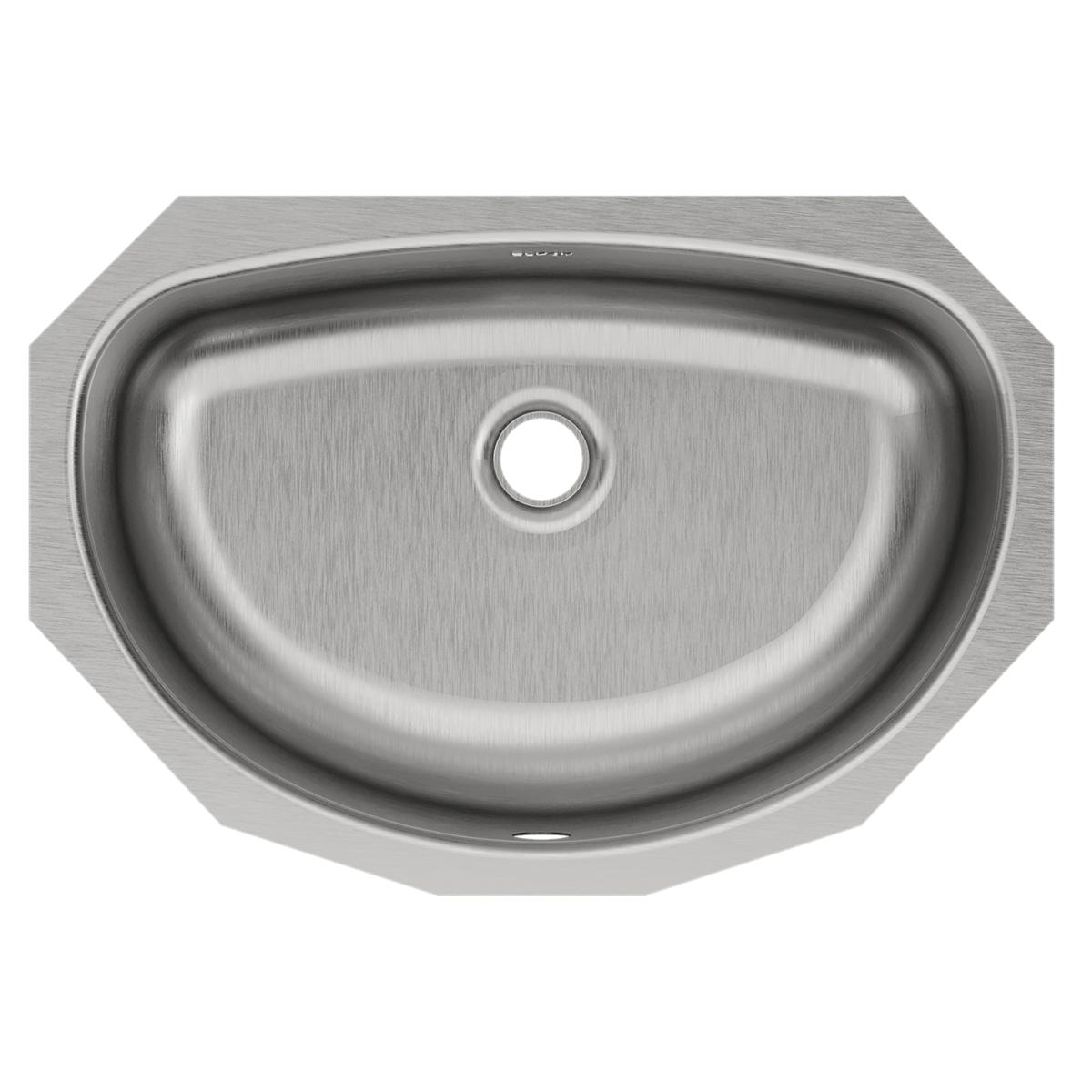

Elkay Asana Stainless Steel 19-1/2" x 13-5/16" x 6-1/4", Single Bowl Undermount Bathroom Sink ELUH1811

The Elkay ELUH1811 is an Asana Stainless Steel 19-1/2" x 13-5/16" x 6-1/4", Single Bowl Undermount Bathroom Sink. It features a stainless steel body.

Introduce inspired beauty into the bath with an Elkay Asana bathroom sink. The smooth curves of this collection create a compelling presence without overpowering the senses. Choose from striking finishes to complement your decor, including Lustrous Satin, Hammered Mirror and Copper.

Features

• REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
• UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• LAVATORY SINKS: Add style to the bath with an elegantly designed sink by Elkay.
• DRAIN OPENING: Sink drain opening measures 1-1/2".
• CABINET SIZE: Minimum cabinet size for this sink is 24".
• INCLUDES: LKF293 overflow Assembly.

Common Questions

What size cabinet does this need?

A minimum 24" wide base cabinet.

Undermount or drop-in?

This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.

What is included in the kit?

This kit includes: LKF293 overflow Assembly.

Specifications

• Type: Asana Stainless Steel 19-1/2" x 13-5/16" x 6-1/4", Single Bowl Undermount Bathroom Sink
• Outlet Size: 1-1/2"
• Body Material: Stainless Steel
• MPN: ELUH1811
• Certifications: ASME A112.19.3/CSA B45.4, IAPMO
• Number of Bowls: 1
• Minimum Cabinet Size (in): 24

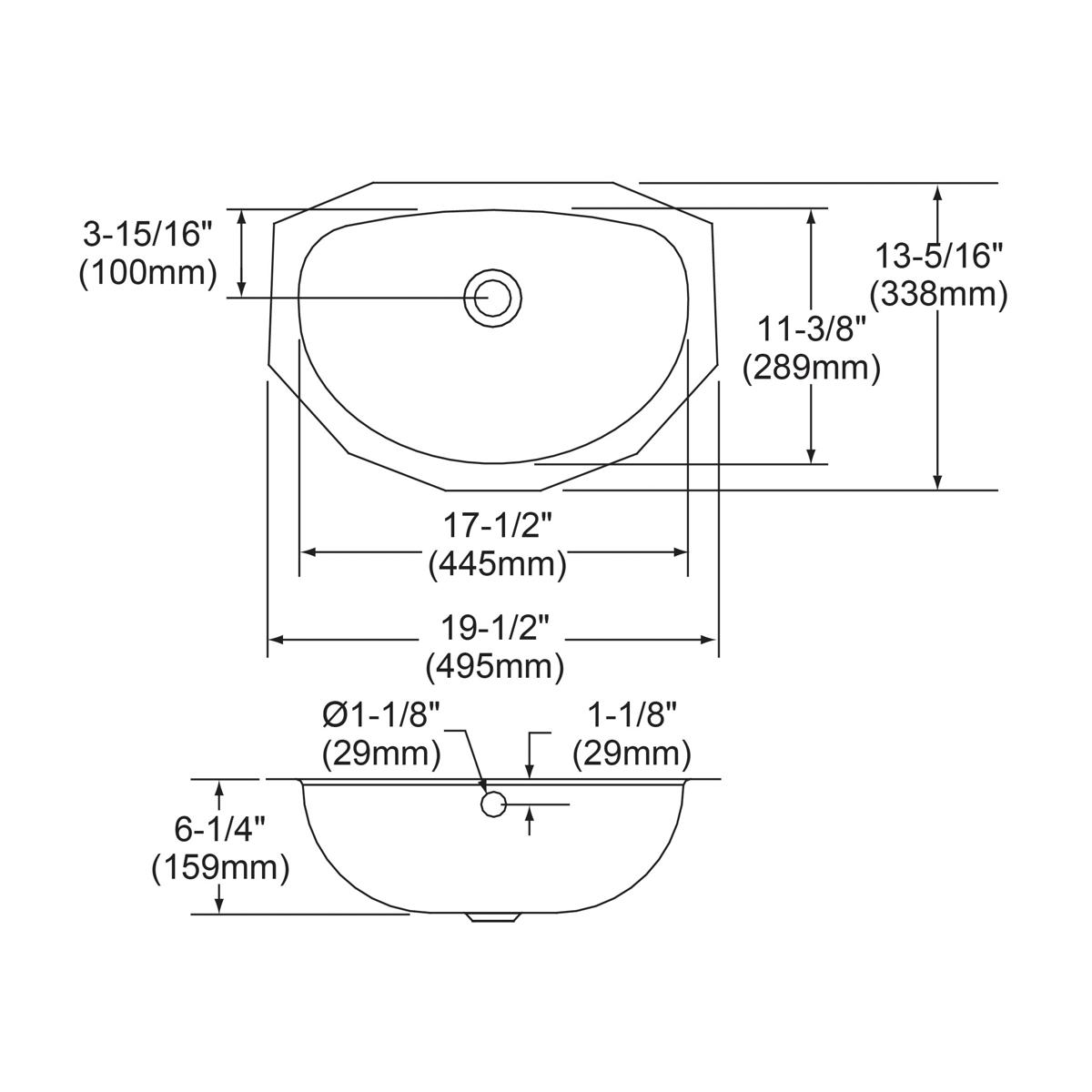

• Bowl Dimensions: 17-1/2" x 11-3/8" x 6-1/4"
• Drain Location: Rear Center
• Gauge: 18
• Sound Deadening: Bottom only pads
• Template Included: Yes
• Mounting Hardware: Undermount brackets sold separately
• Mount Type: Undermount
• Coating / Finish: Lustrous Satin
• Overall Length (in): 19.5
• Overall Width (in): 13.3125
• Overall Height (in): 6.25
• Kit Includes: LKF293 overflow Assembly
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001473.dxf
