Description

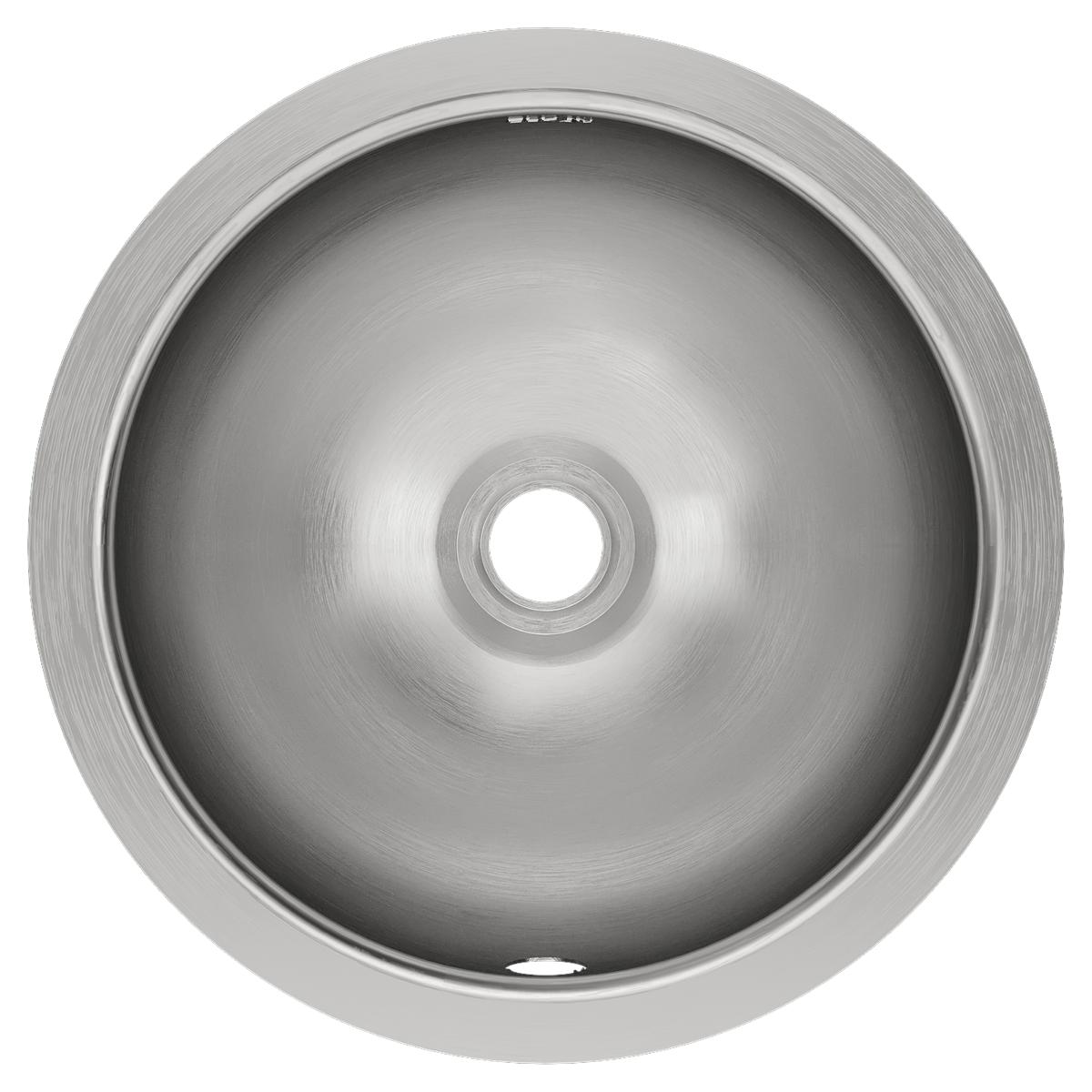

The Elkay ELUH12LV is an Asana Stainless Steel 14-3/8" x 14-3/8" x 6", Single Bowl Undermount Bathroom Sink with Overflow. It features a stainless steel body.
Introduce inspired beauty into the bath with an Elkay Asana bathroom sink. The smooth curves of this collection create a compelling presence without overpowering the senses. Choose from striking finishes to complement your decor, including Lustrous Satin, Hammered Mirror and Copper.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.

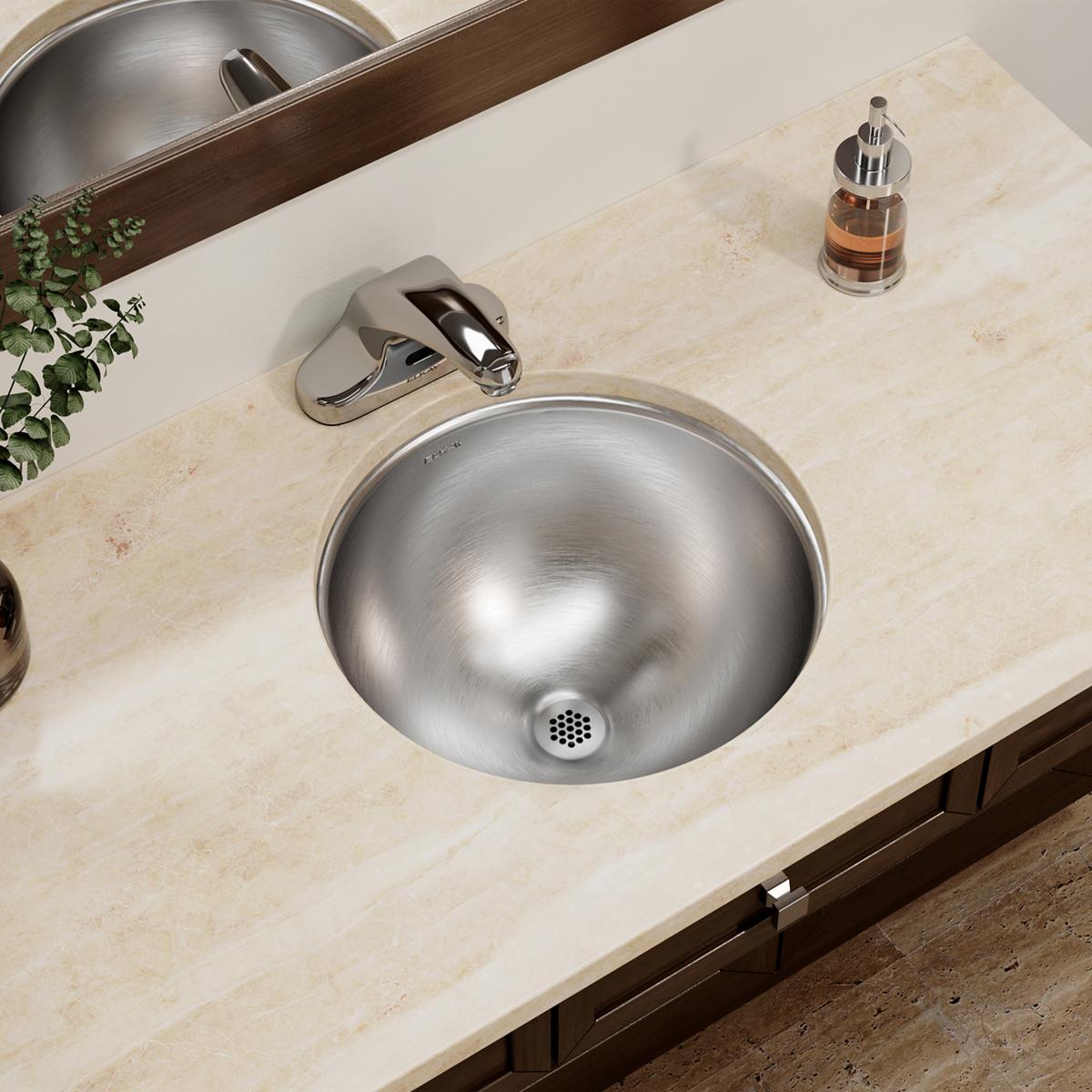

- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- LAVATORY SINKS: Add style to the bath with an elegantly designed sink by Elkay.
- DRAIN OPENING: Sink drain opening measures 1-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 18".
- INCLUDES: LKF295 overflow Assembly.
Common Questions
- What size cabinet does this need?
- A minimum 18" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- What is included in the kit?
- This kit includes: LKF295 overflow Assembly.
Specifications
- Type: Asana Stainless Steel 14-3/8" x 14-3/8" x 6", Single Bowl Undermount Bathroom Sink with Overflow
- Outlet Size: 1-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: ELUH12LV
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
- Number of Bowls: 1
- Minimum Cabinet Size (in): 18

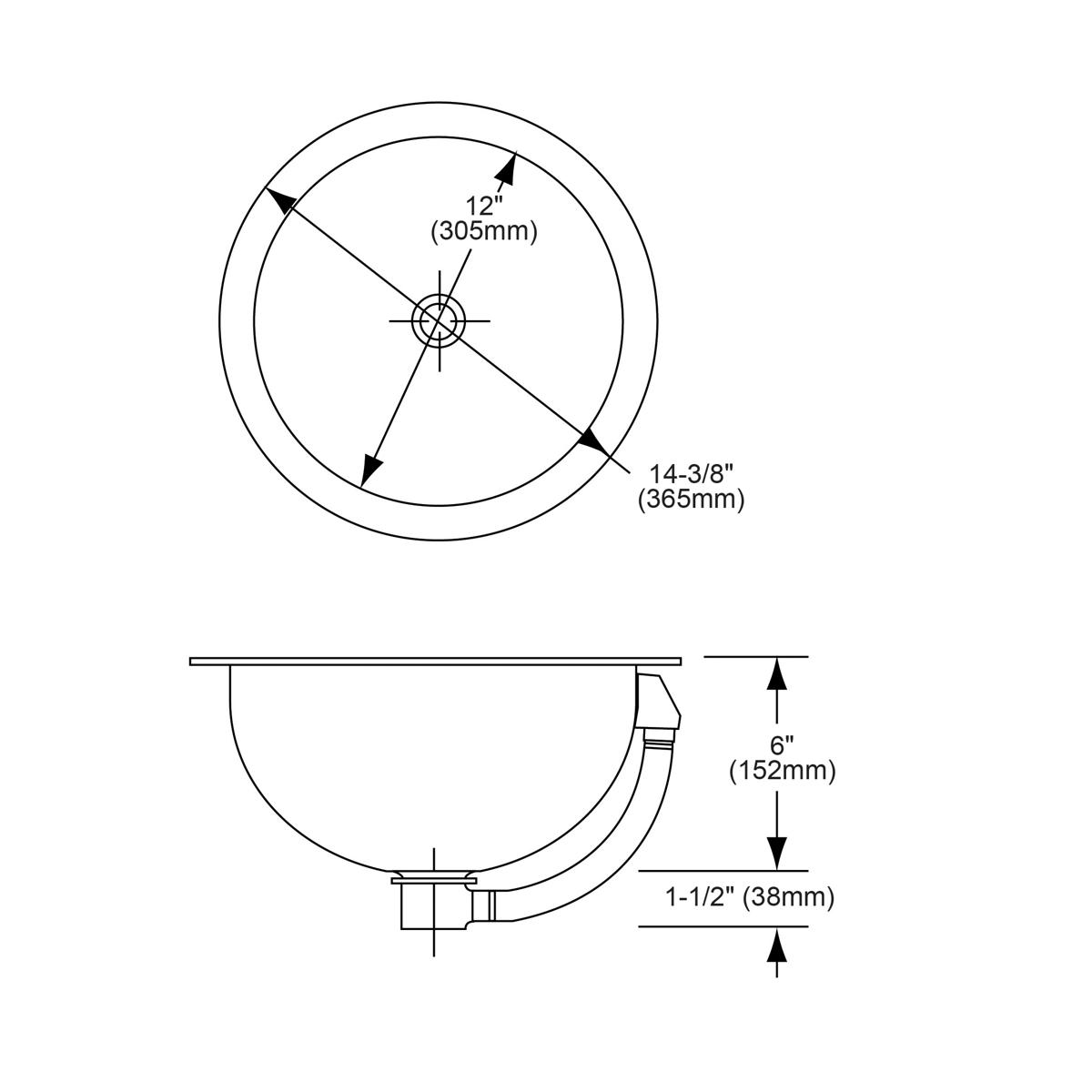

- Bowl Dimensions: 12" x 12" x 6"
- Drain Location: Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Template Included: Yes
- Mounting Hardware: Undermount brackets sold separately
- Mount Type: Undermount
- Coating / Finish: Lustrous Satin
- Overall Length (in): 14.375
- Overall Width (in): 14.375
- Overall Height (in): 6.0
- Kit Includes: LKF295 overflow Assembly
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000000596.dxf
Product Information
Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | ELUH12LV | Device Type | Asana Stainless Steel 14-3/8" x 14-3/8" x 6", Single Bowl Undermount Bathroom Sink with Overflow |
| Body Material | Stainless Steel | Contents | LKF295 overflow Assembly |
| Baa | USA | Coating | Lustrous Satin |
| Mount type | Undermount | Overall height in | 6.0 in |
| Overall length in | 14.375 in | Overall width in | 14.375 in |
| Bowl count | 1 | Bowl dimensions | 12" x 12" x 6" |
| Cutout template url | View | Drain location | Center |
| Gauge | 18 | Minimum cabinet size in | 18 |
| Mounting hardware | Undermount brackets sold separately | Sound deadening | Bottom only pads |
| Template included | Yes | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
| ADA | — |
