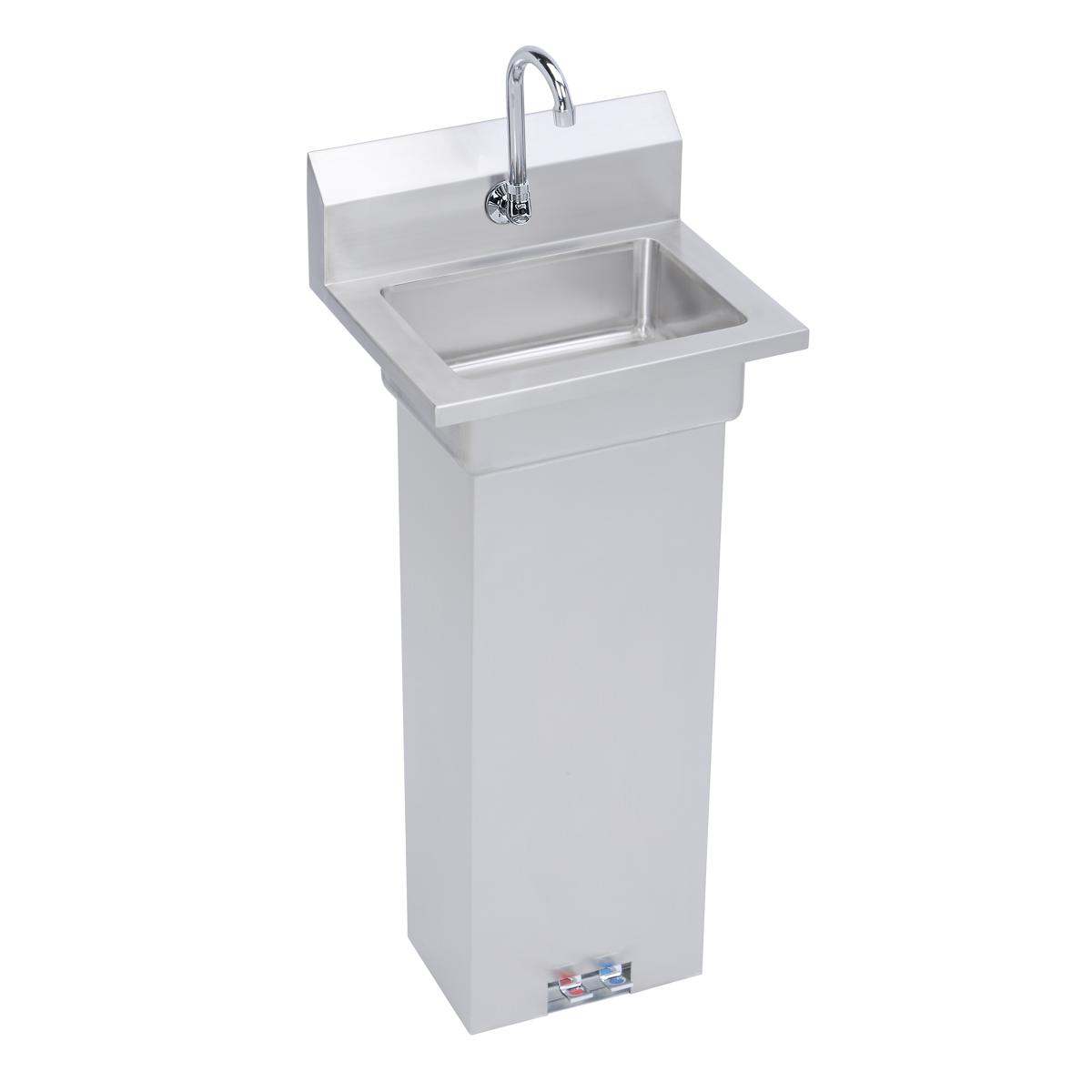

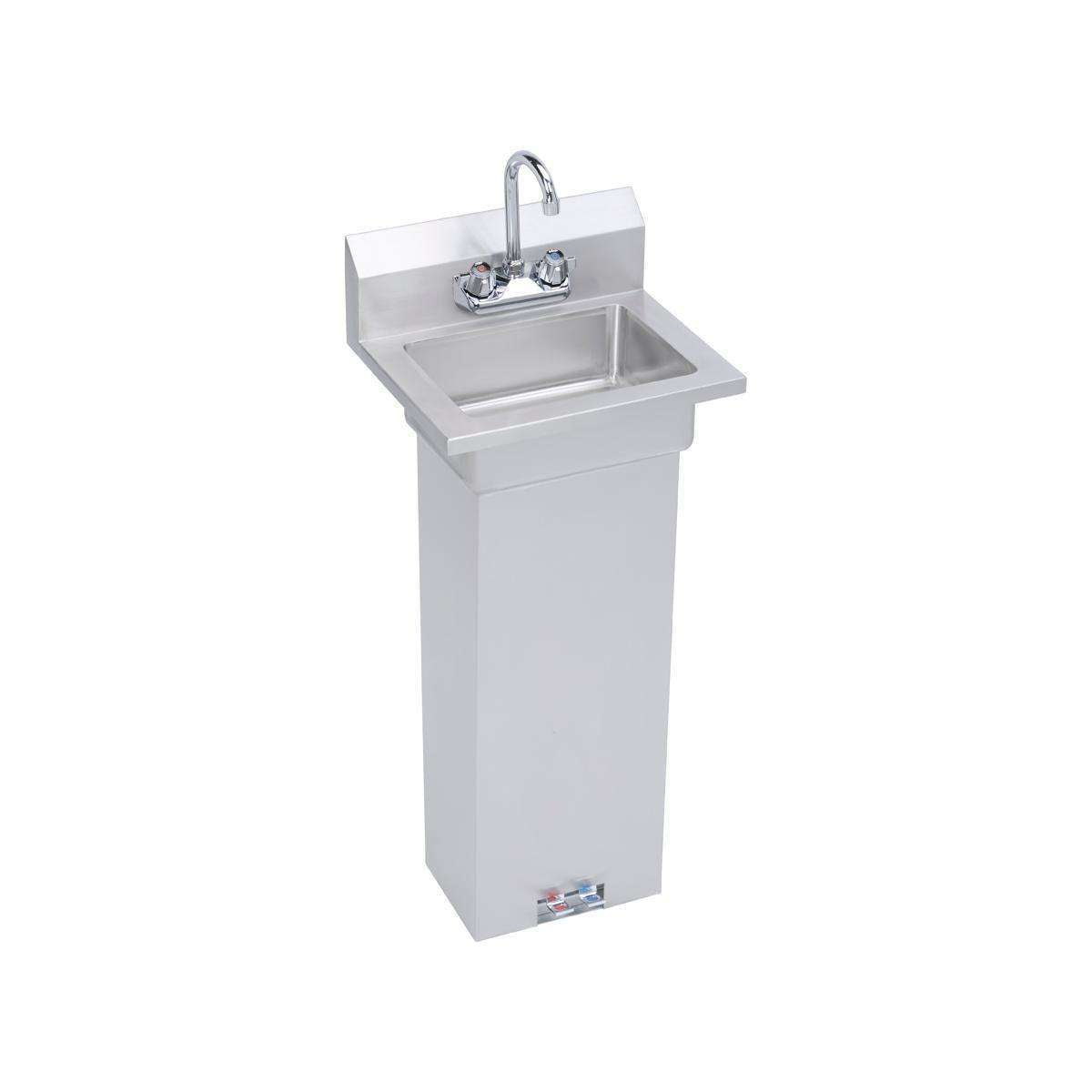

The Elkay EHS-18-PEDX is a Stainless Steel 18" x 14-1/2" x 42" 18 Gauge Hand Sink with Pedestal Base Foot Valve and Faucet. It features a stainless steel body. This model is certified lead-free for potable-water installations.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- High quality 18 gauge, type 3 series stainless steel.
- Pedestal base and foot valve for easy, hands free operation.
- Lead free faucet and strainer included with product.
- NSF Certified
- Full length 6" backsplash.
- 1-1/2" drain opening.
Common Questions
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 2.
- What is included in the kit?
- This kit includes: Pedestal base, foot valve, faucet, and strainer..
Specifications
- Type: Stainless Steel 18" x 14-1/2" x 42" 18 Gauge Hand Sink with Pedestal Base Foot Valve and Faucet
- Outlet Size: 1-1/2"
- Body Material: Stainless Steel
- Country of Origin: China
- MPN: EHS-18-PEDX
- Certifications: ASME A112.19.3/CSA B45.4, NSF-2
- Lead-Free: Yes
- Number of Bowls: 1
- Bowl Dimensions: 14" x 10" x 5"
- Drain Location: Center
- Gauge: 18
- Mounting Hardware: Included
- Mount Type: Floor
- Coating / Finish: #4 Finish
- Faucet Holes: 2
- Overall Length (in): 18.0
- Overall Width (in): 14.5
- Overall Height (in): 42.0
- Kit Includes: Pedestal base, foot valve, faucet, and strainer.
Product Information
| SKU | UPC | Country of Origin | Spec Sheet |
|---|---|---|---|
| EHS-18-PEDX | 094902677996 | China | Download |

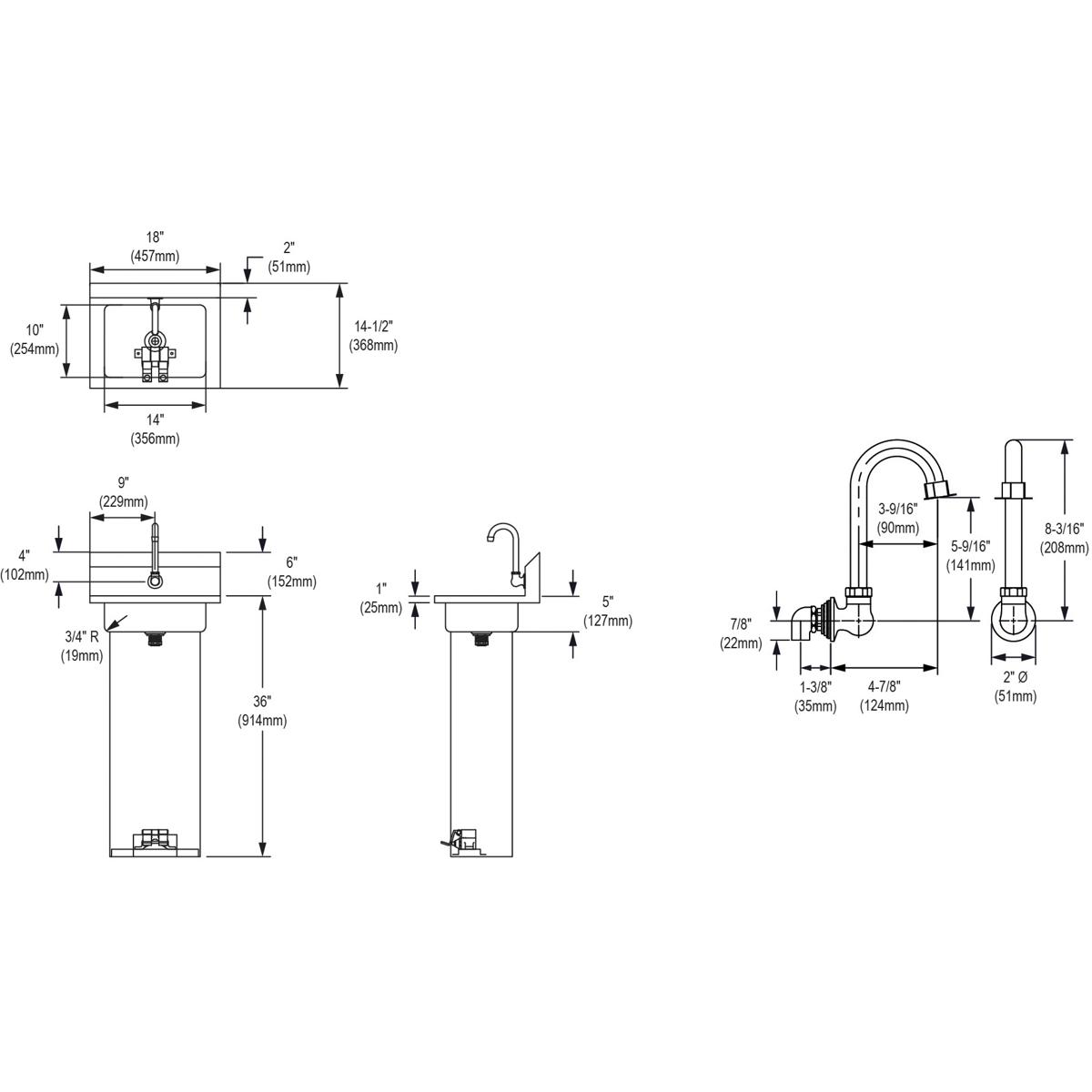

Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | EHS-18-PEDX | Device Type | Stainless Steel 18" x 14-1/2" x 42" 18 Gauge Hand Sink with Pedestal Base Foot Valve and Faucet |
| Lead Free | Yes | Body Material | Stainless Steel |
| Contents | Pedestal base, foot valve, faucet, and strainer. | Coating | #4 Finish |
| Hole count | 2 | Mount type | Floor |
| Overall height in | 42.0 in | Overall length in | 18.0 in |
| Overall width in | 14.5 in | Bowl count | 1 |
| Bowl dimensions | 14" x 10" x 5" | Drain location | Center |
| Gauge | 18 | Mounting hardware | Included |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-2 |
