Description

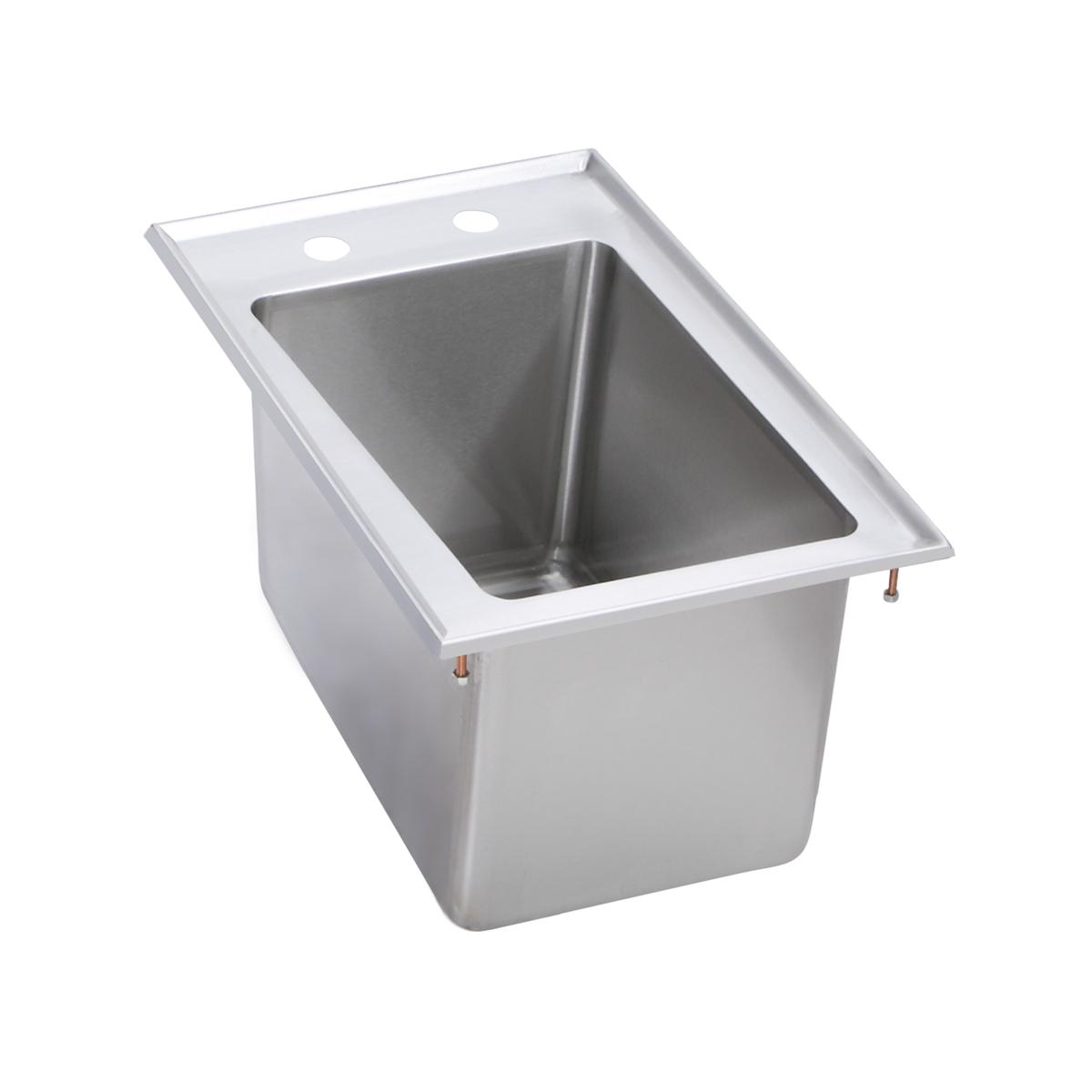

The Elkay DI10126X is a Stainless Steel 13" x 17" x 6" 18 Gauge One Compartment Drop-In Sink. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- High quality 18 gauge, type 3 series stainless steel.
- One set of 8" on center faucet holes, deck mounted.
- 3-1/2" drain opening.
- NSF certified.
- Kit includes faucet and strainer; save the time and cost of having to purchase each item separately.
Common Questions
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 2.
- What is included in the kit?
- This kit includes: Faucet and strainer..
Specifications
- Type: Stainless Steel 13" x 17" x 6" 18 Gauge One Compartment Drop-In Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: China
- MPN: DI10126X
- Certifications: ASME A112.19.3/CSA B45.4, NSF-2, ADA
- Number of Bowls: 1
- Bowl Dimensions: 10" x 12" x 6"
- Drain Location: Center
- Gauge: 18
- Template Included: No
- Mounting Hardware: Included
- Mount Type: Drop-In
- Coating / Finish: #4 Finish
- Faucet Holes: 2
- Overall Length (in): 13.0
- Overall Width (in): 17.0
- Overall Height (in): 6.0
- Kit Includes: Faucet and strainer.
Product Information
| SKU | UPC | Country of Origin | Spec Sheet |
|---|---|---|---|
| DI10126X | 094902045153 | China | Download |
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | DI10126X | Device Type | Stainless Steel 13" x 17" x 6" 18 Gauge One Compartment Drop-In Sink |
| Body Material | Stainless Steel | Contents | Faucet and strainer. |
| Coating | #4 Finish | Hole count | 2 |
| Mount type | Drop-In | Overall height in | 6.0 in |
| Overall length in | 13.0 in | Overall width in | 17.0 in |
| Bowl count | 1 | Bowl dimensions | 10" x 12" x 6" |
| Drain location | Center | Gauge | 18 |
| Mounting hardware | Included | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-2 |
| ADA | — |
