Specifications
Description

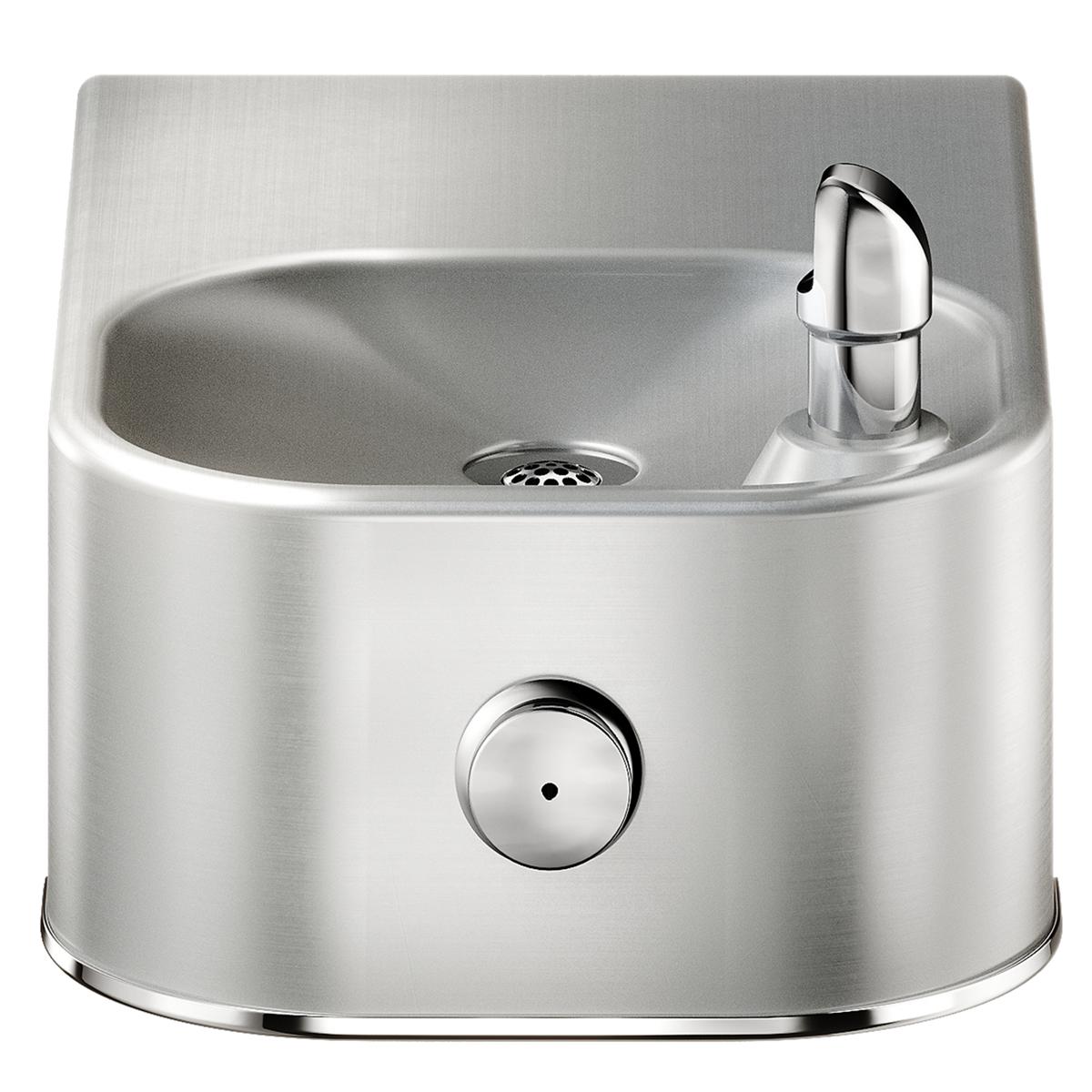

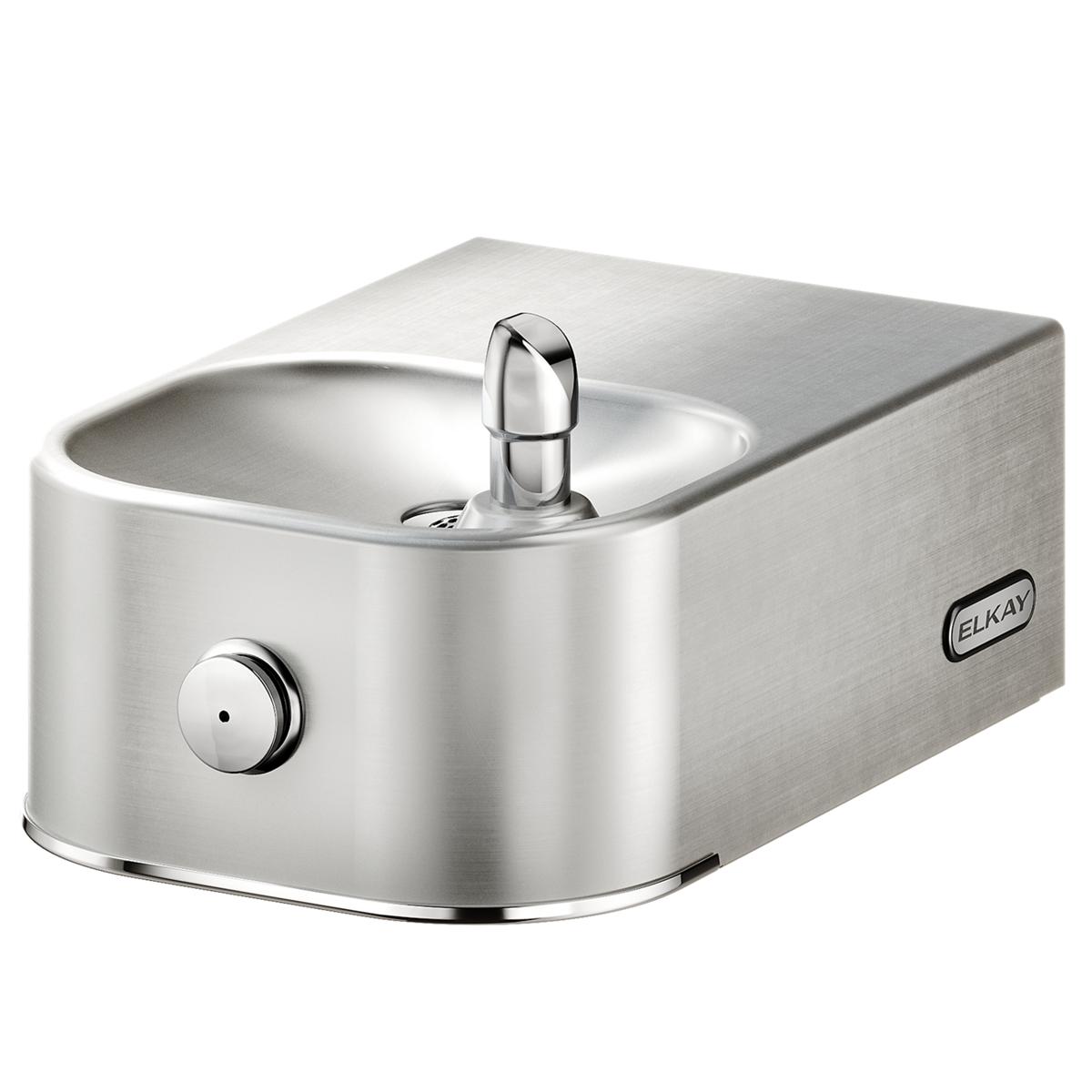

The Elkay EDFP214FPK is a non-filtered drinking fountain, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.
Soft Sides® architectural drinking fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface.
Features
- Contoured fountain provides an attractive and safe product.
- Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.

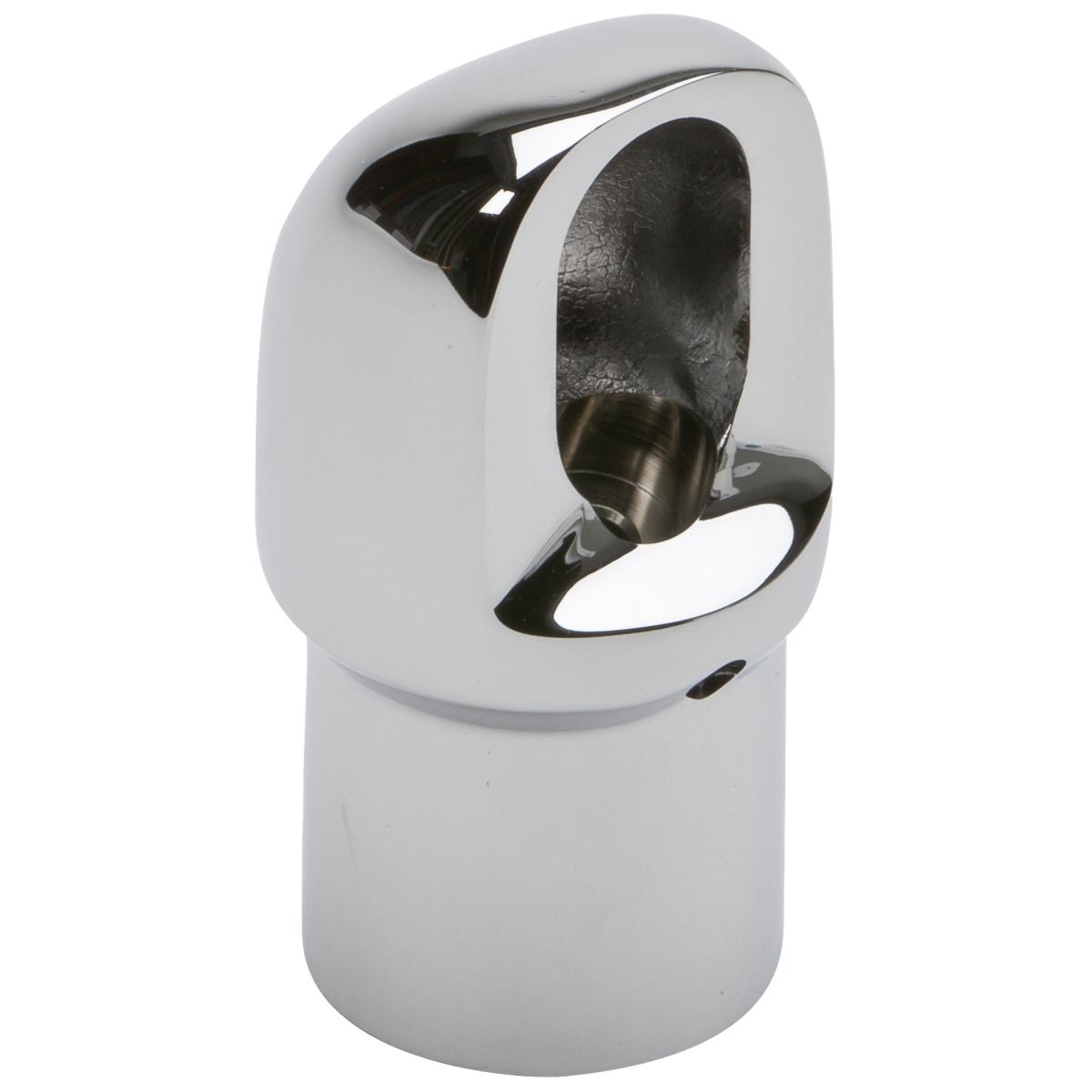

- Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Stainless steel finish is corrosion resistant and attractive.
- Bottom cover plate conceals plumbing and internal components.
- Freeze-resistant models extend outdoor usage season.
- Rated for indoor or outdoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Is this ADA compliant?
- Yes, this model meets ADA / ICC A117.1 accessibility requirements.
- Is this refrigerated?
- No, this unit dispenses ambient-temperature water only.
- Does this need an electrician?
- No, it requires no electrical connection.
- How does this mount?
- Wall-Mount installation.
Specifications
- Type: Soft Sides Single ADA Fountain Non-Filtered Non-Refrigerated Freeze Resistant Stainless
- Body Material: Stainless Steel
- Operation: Push Button
- Country of Origin: United States
- MPN: EDFP214FPK
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
- Lead-Free: Yes
- Refrigerated: No
- Filtered: No
- Stations Served: 1
- Bi-Level: No
- Bubbler Style: Vandal Resistant
- Electrical Requirement: No Electrical Required
- Installation Location: Indoor/Outdoor

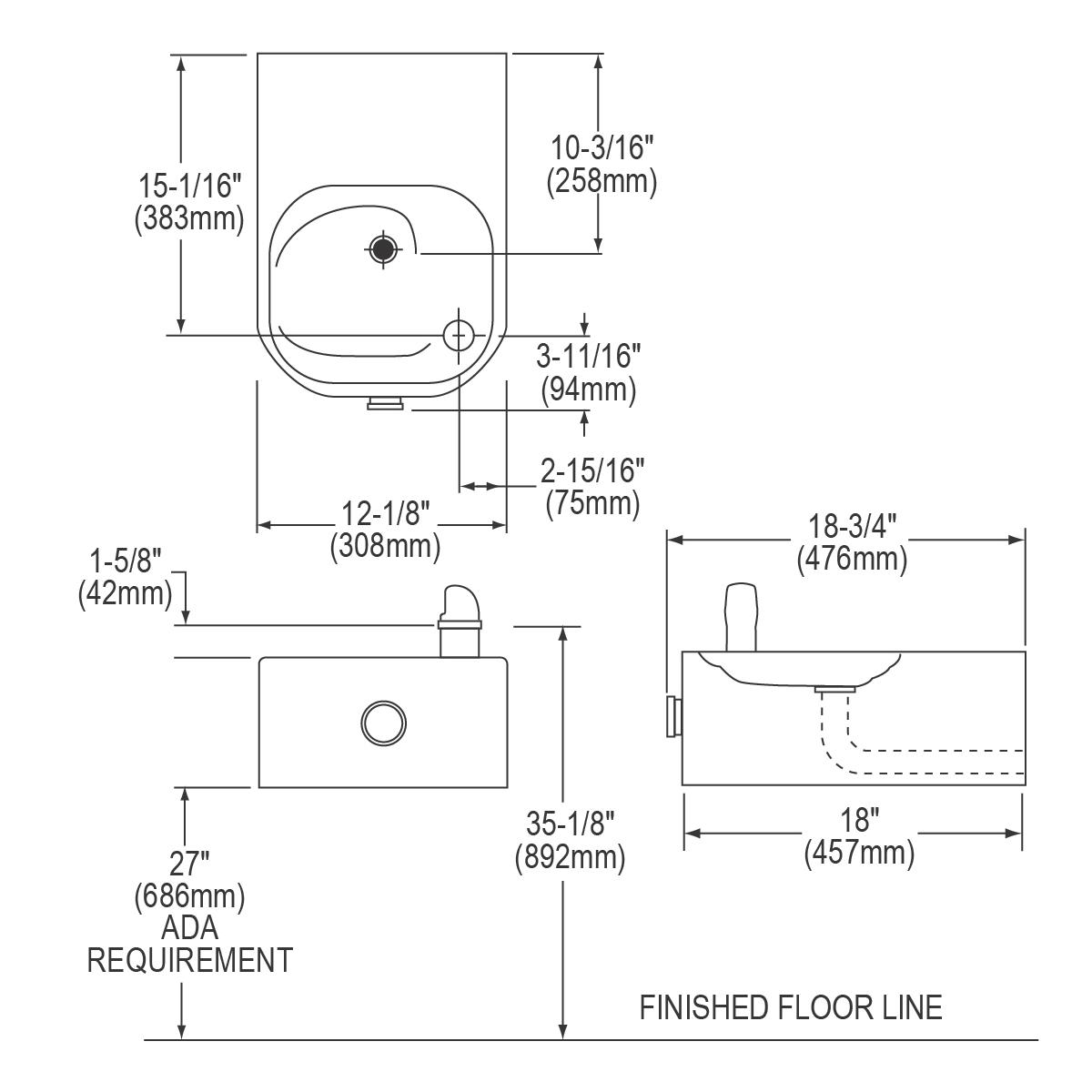

- Overall Length (in): 12.125
- Overall Width (in): 18.75
- Overall Height (in): 6.5
- Freeze Resistant: Yes
Product Information
Details
| Series | EDFP214FPK | Device Type | Soft Sides Single ADA Fountain Non-Filtered Non-Refrigerated Freeze Resistant Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Push Button | Freeze Proof | Yes |
| Baa | USA | Electrical requirement | No Electrical Required |
| Installation location | Indoor/Outdoor | Overall height in | 6.5 in |
| Overall length in | 12.125 in | Overall width in | 18.75 in |
| Bubbler style | Vandal Resistant | Stations | 1 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | ADA |
Compare with similar products
| Freeze Proof | Yes | — | — | — | — | Yes |
| Series | EDFP214FPK
| EZS8L
| EZS8S
| EZS8LF
| EHWM214C
| ECDFPW314FPK
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Soft Sides Single ADA Fountain Non-Filtered Non-Refrigerated Freeze Resistant Stainless
| Wall Mount ADA Cooler Non-filtered Refrigerated Light Gray Granite
| Wall Mount ADA Cooler Non-filtered Refrigerated Stainless
| Wall Mount ADA Cooler Non-filtered Refrigerated Glass Filler Prepped Light Gray Granite
| Soft Sides Heavy Duty Single Fountain Non-Filtered Non-Refrigerated Stainless
| Slimline Soft Sides Fountain Non-Filtered Non-Refrigerated Freeze Resistant Stainless Steel
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Stainless Steel
| — | Stainless Steel
| — | Stainless Steel
| Stainless Steel
|
| Operation | Push Button
| Pushbar
| Pushbar
| Pushbar
| Push Button
| Push Button
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
|
