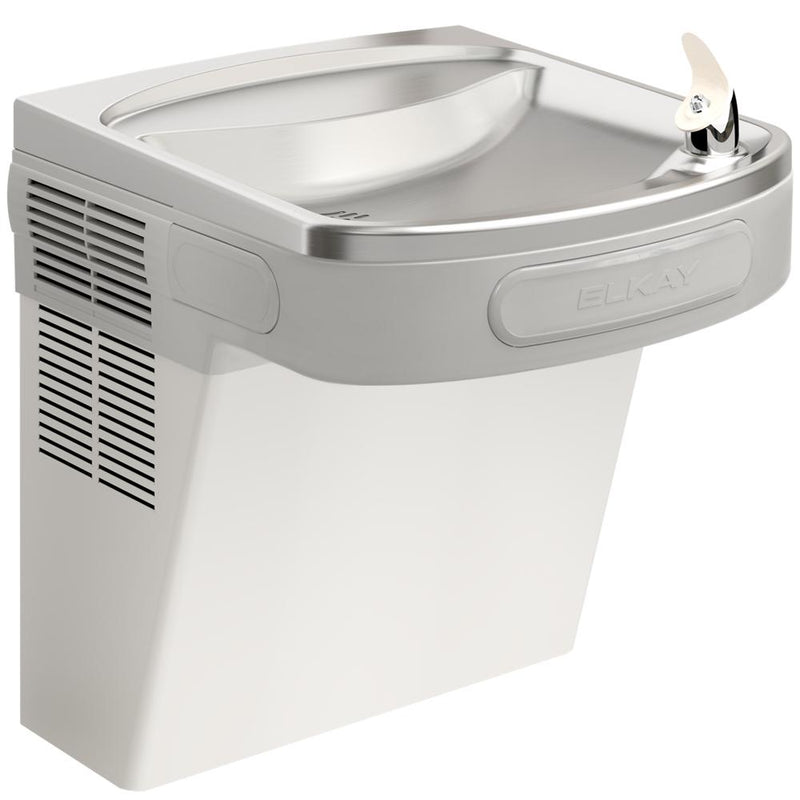

Elkay Wall Mount ADA Cooler, Non-Filtered, 8.0 GPH, Stainless Steel EZS8S

The Elkay EZS8S is a non-filtered water cooler, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

Wall Mount ADA Cooler Non-filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Front Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Features

• Compressor: Hermetically-sealed, reciprocating type,
• Condenser: Fan cooled, copper tube with aluminum
• Cooling Unit: Combination tube-tank type. Continuous
• Refrigerant Control: Refrigerant R-134a is controlled by
• Temperature Control: Easily accessible enclosed

Common Questions

Is this unit filtered?

No, this is a non-filtered unit.

Is this ADA compliant?

Yes, this model meets ADA / ICC A117.1 accessibility requirements.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 370W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Wall Mount ADA Cooler Non-filtered Refrigerated Stainless
• Body Material: Stainless Steel
• Operation: Pushbar
• MPN: EZS8S
• Certifications: ASME A112.19.3/CSA B45.4, ADA, NSF-61, NSF-372, UL-399, UL
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: No
• Stations Served: 1
• Bi-Level: No
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 370
• Full Load Amps: 5.0
• Installation Location: Indoor
• Market Segment: Classroom
• Overall Length (in): 18.375
• Overall Width (in): 19.0
• Overall Height (in): 19.8125
