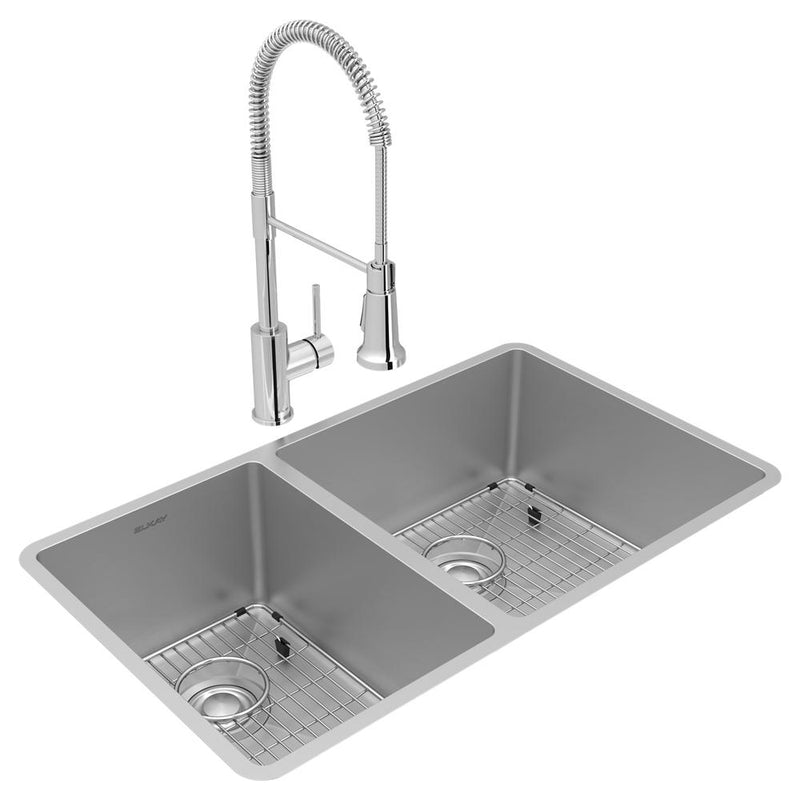

The Elkay ECTRU32179LTFBC is a Crosstown 18 Gauge Stainless Steel 31-1/2" x 18-1/2" x 9" 40/60 Double Bowl Undermount Sink & Faucet Kit with Bottom Grid & Drain. It features a stainless steel body. This model is certified lead-free for potable-water installations.
The Elkay Crosstown® collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Features
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty
- Sound Guard®: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean
- EXTRA-DEEP BOWL: High-capacity 12" bowl offers room inside for scrubbing stains from jerseys and cleaning paintbrushes after little masterpieces
- CROSS BREAKS: Creased accent lines inside the bowl provide a professional appearance
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows
Common Questions
- What size cabinet does this need?
- A minimum 36" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.
- What is included in the kit?
- This kit includes: Custom fit bottom grid CTXBG1515 and CTXBG1015 2xdeep strainer drain LKDD and faucet LKAV2061CR.
Specifications
-
Type: Crosstown® 18 Gauge Stainless Steel 31-1/2" x 18-1/2" x 9" 40/60 Double Bowl Undermount Sink & Faucet Kit with Bottom Grid & Drain
-
Outlet Size: 3-1/2"
-
Body Material: Stainless Steel
-
MPN: ECTRU32179LTFBC
-
Certifications: ASME A112.18.1/CSA B125.1, ASME A112.19.3/CSA B45.4, ASME A112.18.2, NSF-61, NSF-372, IAPMO
-
Lead-Free: Yes
-
Number of Bowls: 2
-
Bowl Configuration: Offset 40/60
-
Minimum Cabinet Size (in): 36
-
Bowl Dimensions: 12" x 17" x 9";17" x 17" x 9"
-
Drain Size, Bowl 2 (in): 3.5
-
Drain Location: Rear Center
-
Gauge: 18
-
Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
-
Template Included: Yes
-
Mounting Hardware: Included
-
Mount Type: Undermount
-
Coating / Finish: Polished Satin
-
Overall Length (in): 31.5
-
Overall Width (in): 18.5
-
Overall Height (in): 9.0
-
Kit Includes: Custom fit bottom grid CTXBG1515 and CTXBG1015 2xdeep strainer drain LKDD and faucet LKAV2061CR
