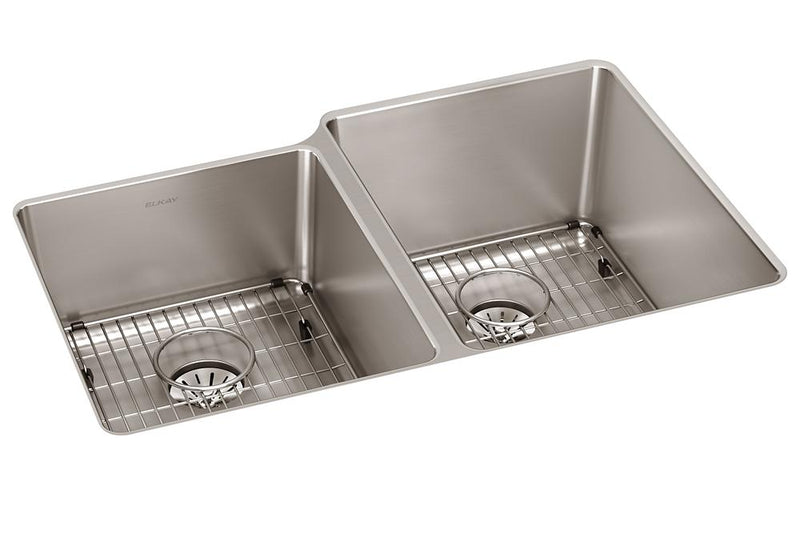

The Elkay ELUHH3120LTPDBG is a Lustertone Iconix 16 Gauge Stainless Steel 31-1/4" x 20-1/2" x 9" Double Bowl Undermount Sink Kit with Left Perfect Drain. It features a stainless steel body.
An Elkay Lustertone Iconix® stainless steel sink brings the winning combination of a sophisticated look and a forgiving finish to your home. The modern bowl shape is perfect for every kitchen. Lustertone Iconix delivers style for today, tomorrow and every day. Deeper scratches are repairable with an Elkay stainless steel restoration kit.
Features
- SLEEK MODERN DESIGN: The clean lines of this modern sink add a touch of sophistication to the kitchen
- 16-GAUGE STAINLESS STEEL: Premium 16-gauge thickness and Type 304 stainless steel for immense durability, performance and beauty
- TIGHT CORNERS: Corners give the sink a modern look, making the sink easy to clean
- Perfect Drain®: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain
- FORGIVING FINISH: Finish is scratch resistant, standing up to everyday use. Deep scratches are repairable. Grain radiates light for a luminous look
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop
- TWO BOWLS, DIFFERENT SIZES: Use bowls independently; wash dishes on one side, while keeping the other bowl available for smaller tasks
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below
- KIT INCLUDES: ELUHH3120LTPD sink, one EBG1214 bottom grid, EBG1216 bottom grid, two LKPD1 Perfect Drains and strainers; conveniently packaged together to save you time
Common Questions
- What size cabinet does this need?
- A minimum 36" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 16-gauge mean?
- 16 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.
- What is included in the kit?
- This kit includes: EBG1216 Bottom Grid EBG1214 Bottom Grid LKPD1 Perfect Drains and Strainers (2).
Specifications
-
Type: Lustertone Iconix® 16 Gauge Stainless Steel 31-1/4" x 20-1/2" x 9" Double Bowl Undermount Sink Kit with Left Perfect Drain®
-
Outlet Size: 3-3/8"
-
Body Material: Stainless Steel
-
MPN: ELUHH3120LTPDBG
-
Certifications: ASME A112.19.3/CSA B45.4, ASME A112.18.2, IAPMO
-
Number of Bowls: 2
-
Minimum Cabinet Size (in): 36
-
Bowl Dimensions: 13-1/2" x 16" x 8";14" x 18" x 9"
-
Drain Size, Bowl 2 (in): 3.375
-
Drain Location: Rear Center
-
Gauge: 16
-
Sound Deadening: Sides and Bottom pads
-
Template Included: Yes
-
Mounting Hardware: Undermount brackets sold separately
-
Drain Style: Flush-Mount Gap-Free
-
Mount Type: Undermount
-
Coating / Finish: Luminous Satin
-
Overall Length (in): 31.25
-
Overall Width (in): 20.5
-
Overall Height (in): 10.5625
-
Kit Includes: EBG1216 Bottom Grid EBG1214 Bottom Grid LKPD1 Perfect Drains and Strainers (2)
