Specifications
Description

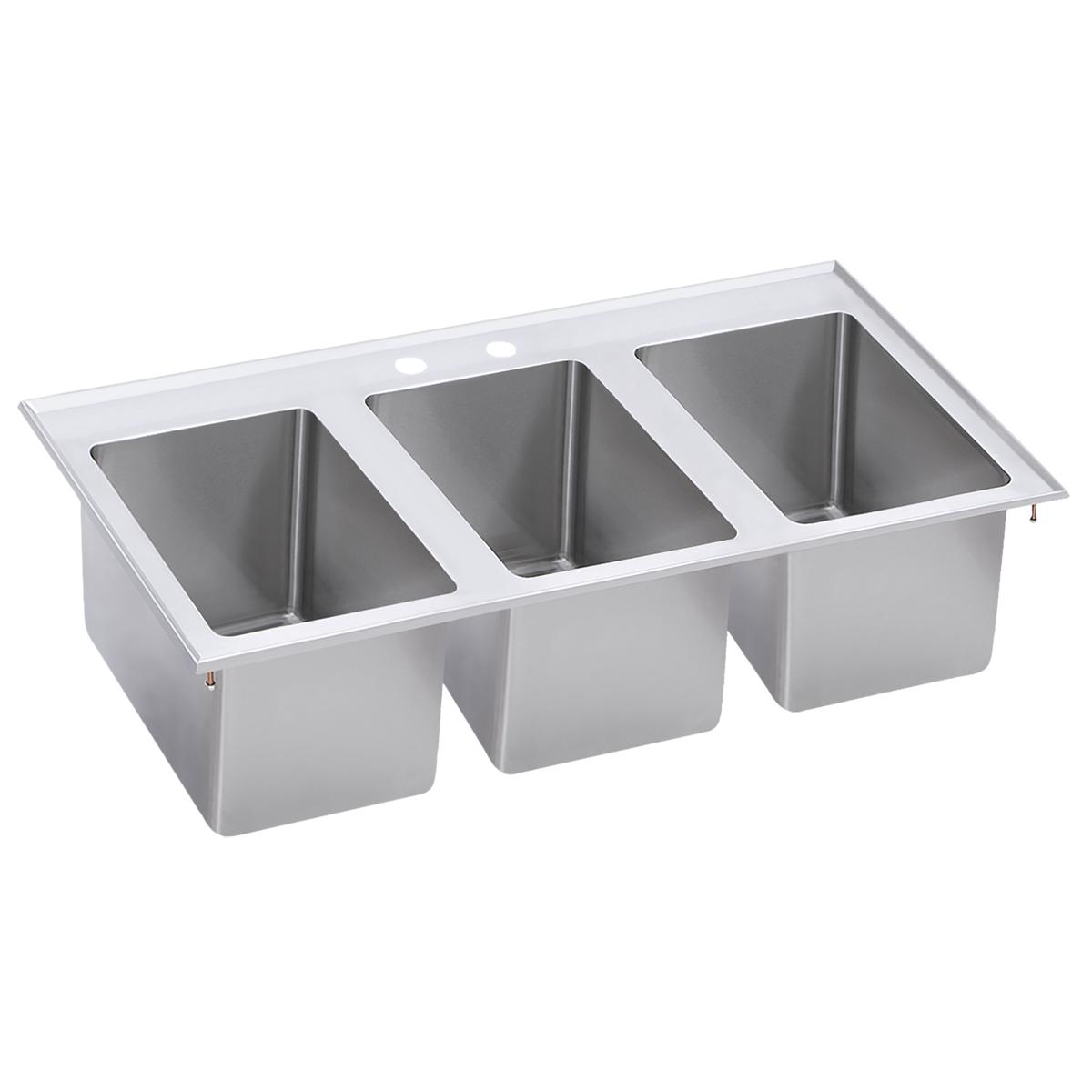

The Elkay DI-3C-101410X is a Stainless Steel 37" x 19" x 10" 18 Gauge Three Drop-In Compartment Sink. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- High quality 18 gauge, type 3 series stainless steel.
- One set of 8" on center faucet holes, deck mounted.
- 3-1/2" drain opening.
- NSF certified.
- Kit includes faucet and strainer; save the time and cost of having to purchase each item separately.
Common Questions
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 2.
- What is included in the kit?
- This kit includes: Faucet LK406AT10L2 and strainer.
Specifications

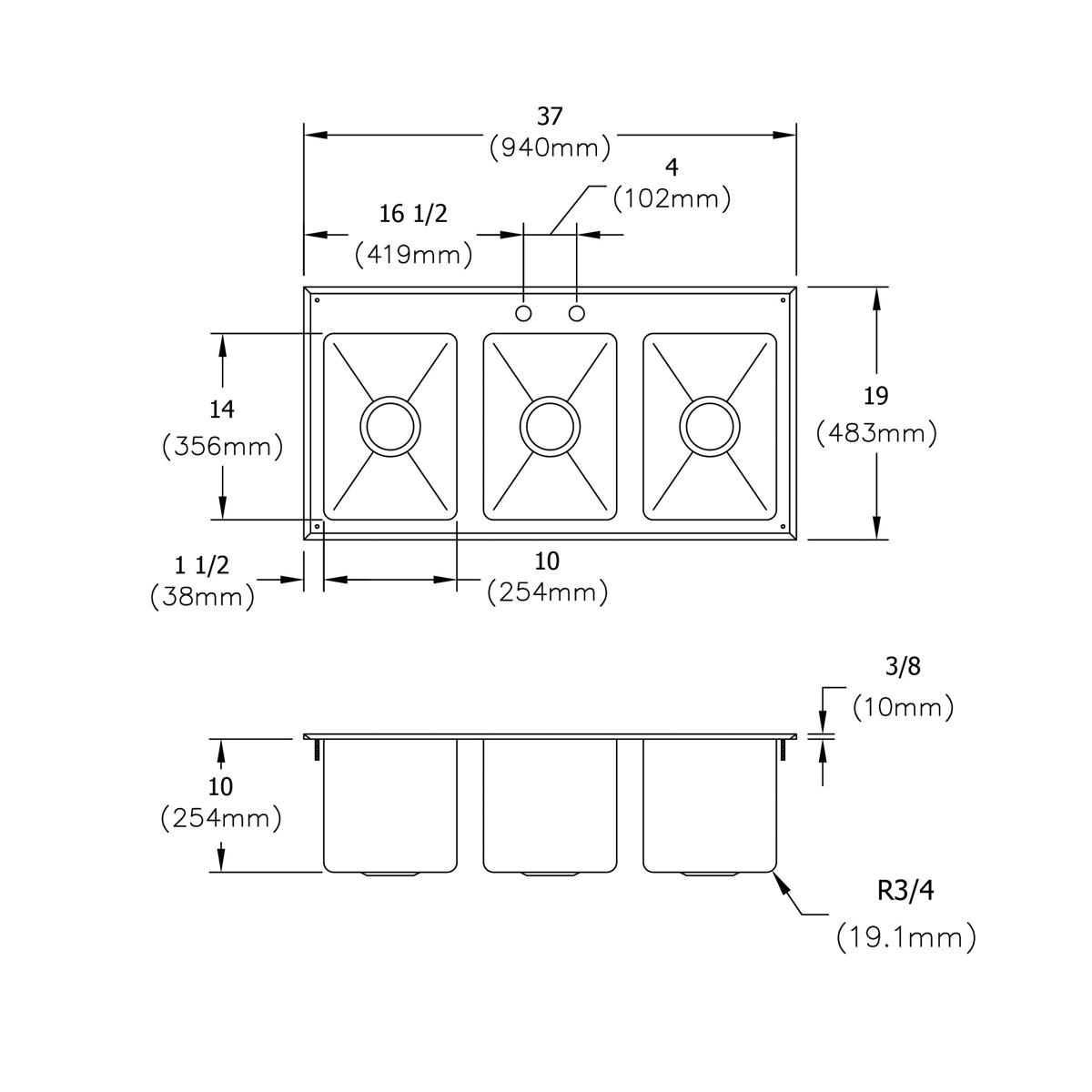

- Type: Stainless Steel 37" x 19" x 10" 18 Gauge Three Drop-In Compartment Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: China
- MPN: DI-3C-101410X
- Certifications: ASME A112.19.3/CSA B45.4, NSF-2
- Number of Bowls: 3
- Bowl Dimensions: 10" x 14" x 10";10" x 14" x 10";10" x 14" x 10"
- Drain Location: Center
- Gauge: 18
- Mounting Hardware: Included
- Mount Type: Drop-In
- Coating / Finish: #4 Finish
- Faucet Holes: 2
- Overall Length (in): 37.0
- Overall Width (in): 19.0
- Overall Height (in): 10.0
- Kit Includes: Faucet LK406AT10L2 and strainer
Product Information
| SKU | UPC | Country of Origin | Spec Sheet |
|---|---|---|---|
| DI-3C-101410X | 094902733012 | China | Download |
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | DI-3C-101410X | Device Type | Stainless Steel 37" x 19" x 10" 18 Gauge Three Drop-In Compartment Sink |
| Body Material | Stainless Steel | Contents | Faucet LK406AT10L2 and strainer |
| Coating | #4 Finish | Hole count | 2 |
| Mount type | Drop-In | Overall height in | 10.0 in |
| Overall length in | 37.0 in | Overall width in | 19.0 in |
| Bowl count | 3 | Bowl dimensions | 10" x 14" x 10", 10" x 14" x 10", 10" x 14" x 10" |
| Drain location | Center | Gauge | 18 |
| Mounting hardware | Included | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-2 |
Compare with similar products
| Contents | Faucet LK406AT10L2 and strainer
| Stainless steel legs and adjustable bullet feet.
| Faucet and strainer.
| Stainless steel legs and adjustable bullet feet.
| Faucet.
| Stainless steel legs and adjustable bullet feet.
|
| Series | DI-3C-101410X
| B1C18X18X
| DI10126X
| SE1C18X18-R-18X
| SEHS-17X
| SE1C18X18-L-18X
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Spec Sheet | ||||||
| Device Type | Stainless Steel 37" x 19" x 10" 18 Gauge Three Drop-In Compartment Sink
| Dependabilt Stainless Steel 21" x 21-1/2" x 42" 18 Gauge One Compartment Budget Sink with Stainless Steel Legs
| Stainless Steel 13" x 17" x 6" 18 Gauge One Compartment Drop-In Sink
| Dependabilt Stainless Steel 38-1/2" x 23-13/16" x 43-3/4" 18 Gauge One Compartment Sink w/ 18" Right Drainboard and Stainless Steel Legs
| Stainless Steel 17" x 15" x 11" 20 Gauge Hand Sink with Faucet
| Dependabilt Stainless Steel 38-1/2" x 23-13/16" x 43-3/4" 18 Gauge One Compartment Sink w/ 18" Left Drainboard and Stainless Steel Legs
|
| Outlet Size | 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 1-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4, NSF-2, ADA
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
|
