Specifications
Description

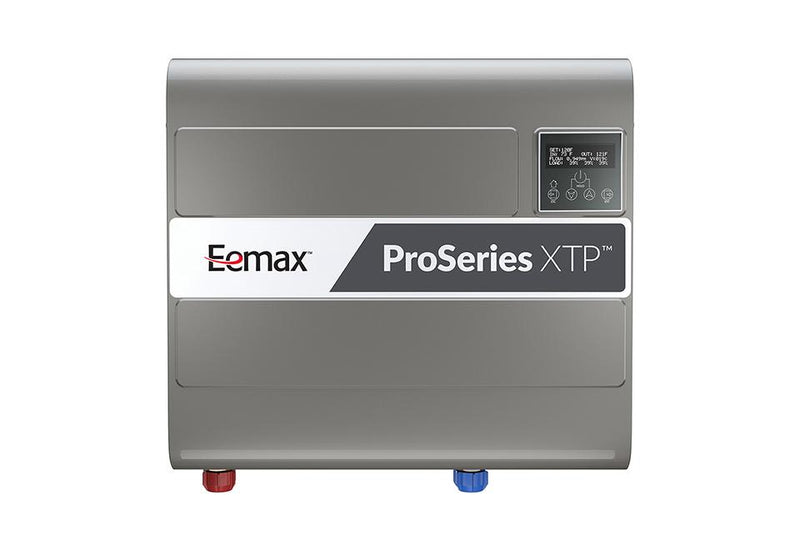

The Eemax XTP020480 is a 20 kW, 480V, three phase electric tankless water heater from the ProSeries XTP line.
Thermostatic heater for commercial and industrial applications
Features
- Adaptive Stability Technology delivers a reliable output
- Includes wall mounting bracket allowing for flexible installation
Common Questions
- What electrical service does it need?
- It needs a 480V three phase supply and draws 24 A per phase; Eemax recommends 10 AWG wire. Size the circuit to local code.
- What flow turns the heater on?
- The elements switch on at 0.5 GPM. Below that flow, water passes through unheated, so match it to the fixture's aerator or flow restrictor.
- What water temperature does it deliver?
- It delivers outlet water, 60°F to 180°F, per Eemax's model data.
- How long does it take to ship?
- Eemax states a lead time of about 10 business days from order.
Specifications
- Country of Origin: China
- MPN: XTP020480
- Power (W): 20000
- Voltage: 480V
- Phase: Three Phase
- Amperage (A; per phase on three-phase): 24
- Recommended Wire Size: 10 AWG
- Application: General Purpose
- Temperature Control: Thermostatic
- Activation Flow (GPM): 0.5
- Max Flow (GPM): 20.0
- Min Outlet Temperature (°F): 60
- Max Outlet Temperature (°F): 180
- Min Operating Pressure (psi): 35
- Max Operating Pressure (psi): 150
- Height (in): 18
- Width (in): 20
- Depth (in): 5
- Temperature Rise: 137F @ 1.0 GPM 68F @ 2.0 GPM 46F @ 3.0 GPM 34F @ 4.0 GPM 27F @ 5.0 GPM 23F @ 6.0 GPM 20F @ 7.0 GPM 17F @ 8.0 GPM 15F @ 9.0 GPM 14F @ 10.0 GPM
- Lead Time (business days): 10
Product Information
Details
| Series | ProSeries XTP | Outlet Temp Min °F | 60.0 °F |
| Outlet Temp Max °F | 180.0 °F | Applications | General Purpose |
| Electrical phase | Three Phase | Electrical requirement | 480V |
| Flow rate gpm | 20.0 GPM | Full load amps | 24.0 |
| Lead time days | 10 | Operating pressure max psi | 150.0 PSI |
| Operating pressure min psi | 35 PSI | Overall height in | 18.0 in |
| Overall length in | 20.0 in | Overall width in | 5.0 in |
| Rated watts | 20000 | — | — |
Compare with similar products
| Outlet Temp Min °F | 60.0 °F | 70.0 °F | 60.0 °F |
| Outlet Temp Max °F | 180.0 °F | 140.0 °F | 180.0 °F |
| Applications | General Purpose
| De-Ionized Water
| General Purpose
|
| Series | ProSeries XTP
| De-Ionized
| ProSeries XTP
|
| Country Of Origin | China
| United States
| China
|
| Spec Sheet | |||
| Install Sheet | — | ||
| End Connection | — | Compression
| NPT
|
