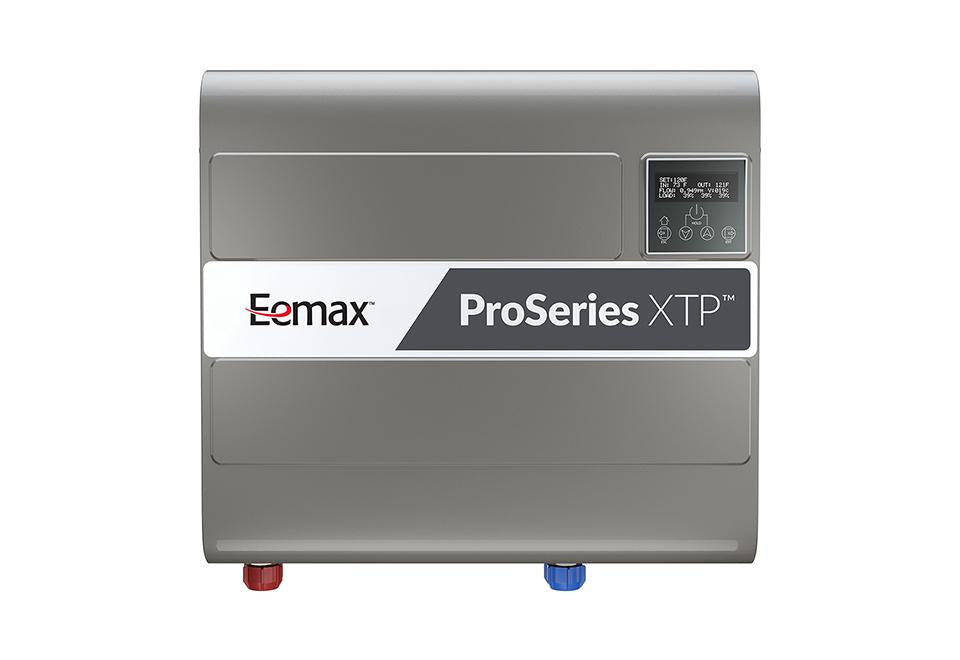

Eemax ProSeries XTP XTP018208 18kW 208V Thermostatic Tankless Water Heater

The Eemax XTP018208 is a 18 kW, 208V, three phase electric tankless water heater from the ProSeries XTP line.

Thermostatic heater for commercial and industrial applications

Features

• Adaptive Stability Technology delivers a reliable output
• Includes wall mounting bracket allowing for flexible installation

Common Questions

What electrical service does it need?

It needs a 208V three phase supply and draws 50 A per phase; Eemax recommends 8 AWG wire. Size the circuit to local code.

What flow turns the heater on?

The elements switch on at 0.5 GPM. Below that flow, water passes through unheated, so match it to the fixture's aerator or flow restrictor.

What water temperature does it deliver?

It delivers outlet water, 60°F to 180°F, per Eemax's model data.

How long does it take to ship?

Eemax states a lead time of about 10 business days from order.

Specifications

• Connection: NPT
• Country of Origin: China
• MPN: XTP018208
• Power (W): 18000
• Voltage: 208V
• Phase: Three Phase
• Amperage (A; per phase on three-phase): 50
• Recommended Wire Size: 8 AWG
• Application: General Purpose
• Temperature Control: Thermostatic
• Activation Flow (GPM): 0.5
• Max Flow (GPM): 20.0
• Min Outlet Temperature (°F): 60
• Max Outlet Temperature (°F): 180
• Min Operating Pressure (psi): 35
• Max Operating Pressure (psi): 150
• Height (in): 18
• Width (in): 20
• Depth (in): 5
• Temperature Rise: 123F @ 1.0 GPM 60F @ 2.0 GPM 40F @ 3.0 GPM 30F @ 4.0 GPM 24F @ 5.0 GPM 20F @ 6.0 GPM 17F @ 7.0 GPM 15F @ 8.0 GPM 13F @ 9.0 GPM 12F @ 10.0 GPM
• Lead Time (business days): 10
