Specifications
Description

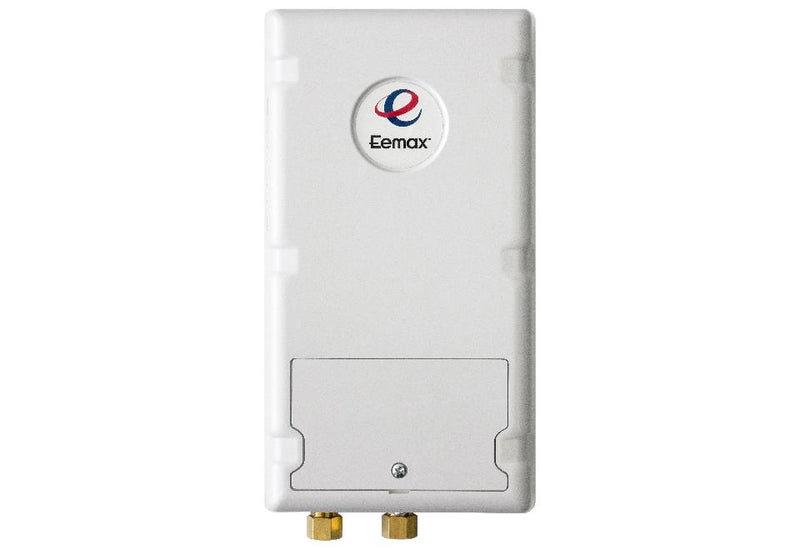

The Eemax SPEX3012T is a 3 kW, 120V, single phase electric tankless water heater from the LavAdvantage line, configured for handwashing. This model is certified lead-free for potable-water installations.
3kW 120V Electric Tankless Water Heater
Features
- Thermostatic heater ideal for fixed or variable flow applications
- Low flow activation with 0.2 GPM turn on flow rate
- Mounts in any orientation for a flexible installation
Common Questions
- What electrical service does it need?
- It needs a 120V single phase supply and draws 25 A, on 1 x 25A breaker circuits; Eemax recommends 12 AWG wire. Size the circuit to local code.
- What flow turns the heater on?
- The elements switch on at 0.2 GPM. Below that flow, water passes through unheated, so match it to the fixture's aerator or flow restrictor.
- What water temperature does it deliver?
- It delivers outlet water, 70°F to 140°F, per Eemax's model data.
- How long does it take to ship?
- Eemax states a lead time of about 5 business days from order.
Specifications
- Water Connection: 3/8"
- Connection: Compression
- Country of Origin: United States
- Warranty: 5-year limited on leaks, 1-year on parts
- MPN: SPEX3012T
- Certifications: UL, C-UL
- Lead-Free: Yes
- Power (W): 3000
- Voltage: 120V
- Phase: Single Phase
- Amperage (A; per phase on three-phase): 25
- Circuits x Breaker: 1 x 25A
- Recommended Wire Size: 12 AWG
- Application: Handwashing
- Temperature Control: Thermostatic
- Activation Flow (GPM): 0.2
- Min Outlet Temperature (°F): 70
- Max Outlet Temperature (°F): 140
- Min Operating Pressure (psi): 35
- Max Operating Pressure (psi): 150
- Height (in): 9
- Width (in): 5
- Depth (in): 3
- Temperature Rise: 59F @ 0.35 GPM 41F @ 0.5 GPM 20F @ 1.0 GPM 10F @ 2.0 GPM
- Lead Time (business days): 5
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | Compression |
Details
| Series | LavAdvantage | Lead Free | Yes |
| Outlet Temp Min °F | 70.0 °F | Outlet Temp Max °F | 140.0 °F |
| Applications | Handwashing | Electrical phase | Single Phase |
| Electrical requirement | 120V | Full load amps | 25.0 |
| Lead time days | 5 | Operating pressure max psi | 150.0 PSI |
| Operating pressure min psi | 35 PSI | Overall height in | 9.0 in |
| Overall length in | 5.0 in | Overall width in | 3.0 in |
| Rated watts | 3000 | — | — |
Certifications & Standards
| UL | C-UL |
