Specifications
Description

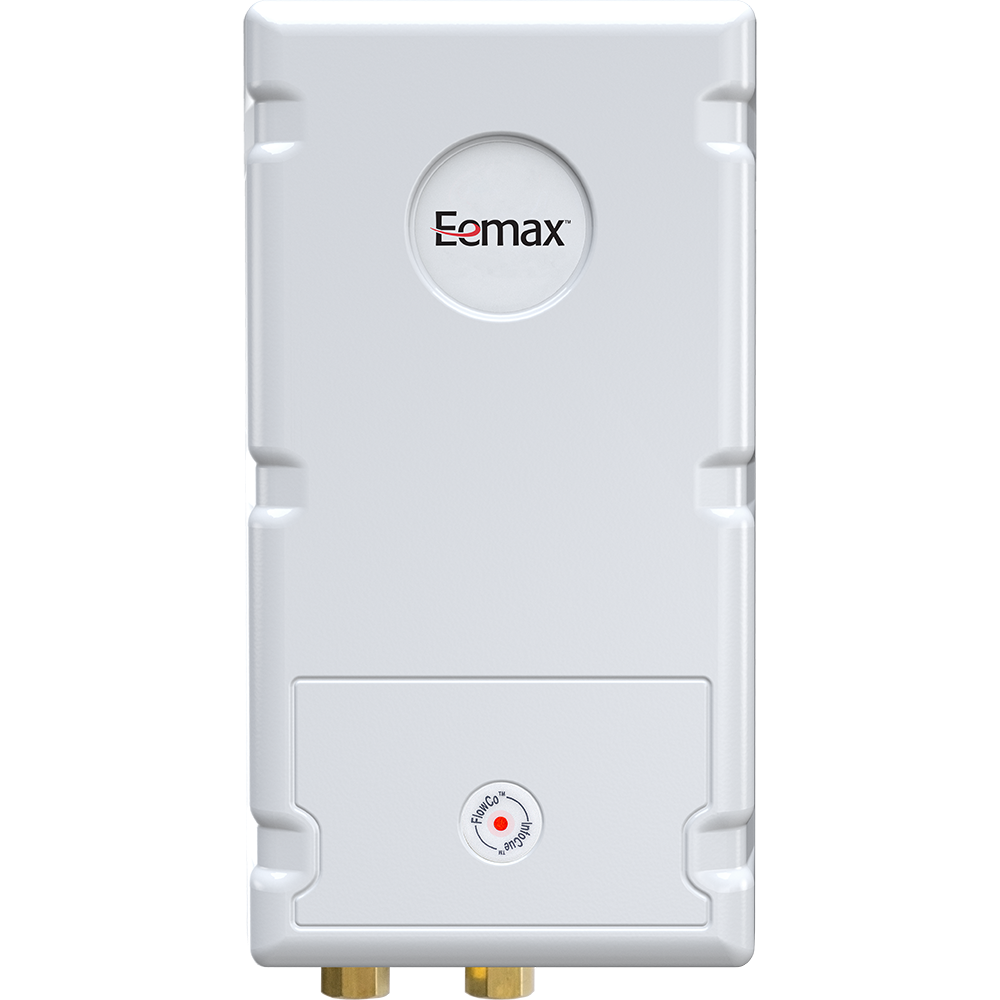

The Eemax SPEX4208 is a 4.1 kW, 208V, single phase electric tankless water heater from the FlowCo line, configured for handwashing. This model is certified lead-free for potable-water installations.
4.1kW 208V Electric Tankless Water Heater
Features
- Non-thermostatic heater ideal for fixed-flow applications
- InfoCue™ indicator communicates system information
- Mounts in any orientation for a flexible installation
Common Questions
- What electrical service does it need?
- It needs a 208V single phase supply and draws 20 A, on 1 x 20A breaker circuits; Eemax recommends 14 AWG wire. Size the circuit to local code.
- What flow turns the heater on?
- The elements switch on at 0.4 GPM. Below that flow, water passes through unheated, so match it to the fixture's aerator or flow restrictor.
- How long does it take to ship?
- Eemax states a lead time of about 5 business days from order.
Specifications
- Water Connection: 3/8"
- Connection: Compression
- Country of Origin: United States
- Warranty: 5-year limited on leaks, 1-year on parts
- MPN: SPEX4208
- Certifications: UL
- Lead-Free: Yes
- Power (W): 4100
- Voltage: 208V
- Phase: Single Phase
- Amperage (A; per phase on three-phase): 20
- Circuits x Breaker: 1 x 20A
- Recommended Wire Size: 14 AWG
- Application: Handwashing
- Temperature Control: Non-Thermostatic
- Activation Flow (GPM): 0.4
- Max Operating Pressure (psi): 150
- Height (in): 10
- Width (in): 5
- Depth (in): 3
- Temperature Rise: 56F @ 0.5 GPM 37F @ 0.75 GPM 28F @ 1.0 GPM 19F @ 1.5 GPM 14F @ 2.0 GPM
- Lead Time (business days): 5
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | Compression |
Details
| Series | FlowCo | Lead Free | Yes |
| Applications | Handwashing | Electrical phase | Single Phase |
| Electrical requirement | 208V | Full load amps | 20.0 |
| Lead time days | 5 | Operating pressure max psi | 150.0 PSI |
| Overall height in | 10.0 in | Overall length in | 5.0 in |
| Overall width in | 3.0 in | Rated watts | 4100 |
Certifications & Standards
| UL | — |
Compare with similar products
| Applications | Handwashing
| Handwashing
| Handwashing
| Handwashing
| Handwashing
| Multi-Lavatory
|
| Series | FlowCo
| FlowCo
| FlowCo
| FlowCo
| FlowCo
| LavAdvantage
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
| 5-year limited on leaks, 1-year on parts
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Size Nominal | 3/8"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Compression
| Compression
| Compression
| Compression
| Compression
| Compression
|
| Certifications | UL
| UL
| UL
| UL
| UL
| UL, C-UL
|
