Specifications
Description

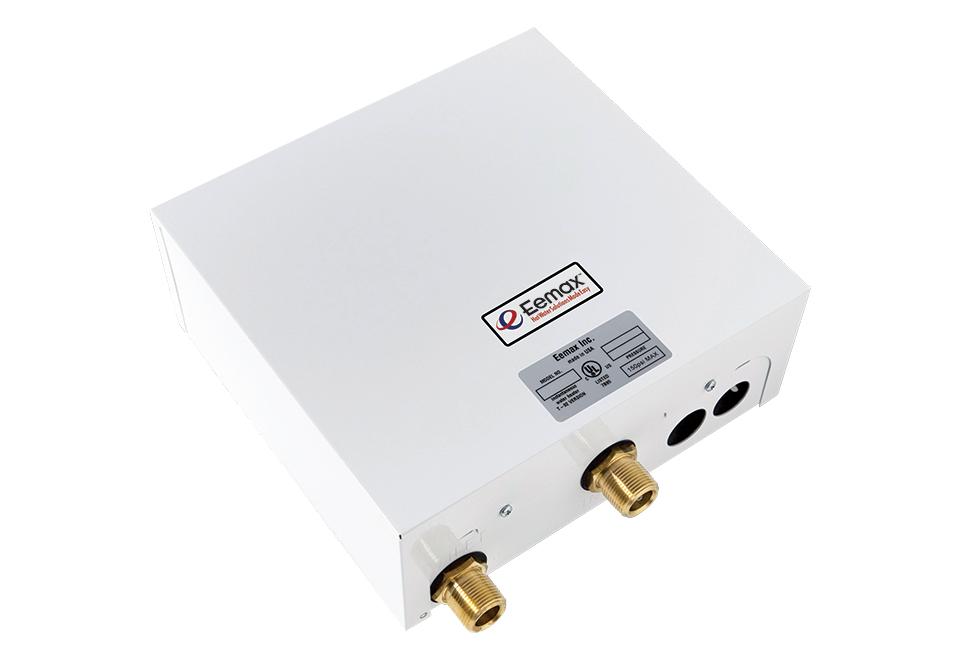

The Eemax EX1608T2 S is a 16.6 kW, 208V, single phase electric tankless water heater from the Series Two line, configured for sanitation. This model is certified lead-free for potable-water installations.
16.6kW 208V Electric Tankless Water Heater
Features
- Thermostatic heater for commercial applications
- On-demand, consistent, and endless hot water
- Easy installation with integral 3/4" NPT fittings
Common Questions
- What electrical service does it need?
- It needs a 208V single phase supply and draws 80 A; Eemax recommends 8 AWG wire. Size the circuit to local code.
- What flow turns the heater on?
- The elements switch on at 1.5 GPM. Below that flow, water passes through unheated, so match it to the fixture's aerator or flow restrictor.
- What water temperature does it deliver?
- It delivers outlet water, up to 180°F, per Eemax's model data.
- How long does it take to ship?
- Eemax states a lead time of about 5 business days from order.
Specifications
- Water Connection: 3/4"
- Connection: NPT
- Country of Origin: United States
- MPN: EX1608T2 S
- Lead-Free: Yes
- Power (W): 16600
- Voltage: 208V
- Phase: Single Phase
- Amperage (A; per phase on three-phase): 80
- Recommended Wire Size: 8 AWG
- Application: Sanitation
- Temperature Control: Thermostatic
- Activation Flow (GPM): 1.5
- Max Outlet Temperature (°F): 180
- Min Operating Pressure (psi): 35
- Max Operating Pressure (psi): 150
- Height (in): 10
- Width (in): 10
- Depth (in): 4
- Lead Time (business days): 5
Product Information
Dimensions
| Size Nominal | 3/4" | End Connection | NPT |
Details
| Series | Series Two | Lead Free | Yes |
| Outlet Temp Max °F | 180.0 °F | Applications | Sanitation |
| Electrical phase | Single Phase | Electrical requirement | 208V |
| Full load amps | 80.0 | Lead time days | 5 |
| Operating pressure max psi | 150.0 PSI | Operating pressure min psi | 35 PSI |
| Overall height in | 10.0 in | Overall length in | 10.0 in |
| Overall width in | 4.0 in | Rated watts | 16600 |
Compare with similar products
| Outlet Temp Max °F | 180.0 °F | 140.0 °F | 180.0 °F | 140.0 °F | 140.0 °F | 180.0 °F |
| Applications | Sanitation
| General Purpose
| General Purpose
| De-Ionized Water
| De-Ionized Water
| Sanitation
|
| Series | Series Two
| Series Three
| ProSeries XTP
| De-Ionized
| De-Ionized
| Three Phase
|
| Country Of Origin | United States
| United States
| China
| United States
| United States
| United States
|
| Warranty | — | 5-year limited on leaks, 1-year on parts
| — | — | — | 5-year limited on leaks, 1-year on parts
|
| Spec Sheet | ||||||
| Install Sheet | — | — | ||||
| Size Nominal | 3/4"
| 3/4"
| — | — | — | 1/2"
|
| Lead Free | Yes | Yes | — | Yes | Yes | Yes |
| End Connection | NPT
| NPT
| NPT
| Compression
| NPT
| Compression
|
| Certifications | — | UL, C-UL
| — | — | — | C-UL
|
