Chicago Faucets LWV2-C63-40 Laboratory Water Valve, Overhead

The Chicago Faucets LWV2-C63-40 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

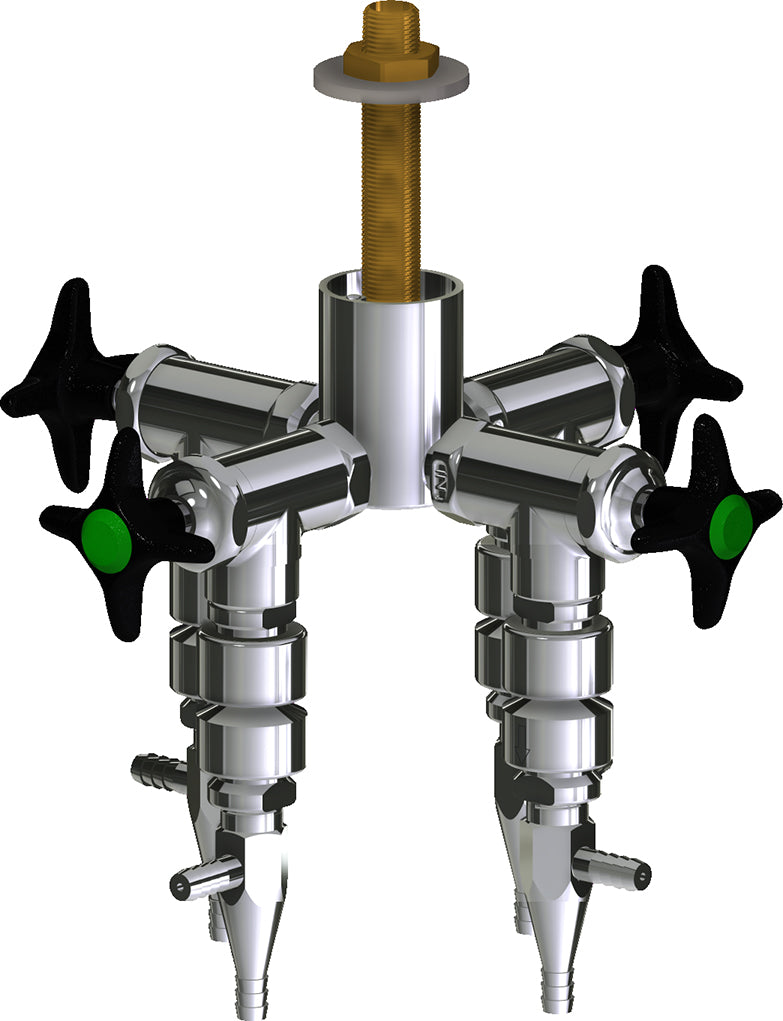

Chicago Faucets No. LWV2-C63-40 Deck-mounted laboratory turret with water valve, polished chrome finish. Straight serrated nozzle with aspirator and vacuum breaker. Slow compression Control-A-Flo operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'CW'. Inline vacuum breaker with dual checks.

Features

• Straight serrated nozzle with aspirator and vacuum breaker
• Vandal Proof 2-1/2" Black cross handle with button indexed 'CW'
• Slow compression Control-A-Flo™ operating cartridge, left-hand
• Inline vacuum breaker with dual checks
• Complies with the requirements of the Buy American Act of 1933.
• Includes: 205-CWJKNF
• Includes: 217-X245LJKABNF
• Includes: SP3524KJKABCP

Common Questions

Does this have backflow protection?

Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

• Type: Deck-mounted laboratory turret with water valve
• Connection: NPT
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LWV2-C63-40
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Outlet Configuration: Four-Outlet
• Shank: Not Applicable
• Body Pattern: Angle
• Mount Type: Overhead
• Handle Style: Plastic Cross
• Handle Index: Cold
• Outlet Type: Aspirator Nozzle
• Cartridge Type: Quaturn Compression
• Mixing Valve: No Mixing Valve
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 125
• Backflow Device: Atmospheric Vacuum Breaker
• Lead Time (days): 15
