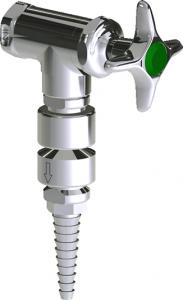

Chicago Faucets LWV2-B41 Laboratory Water Valve

SKU: LWV2-B41
Price:
Sale price$253.28 Regular price$350.25
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $253.28

Free shipping over $200

Key Features

Outlet Serrated Hose Nozzle
Cartridge Ceramic 1/4-Turn
Handle Style Metal Cross
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWV2-B41 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWV2-B41 Single water valve for wall or turret mount, polished chrome finish. Straight serrated nozzle with vacuum breaker. Ceramic quarter-turn operating cartridge, left-hand turn. 2-1/2" cross handle with button indexed 'CW'. Inline vacuum breaker with dual checks.

Features

  • Straight serrated nozzle with vacuum breaker
  • Vandal Proof 2-1/2" Chrome cross handle with button indexed
  • 'CW'
  • Ceramic 1/4-turn operating cartridge, left-hand
  • Inline vacuum breaker with dual checks
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: 204-CWJKCP
  • Includes: 1-100XKJKABNF
  • Includes: SP3524KJKABCP

Common Questions

Does this have backflow protection?
Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Single water valve for wall or turret mount
  • Connection: NPT
  • Body Material: Brass
  • Application: Domestic Water
  • Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
  • MPN: LWV2-B41
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1
  • Service Medium: Water
  • Body Pattern: Angle
  • Handle Style: Metal Cross
  • Handle Index: Cold
  • Outlet Type: Serrated Hose Nozzle
  • Cartridge Type: Ceramic 1/4-Turn
  • Mixing Valve: No Mixing Valve
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 125
  • Backflow Device: Atmospheric Vacuum Breaker
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWV2-B41 611943104597 Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical DownloadDownload

Dimensions

End Connection NPT ——

Details

Series LWV2 Device Type Single water valve for wall or turret mount
Body Material Brass Application Domestic Water
Max Temp °F 140.0 °F Options 204-CWJKCP, 1-100XKJKABNF, SP3524KJKABCP
Min Temp °F 40.0 °F Baa USA
Backflow device Atmospheric Vacuum Breaker Body pattern Angle
Coating Polished Chrome Handle style Metal Cross
Lead time days 15 Operating pressure max psi 125.0 PSI
Prop65 Yes Cartridge type Ceramic 1/4-Turn
Handle index Cold Mixing valve No Mixing Valve
Outlet type Serrated Hose Nozzle Media Water

Certifications & Standards

ASME A112.18.1/CSA B125.1 —

Compare with similar products

Series
LWV2
LWV2
LWV4
LWV4
LWV4
LWV4
Warranty
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
Spec Sheet
Install Sheet
Device Type
Single water valve for wall or turret mount
Single water valve for wall or turret mount
Wall-mounted hose bibb water faucet with flange
Wall-mounted hose bibb water faucet with flange
Wall-mounted hose bibb water faucet with flange
Wall-mounted hose bibb water faucet with flange
End Connection
NPT
NPT
NPT
NPT
NPT
NPT
Body Material
Brass
Brass
Brass
Brass
Brass
Brass
Application
Domestic Water
Domestic Water
Domestic Water
Domestic Water
Domestic Water
Domestic Water
Max Temp °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
Certifications
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
Options
204-CWJKCP, 1-100XKJKABNF, SP3524KJKABCP
E17JKRCF, 205-HWJKNF, 217-X245LJKABNF
205-HWJKNF, 217-X245LJKABNF, E22JKCP
205-CWJKNF, 217-X245LJKABNF, E22JKCP
204-HWJKCP, 217-X245LJKABNF, E22JKCP
204-CWJKCP, 217-X245LJKABNF, E22JKCP
Min Temp °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
