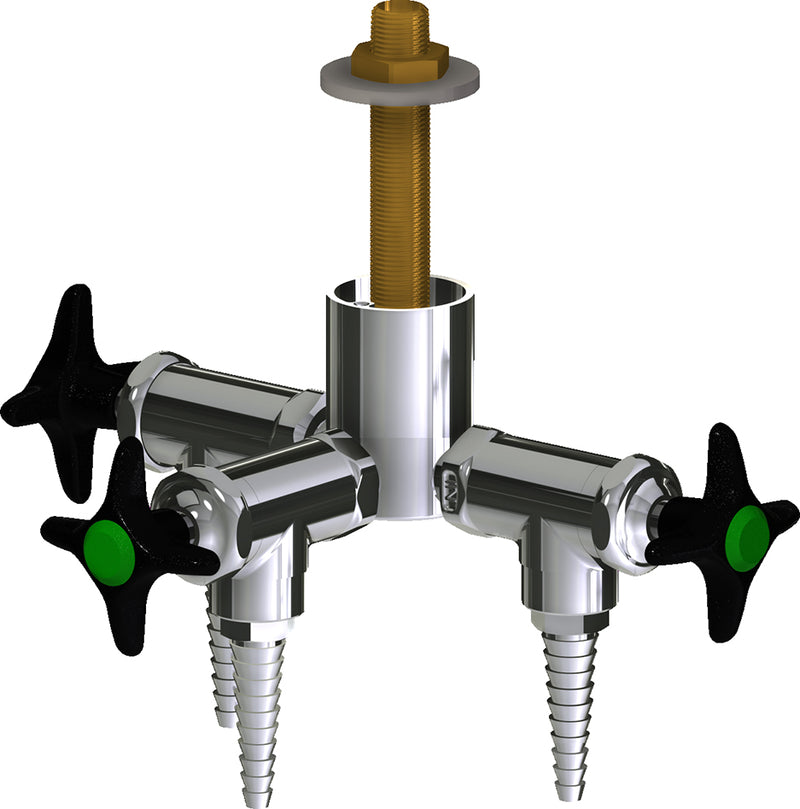

Chicago Faucets LWV2-B13-30 Laboratory Water Valve, Overhead

The Chicago Faucets LWV2-B13-30 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWV2-B13-30 Deck-mounted laboratory turret with water valve, polished chrome finish. Laboratory nozzle with 10 serrations for laboratory hose. Ceramic quarter-turn operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'CW'.

Features

• Laboratory nozzle with 10 serrations for laboratory hose
• Vandal Proof 2-1/2" Black cross handle with button indexed 'CW'
• Ceramic 1/4-turn operating cartridge, left-hand
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E7JKCP
• Includes: 205-CWJKNF
• Includes: 1-100XKJKABNF

Specifications

• Type: Deck-mounted laboratory turret with water valve
• Connection: NPT
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LWV2-B13-30
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Outlet Configuration: Three-Outlet
• Shank: Not Applicable
• Body Pattern: Angle
• Mount Type: Overhead
• Handle Style: Plastic Cross
• Handle Index: Cold
• Outlet Type: Serrated Hose Nozzle
• Cartridge Type: Ceramic 1/4-Turn
• Mixing Valve: No Mixing Valve
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 125
• Lead Time (days): 15
