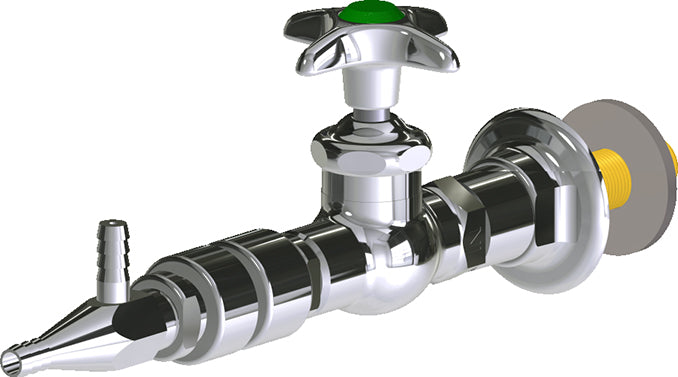

Chicago Faucets LWV1-A61-55 Laboratory Water Valve, Wall-Mount

SKU: LWV1-A61-55
Price:
Sale price$308.96 Regular price$427.25
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $308.96

Free shipping over $200

Key Features

Outlet Aspirator Nozzle
Cartridge Compression
Handle Style Metal Cross
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWV1-A61-55 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWV1-A61-55 Wall-mounted water valve with flange, polished chrome finish. Straight serrated nozzle with aspirator and vacuum breaker. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle with button indexed 'CW'. Inline vacuum breaker with dual checks.

Features

  • Straight serrated nozzle with aspirator and vacuum breaker
  • Vandal Proof 2-1/2" Chrome cross handle with button indexed
  • 'CW'
  • Slow compression operating cartridge, left-hand
  • Inline vacuum breaker with dual checks
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: 204-CWJKCP
  • Includes: 217-XTLHJKABNF
  • Includes: SP3524KJKABCP

Common Questions

Does this ship with the mounting shank?
Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
Does this have backflow protection?
Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Wall-mounted water valve with flange
  • Connection: NPT
  • Body Material: Brass
  • Application: Domestic Water
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
  • MPN: LWV1-A61-55
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1
  • Service Medium: Water
  • Outlet Configuration: Single
  • Shank: Included
  • Body Pattern: Straight
  • Mount Type: Wall-Mount
  • Handle Style: Metal Cross
  • Handle Index: Cold
  • Outlet Type: Aspirator Nozzle
  • Cartridge Type: Compression
  • Mixing Valve: No Mixing Valve
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 125
  • Backflow Device: Atmospheric Vacuum Breaker
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWV1-A61-55 611943095284 Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical DownloadDownload

Dimensions

End Connection NPT ——

Details

Series LWV1 Device Type Wall-mounted water valve with flange
Body Material Brass Application Domestic Water
Max Temp °F 140.0 °F Options 204-CWJKCP, 217-XTLHJKABNF, SP3524KJKABCP
Min Temp °F 40.0 °F Baa USA
Backflow device Atmospheric Vacuum Breaker Body pattern Straight
Coating Polished Chrome Handle style Metal Cross
Lead time days 15 Mount type Wall-Mount
Operating pressure max psi 125.0 PSI Prop65 Yes
Cartridge type Compression Handle index Cold
Mixing valve No Mixing Valve Outlet type Aspirator Nozzle
Media Water Outlet config Single
Shank type Included ——

Certifications & Standards

ASME A112.18.1/CSA B125.1 —
